Troubleshooting Waveforms: FLASH CONTROL 6-31
6.12.3 OE

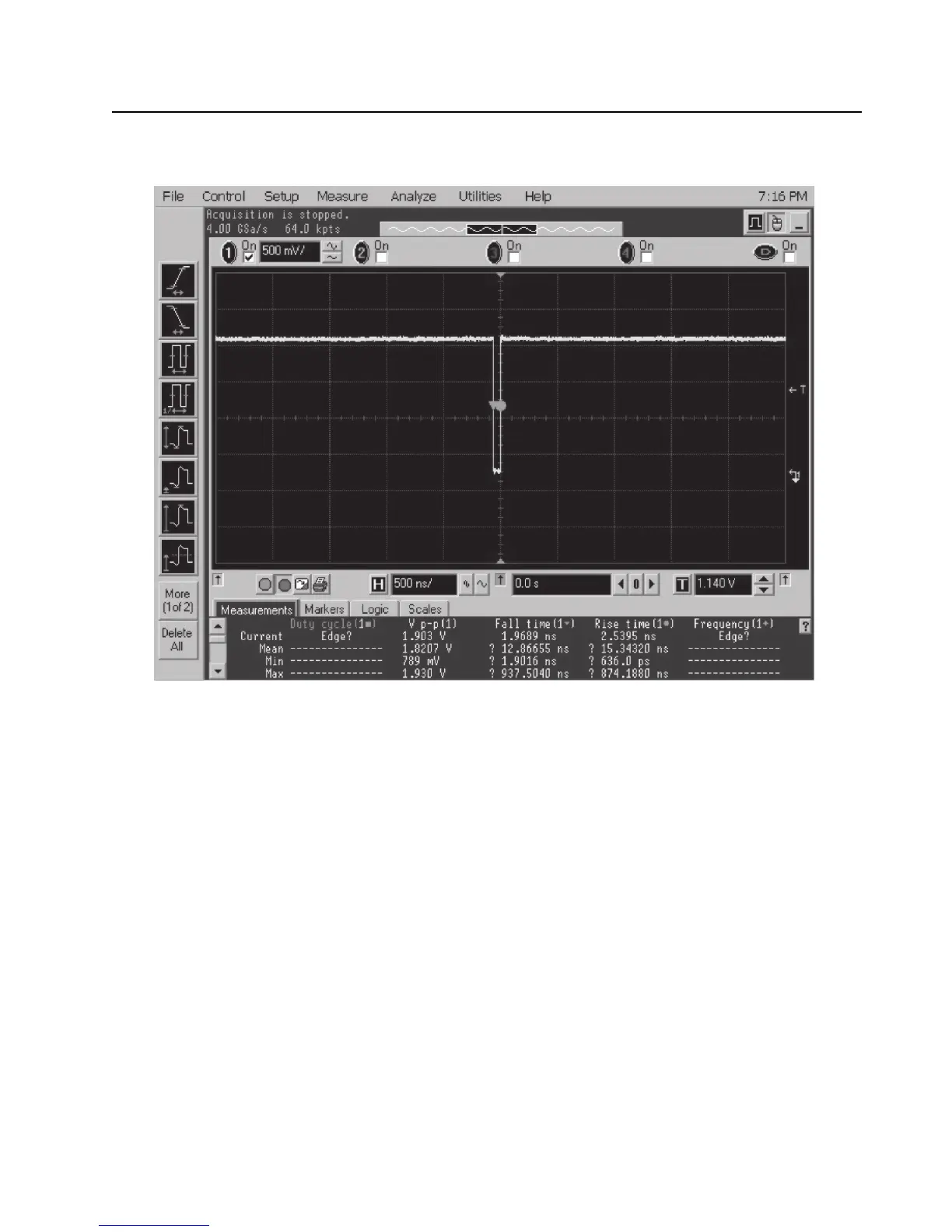

Trace 1: Trace recorded at R6312.
Figure 6-30. FLASH CONTROL – OE Waveform
