6-44 Troubleshooting Waveforms: Bluetooth Troubleshooting Waveforms
6.15.5 Bluetooth Startup: Timing Difference of TP4 to TP16 and Time Statistics

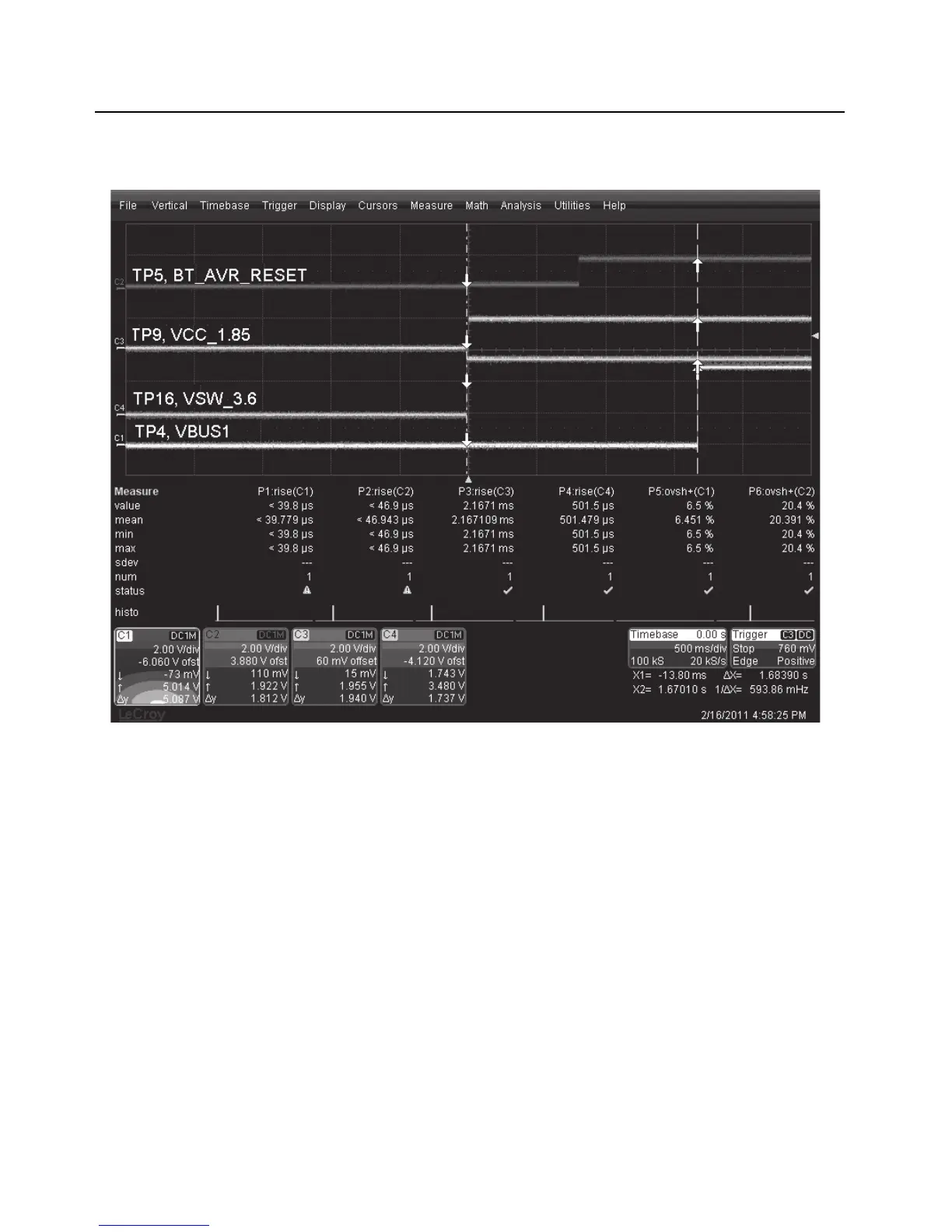

Figure 6-41. Startup – Timing Difference of TP4 to TP16 and Time Statistics
