Motorola APX 3000 Detailed Service Manual
4
of 1
of 1 rating
474 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Schematics, Boards Over
lays, and Parts Lists
: Main Board Block: 700–800 MHz (84012501002)
8-73

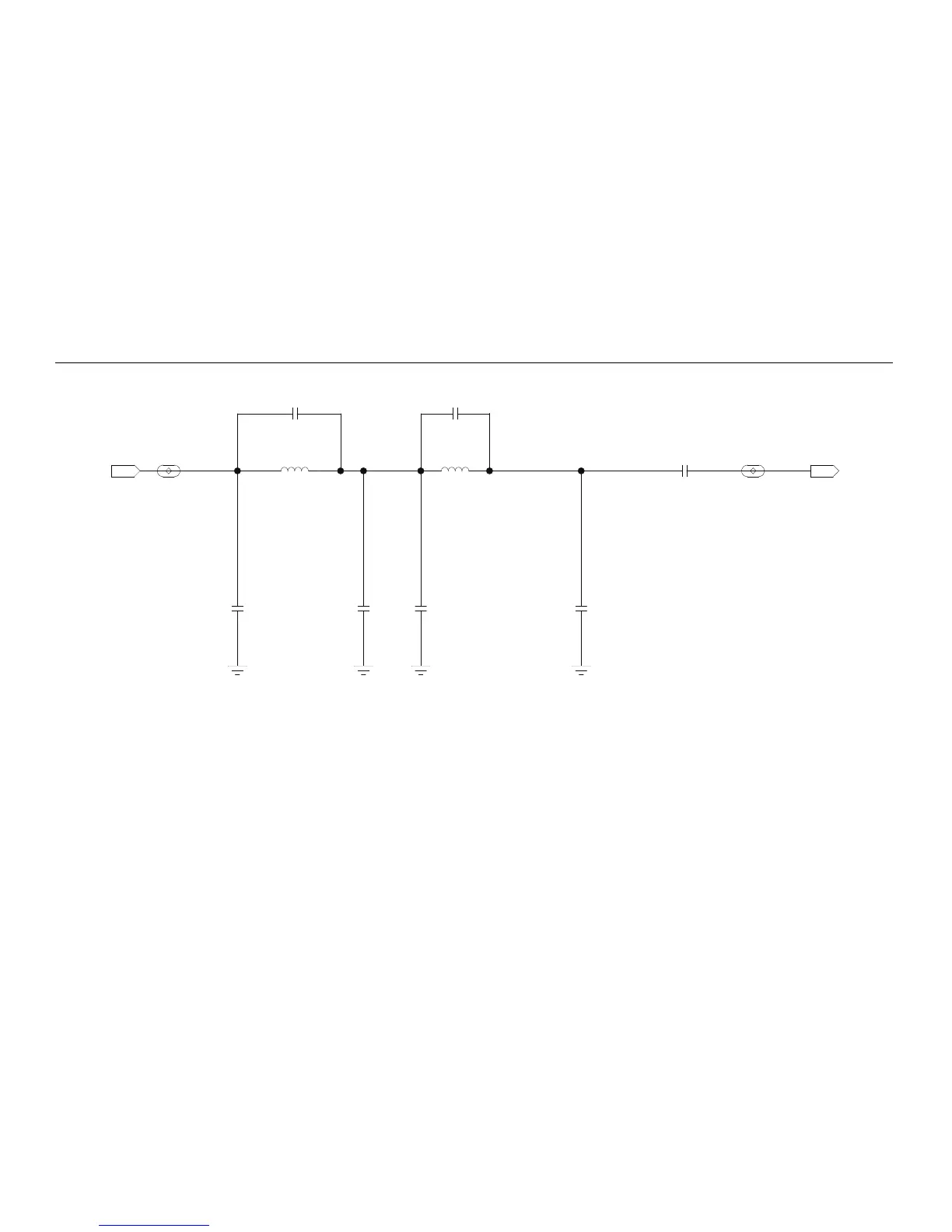

Figure 8-44. T
ransmitter HF Circuit
IF
IF1401
RF_OUT_2
1
IN
.5PF
8.1NH
L1408
C1414
8.1NH
.5PF
C1424
L1410
IF
33PF
C1411
IF1402
HF_OUT_2
TL4
1
OUT
1.2PF
1.8PF
1.5PF
3.3PF
C1413
C1418
C1419
C1425
294
296
