Motorola DCX3400 Series User Manual

B
Rear Panel

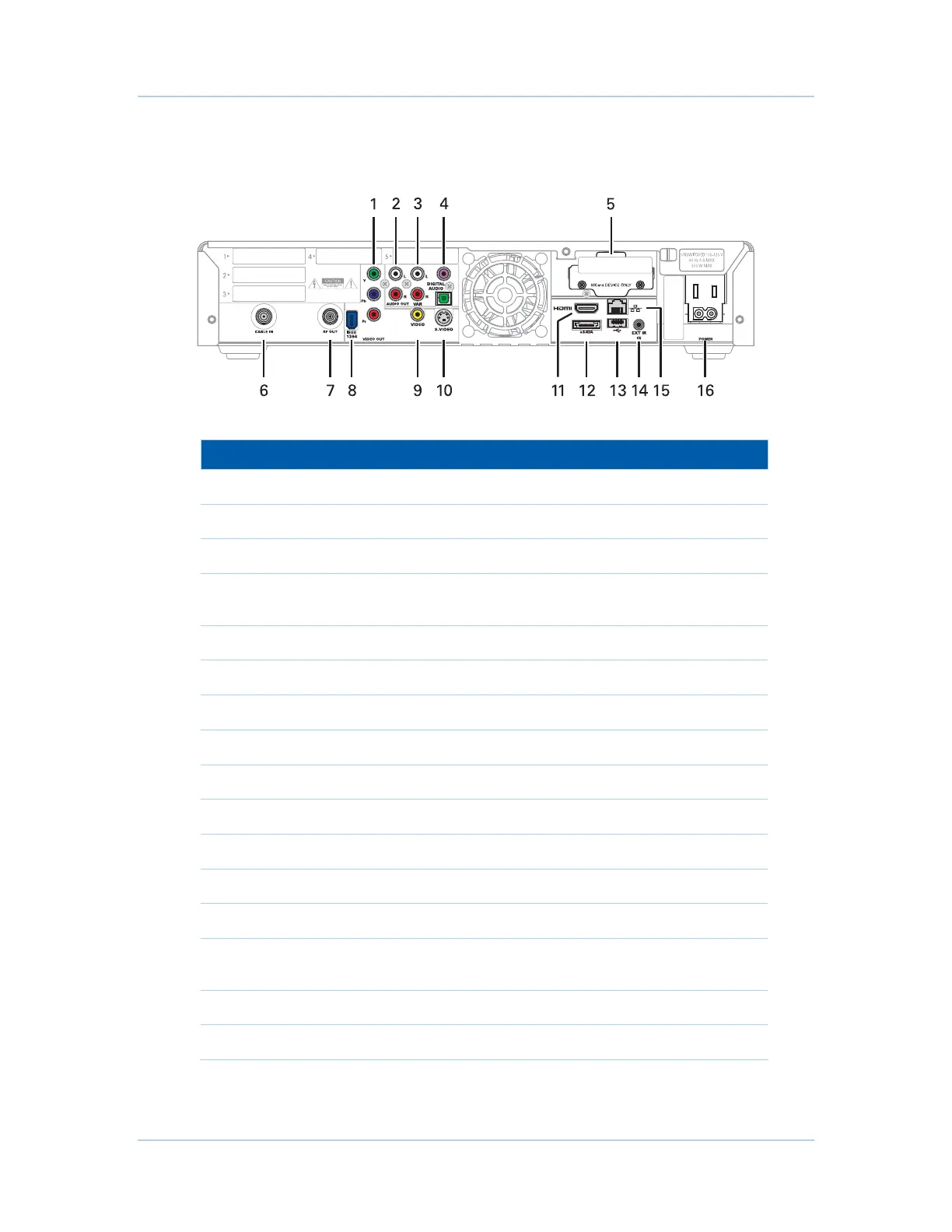

Figure 2 – Rear Panel
Item Description
1 YPbPr — Component video output (HDTV)
2 Audio Out — Analog L/R (Fixed) audio (SDTV)
3 Audio Out — Analog L/R (Variable) audio (SDTV)
4 Digital Audio (Coaxial S/PDIF) — Provides Dolby® Digital or PCM output
Digital Audio (Optical S/PDIF) — Provides Dolby® Digital or PCM output
5 M-Card — Inserted M-Card
6 Cable In — Connects to cable signal from your service provider
7 RF Out — Ch 3/4 modulated audio/video (SDTV) to TV or VCR
8 IEEE-1394 — Audio and video device connection
9 Video Out — Composite Video (SDTV)
10 S-Video — Connects to S-Video (SDTV) input of TV or VCR
11 HDMI — High-Definition TV (HDTV) connector
12 eSATA* — External Serial ATA disk interface
13 USB 2.0* — High-Speed peripheral device connection
14 External IR Input* — Connects to a remote control set-top accessory cable
Data test connector (service personnel only)
15 Ethernet* — Network connection
16 Power connector
* Availability of certain features is dependent upon application support.
1 • Introduction 4

Motorola DCX3400 Series Specifications

General

Tuner Type	QAM
HDMI Output	Yes
Component Video Output	Yes
Composite Video Output	Yes
Digital Audio Output	Yes
Ethernet Port	Yes
USB Port	Yes
Series	DCX3400
High Definition	Yes
DVR	Yes
Outputs	HDMI, Component, Composite, Digital Audio
Output Resolution	480i, 480p, 720p, 1080i
Video Codecs	MPEG-2, MPEG-4
Analog Audio Output	Yes
Audio Codecs	Dolby Digital
Power Consumption	30W
