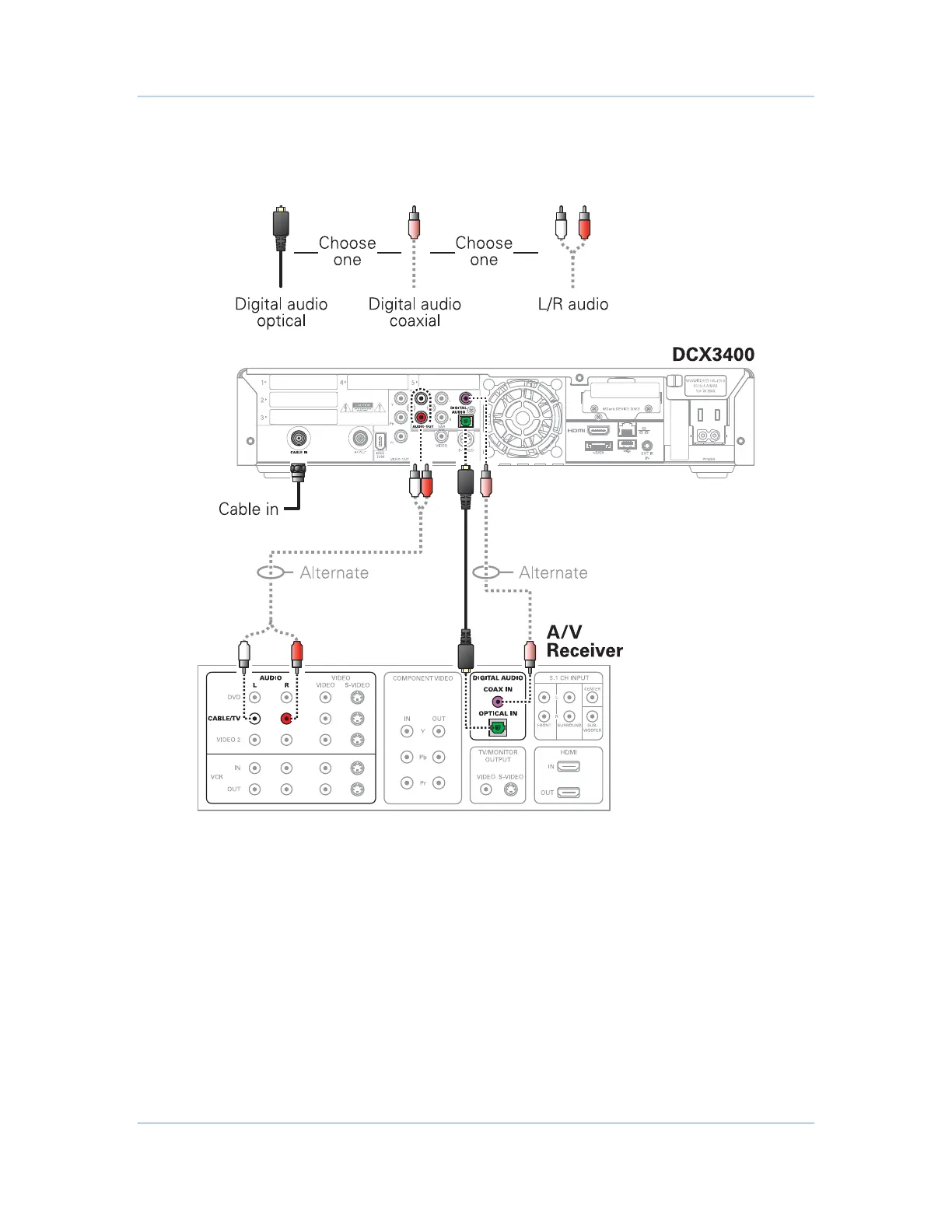

Connecting Your DCX Set-top to an A/V Receiver
— Audio
Note: Only (1) audio connection needs to be made to an A/V Receiver.
Note: Solid lines indicate optimum connections.
4 • Connecting Your DCX
Set-top 17
