Front Panel

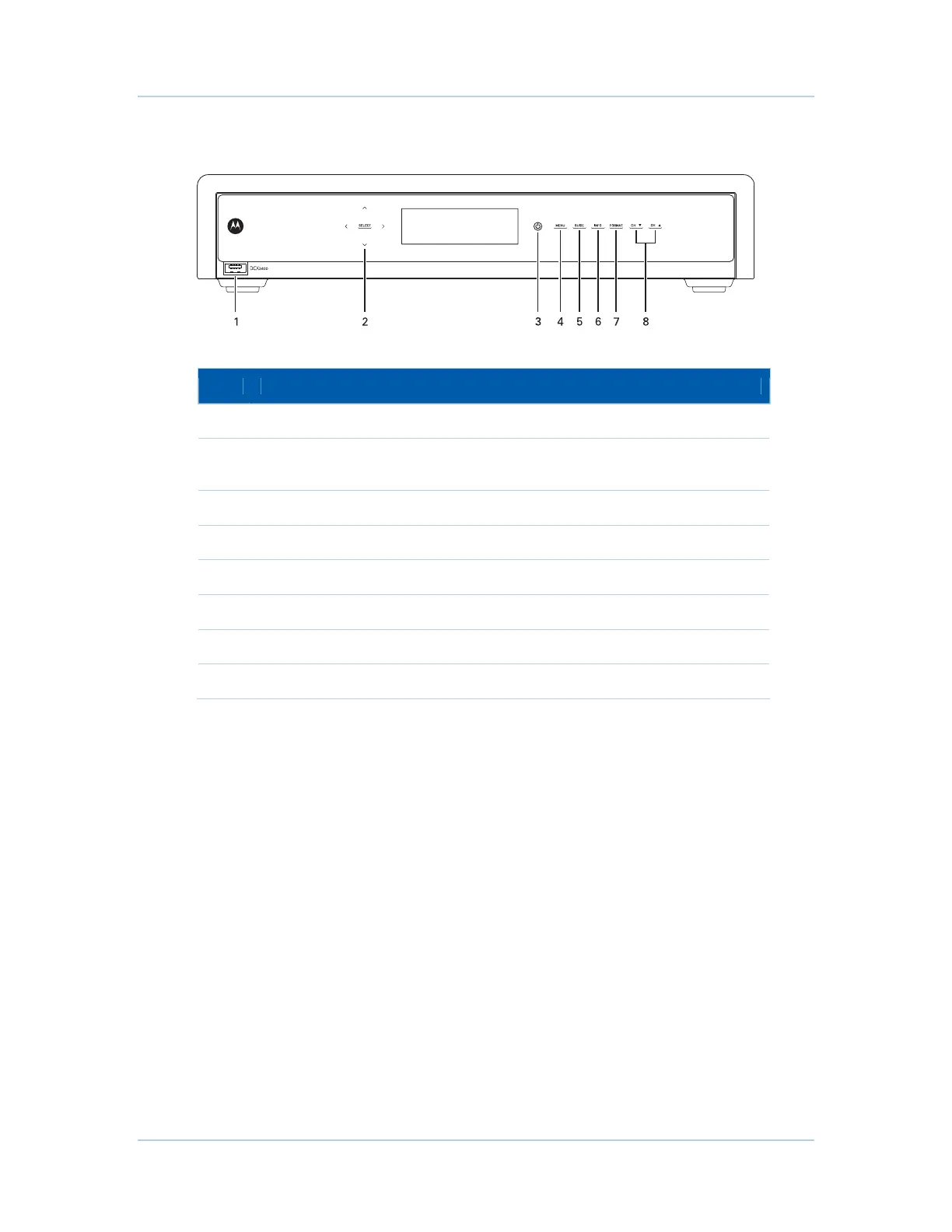

Figure 1 – Front Panel
Item Description
1 USB 2.0 High-Speed connector*
2 Cursor — Menu navigation
Select — Selects menu options
3 Power — Turns the set-top on and off (standby)
4 Menu — Displays the menu
5 Guide — Displays the program guide
6 Info — Displays current channel and program information
7 Format * — Changes the video output format
8 Channel — Changes channel up or down
* Availability of certain features is dependent upon application support.
1 • Introduction 3

Motorola DCX3400 Series Specifications

General

Tuner Type	QAM
HDMI Output	Yes
Component Video Output	Yes
Composite Video Output	Yes
Digital Audio Output	Yes
Ethernet Port	Yes
USB Port	Yes
Series	DCX3400
High Definition	Yes
DVR	Yes
Outputs	HDMI, Component, Composite, Digital Audio
Output Resolution	480i, 480p, 720p, 1080i
Video Codecs	MPEG-2, MPEG-4
Analog Audio Output	Yes
Audio Codecs	Dolby Digital
Power Consumption	30W
