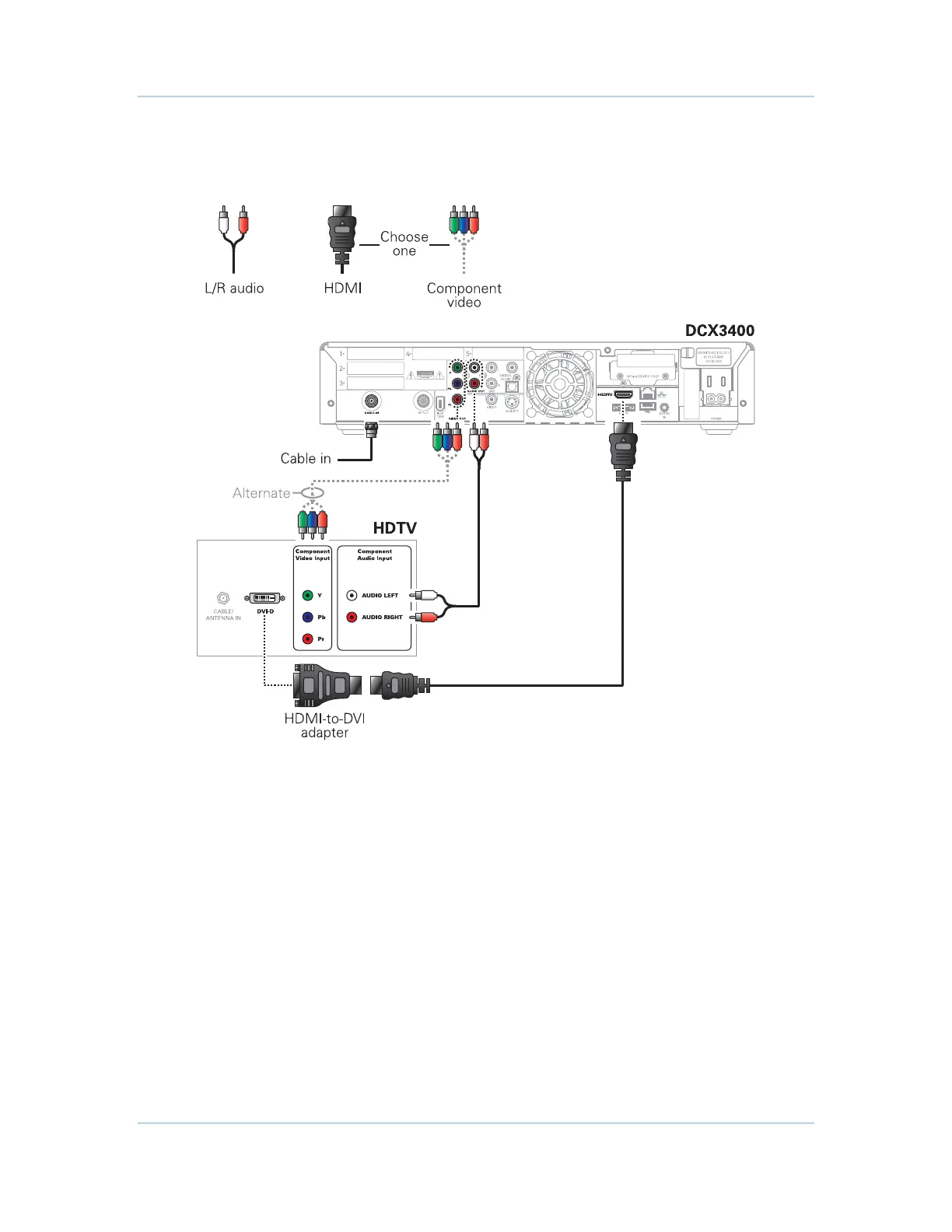

Connecting Your DCX Set-top to an HDTV —
Separate Video/Audio
Note: Only (1) video connection and (1) audio connection needs to be made to an HDTV.
Note: HDMI-to-DVI adapter is not included with the set-top.
Note: Solid lines indicate optimum connections.
