Connecting Using Wand Emulation
To perform Wand Emulation, connect the scanner to a portable data terminal, or a controller which collects the
wand data and interprets it for the host.

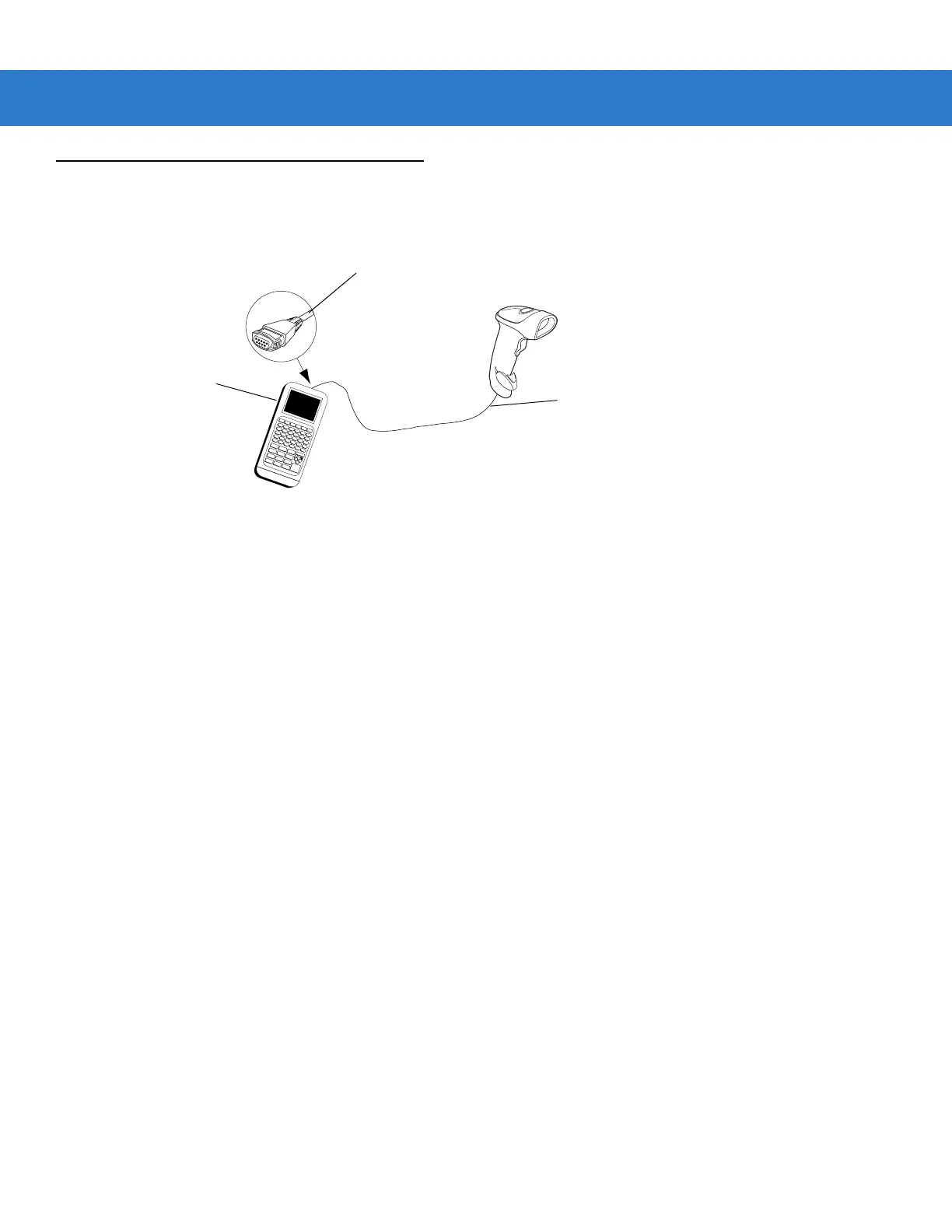

Figure 9-1
Wand Emulation Connection
1. Connect the Wand Emulation interface cable to the bottom of the scanner, as described in Installing the
Interface Cable on page 1-3.
2. Connect the other end of the interface cable to the Wand port on the portable data terminal or controller.
3. Scan the appropriate bar codes in this chapter to configure the scanner.
Wand Port
Portable Data
Terminal
Interface Cable
