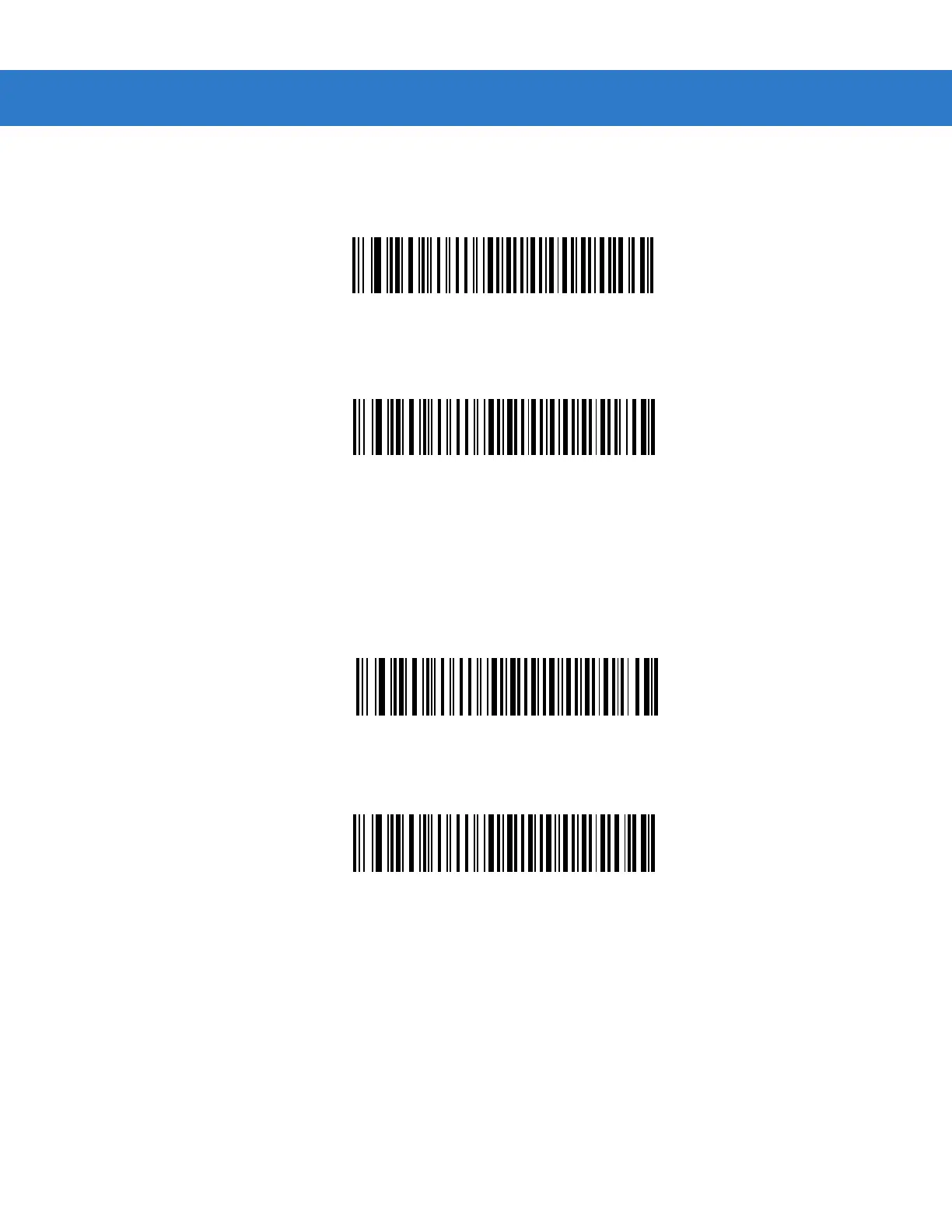

Keyboard Wedge Interface 5 - 9

Intra-Keystroke Delay

Enable this to insert an additional delay between each emulated key depression and release. This sets the

Keystroke Delay parameter to a minimum of 5 msec as well.

Enable

*Disable

Alternate Numeric Keypad Emulation

This allows emulation of most other country keyboard types not listed in Keyboard Wedge Country Types (Country

Codes) on page 5-5 in a Microsoft operating system environment.

Enable Alternate Numeric Keypad

*Disable Alternate Numeric Keypad

Default Chapter4
- Warranty4
- Revision History5
- Table of Contents7
About this Guide15
- Introduction15
- Chapter Descriptions15
- Notational Conventions16
- Numeric Bar Codes16
- Related Documents17
- Service Information17
Chapter 1 Getting Started19
- Introduction19
- Unpacking Your Scanner20
- Setting up the Scanner21
Chapter 2 Scanning25
- Introduction25
- Beeper Definitions26
- LED Definitions27
- Scanning in Hand-Held Mode28
- Aiming29
- Decode Zone30
- Scanning in Hands-Free Mode31
  - Assembling the Stand31
  - Mounting the Stand (Optional)32
- Scanning in Hands-Free Mode33
  - Scanning in the Hands-Free Mode33
Chapter 3 Maintenance and Technical Specifications35
- Introduction35
- Maintenance35
- Troubleshooting36
- Technical Specifications38
- Scanner Signal Descriptions40
Chapter 4 User Preferences43
- Introduction43
- Scanning Sequence Examples43
- Errors While Scanning44
- User Preferences Default Parameters44
- User Preferences45
- Power Mode48
  - Laser on Time49
  - Beep after Good Decode50
- Timeout between Decodes51
Chapter 5 Keyboard Wedge Interface53
- Introduction53
- Connecting a Keyboard Wedge Interface54
- Keyboard Wedge Default Parameters55
- Keyboard Wedge Host Types56
- ASCII Character Set68
Chapter 6 RS-232 Interface79
- Introduction79
- Connecting an RS-232 Interface80
- RS-232 Default Parameters81
- Host Parameters82
- ASCII Character Set100
Chapter 7 USB Interface105
- Introduction105
- Connecting a USB Interface105
- USB Default Parameters107
- USB Host Parameters108
- ASCII Character Set119
Chapter 8 IBM 468X/469X Interface131
- Introduction131
- Connecting to an IBM 468X/469X Host132
- IBM Default Parameters133
- IBM 468X/469X Host Parameters134
  - Port Address134
  - Convert Unknown to Code 39135
Chapter 9 Wand Emulation Interface137
- Introduction137
- Connecting Using Wand Emulation138
- Wand Emulation Default Parameters139
- Wand Emulation Host Parameters140
Chapter 10 Undecoded Scanner Emulation Interface145
- Introduction145
- Connecting Using Undecoded Scanner Emulation146
- Undecoded Scanner Emulation Default Parameters147
- Undecoded Scanner Emulation Host148
- Undecoded Scanner Emulation Host Parameters149
Chapter 11 123Scan2157
- Introduction157
- Communication with 123Scan2157
- 123Scan2 Requirements157
Chapter 12 Symbologies161
- Introduction161
- Scanning Sequence Examples161
- Errors While Scanning161
- Symbology Default Parameters162
- Upc/Ean165
  - Enable/Disable UPC-A/UPC-E165
  - Enable/Disable UPC-E1166
  - Enable/Disable EAN-13/EAN-8167
  - Enable/Disable Bookland EAN168
  - Decode UPC/EAN/JAN Supplementals169
  - User-Programmable Supplementals172
  - UPC/EAN/JAN Supplemental Redundancy172
  - Transmit UPC-A/UPC-E/UPC-E1 Check Digit173
  - UPC-A Preamble174
  - UPC-E Preamble175
  - UPC-E1 Preamble176
  - Convert UPC-E to UPC-A177
  - Convert UPC-E1 to UPC-A178
  - EAN-8/JAN-8 Extend178
  - Bookland ISBN Format179
  - UPC/EAN Security Level180
  - UCC Coupon Extended Code181
- Code 128182
  - Enable/Disable Code 128182
  - Enable/Disable UCC/EAN-128182
  - Enable/Disable ISBT 128183
- Code 39184
  - Enable/Disable Code 39184
  - Enable/Disable Trioptic Code 39184
  - Convert Code 39 to Code 32185
  - Code 32 Prefix185
  - Set Lengths for Code 39186
  - Code 39 Check Digit Verification187
  - Transmit Code 39 Check Digit187
  - Code 39 Full ASCII Conversion188
  - Code 39 Buffering (Scan & Store)189
- Code 93192
  - Enable/Disable Code 93192
  - Set Lengths for Code 93193
- Code 11194
  - Set Lengths for Code 11195
  - Code 11 Check Digit Verification196
  - Transmit Code 11 Check Digits197
- Interleaved 2 of 5 (ITF)198
  - Enable/Disable Interleaved 2 of 5198
  - Set Lengths for Interleaved 2 of 5199
  - I 2 of 5 Check Digit Verification200
  - Transmit I 2 of 5 Check Digit201
  - Convert I 2 of 5 to EAN-13201
- Discrete 2 of 5 (DTF)202
  - Enable/Disable Discrete 2 of 5202
  - Set Lengths for Discrete 2 of 5203
- Chinese 2 of 5204
  - Enable/Disable Chinese 2 of 5204
- Codabar (NW - 7)205
  - Enable/Disable Codabar205
  - Set Lengths for Codabar206
  - CLSI Editing207
  - NOTIS Editing207
- Msi208
  - Enable/Disable MSI208
  - Set Lengths for MSI209
  - MSI Check Digits210
  - Transmit MSI Check Digit(S)210
  - MSI Check Digit Algorithm211
- GS1 Databar (Formerly RSS, Reduced Space Symbology)212
  - GS1 Databar212
  - Convert GS1 Databar to UPC/EAN213
- Redundancy Level 1214
  - Redundancy Level 2214
  - Redundancy Level 3215
  - Redundancy Level 4215
- Security Level216
  - Security Level 0216
  - Security Level 1216
  - Security Level 2216
  - Security Level 3217
  - Bi-Directional Redundancy218
  - Intercharacter Gap Size218
- Report Version219
- Report MIMIC Version219
- Report Synapse Cable219
Chapter 13 Miscellaneous Scanner Options221
- Introduction221
- Scanning Sequence Examples222
- Errors While Scanning222
- Miscellaneous Default Parameters222
- AIM Code Identifiers223
- Miscellaneous Scanner Parameters223
Chapter 14 Advanced Data Formatting229
- Introduction229
- Rules: Criteria Linked to Actions229
- Using ADF Bar Codes230
- ADF Bar Code Menu Example230
- Special Commands234
- Criteria237
- Actions248
- Alphanumeric Keyboard301
Appendix A Standard Default Parameters311
Appendix B Programming Reference319
- Symbol Code Identifiers319
- AIM Code Identifiers320
Appendix C: Sample Bar Codes320
- Code 39320
- Code 128320
- Code 128324
- Interleaved 2324
- GS1 Databar-14324
Appendix D: Numeric Bar Codes325
- Numeric Bar Codes325
- Cancel327
- Tell Us What You Think342
