Symbologies 12 - 15

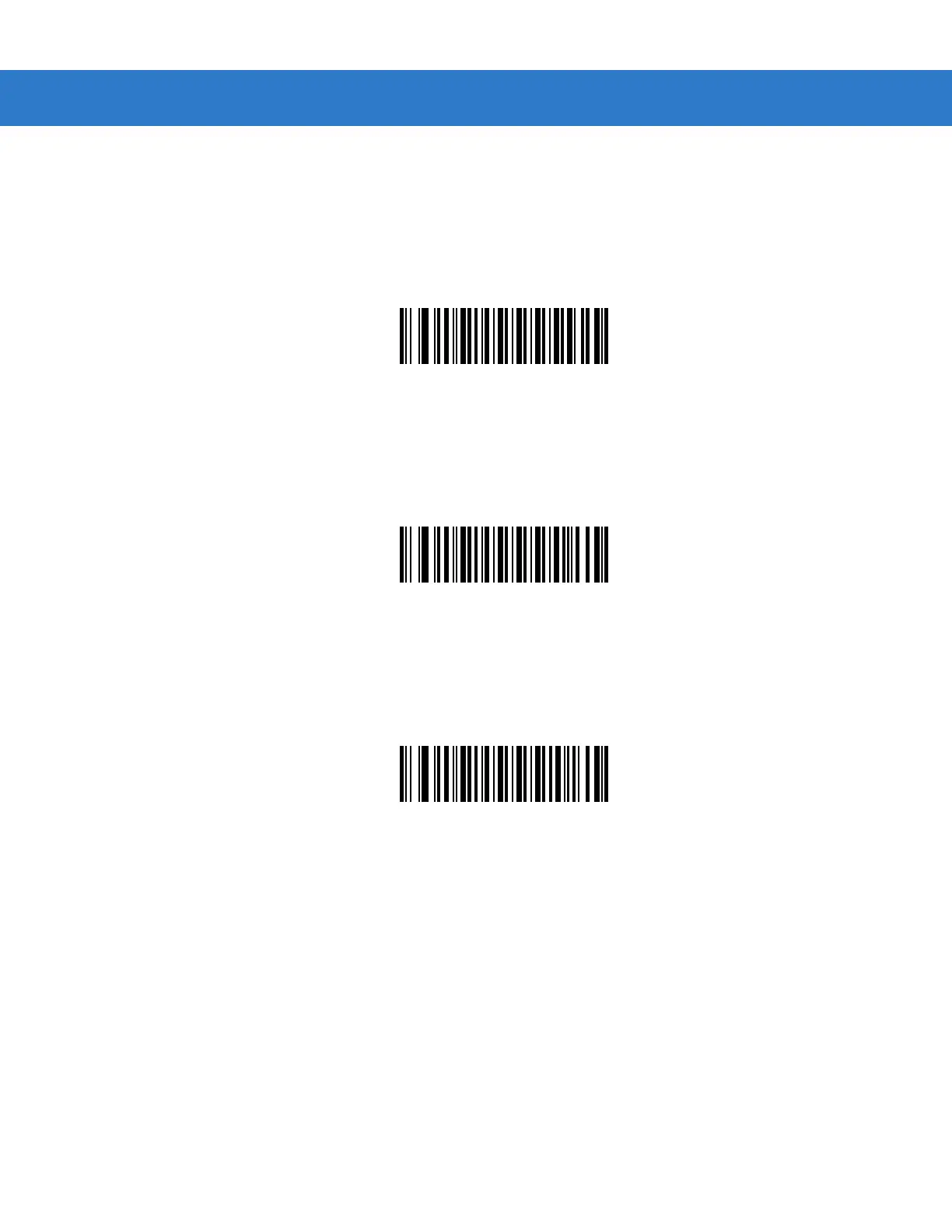

UPC-E Preamble

Preamble characters are part of the UPC symbol consisting of Country Code and System Character. There are

three options for transmitting UPC-E preamble to the host device: transmit System Character only, transmit System

Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the

host system.

No Preamble

(<DATA>)

*System Character

(<SYSTEM CHARACTER> <DATA>)

System Character & Country Code

(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)

Default Chapter4
