Accessories 2 - 5
4. Gently press down on the battery to ensure proper contact.

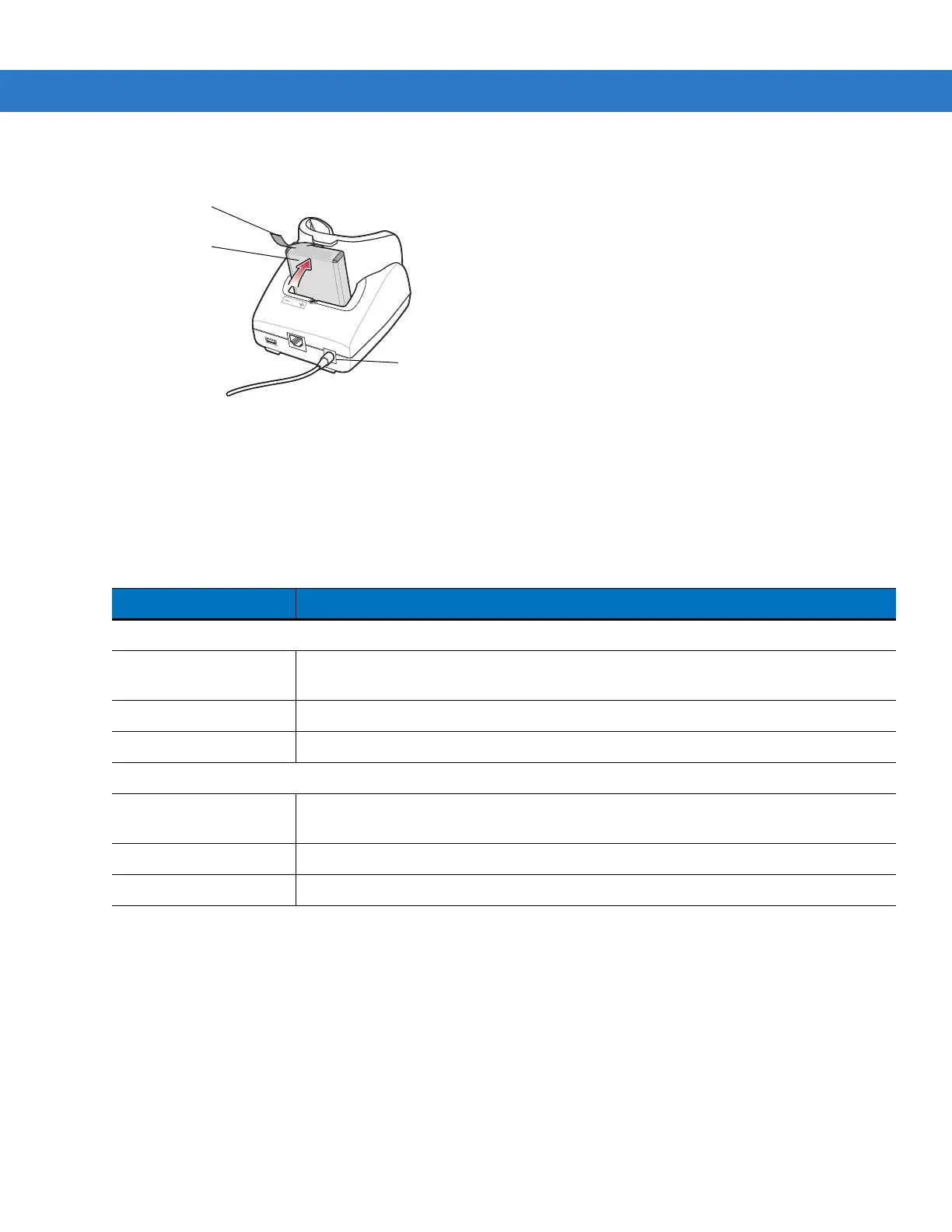

Figure 2-4 Inserting the Spare Li-ion Battery into the Cradle
The cradle Spare Battery Charge LED indicates the spare battery charging status. See Table 2-1 for charging
status indications.
To remove the battery, pull the battery tab away from the mobile computer slot and lift the battery out of the slot.
The Li-ion battery charges in less than four hours.
Table 2-1 LED Charging Status Indicators
LED Indication
Mobile Computer Charging (LED on mobile computer)
Off Mobile computer not in cradle; mobile computer not placed correctly; cradle is not
powered, or environment is outside the battery charging temperature range.
Slow Blinking Amber Mobile computer is charging.
Solid Amber Charging complete.
Spare Battery Charging (LED on cradle)
Off No spare battery in slot; spare battery not placed correctly; cradle is not powered, or
environment is outside the battery charging temperature range.
Slow Blinking Amber Spare battery is charging.
Solid Amber Charging complete.
Spare Battery
Power Port
Battery Tab
