Bus Operation
MOTOROLA
MC68030 USER’S MANUAL
7-65

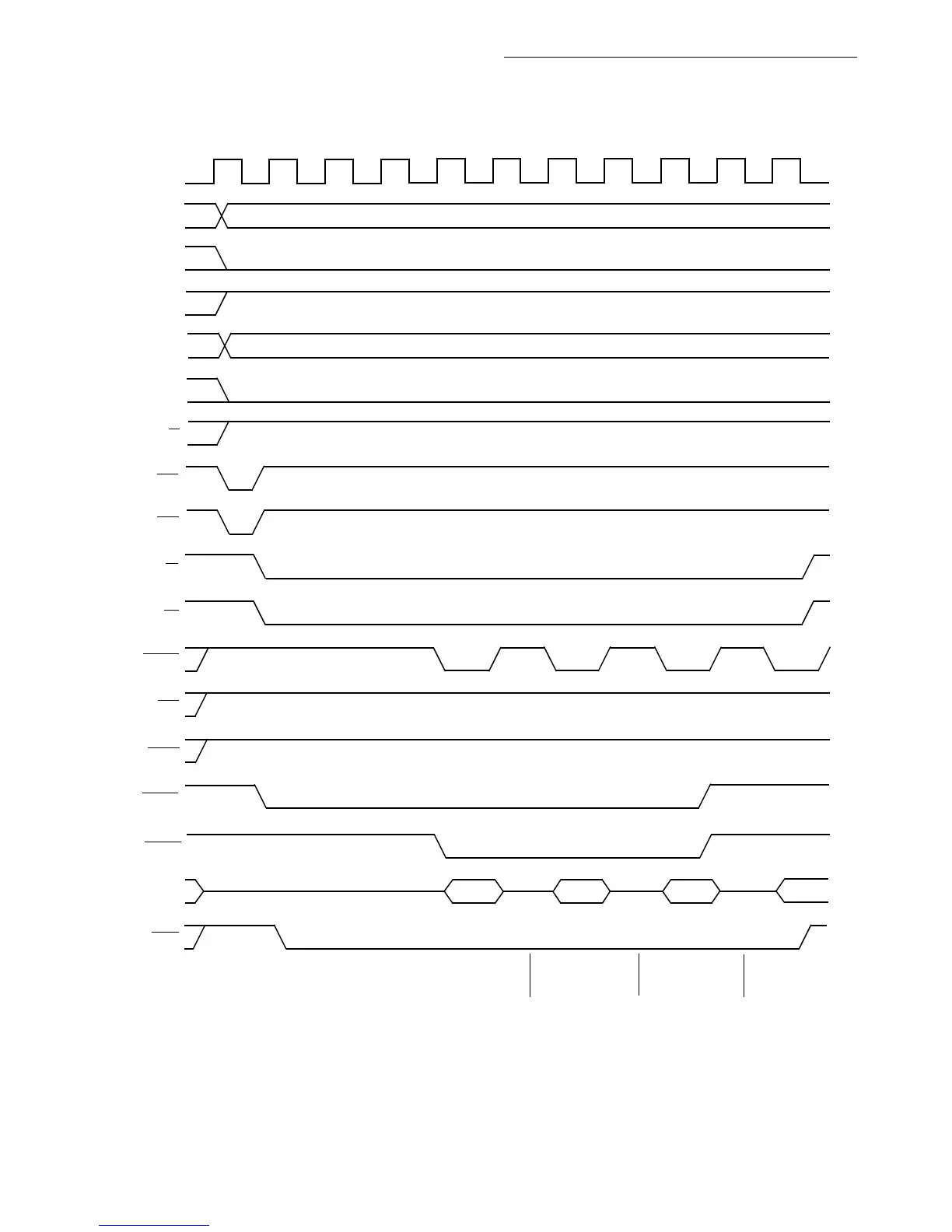

Figure 7-38. Long-Word Operand Request from $07 with
Burst Request and Wait Cycle
S0
S2
Sw
S1
Sw
Sw
Sw
Sw
S4
S5
Sw
Sw
S6
S9
S8
Sw
S7
b4–b7
bC–bF
bC–bF
b8–bB
Sw
Sw
Sw
Sw
S3
A31-A4
A3
A2–A0
FC2-FC0
R/W
ECS
OCS
CLK
AS
DS
STERM
CBREQ
CBACK
D31–D0
DBEN
SIZ1–SIZ0
CIIN
CIOUT
01
10
11
00
VALUE OF A3:A2 INCREMENTED BY THE SYSTEM HARDWARE
210
212
