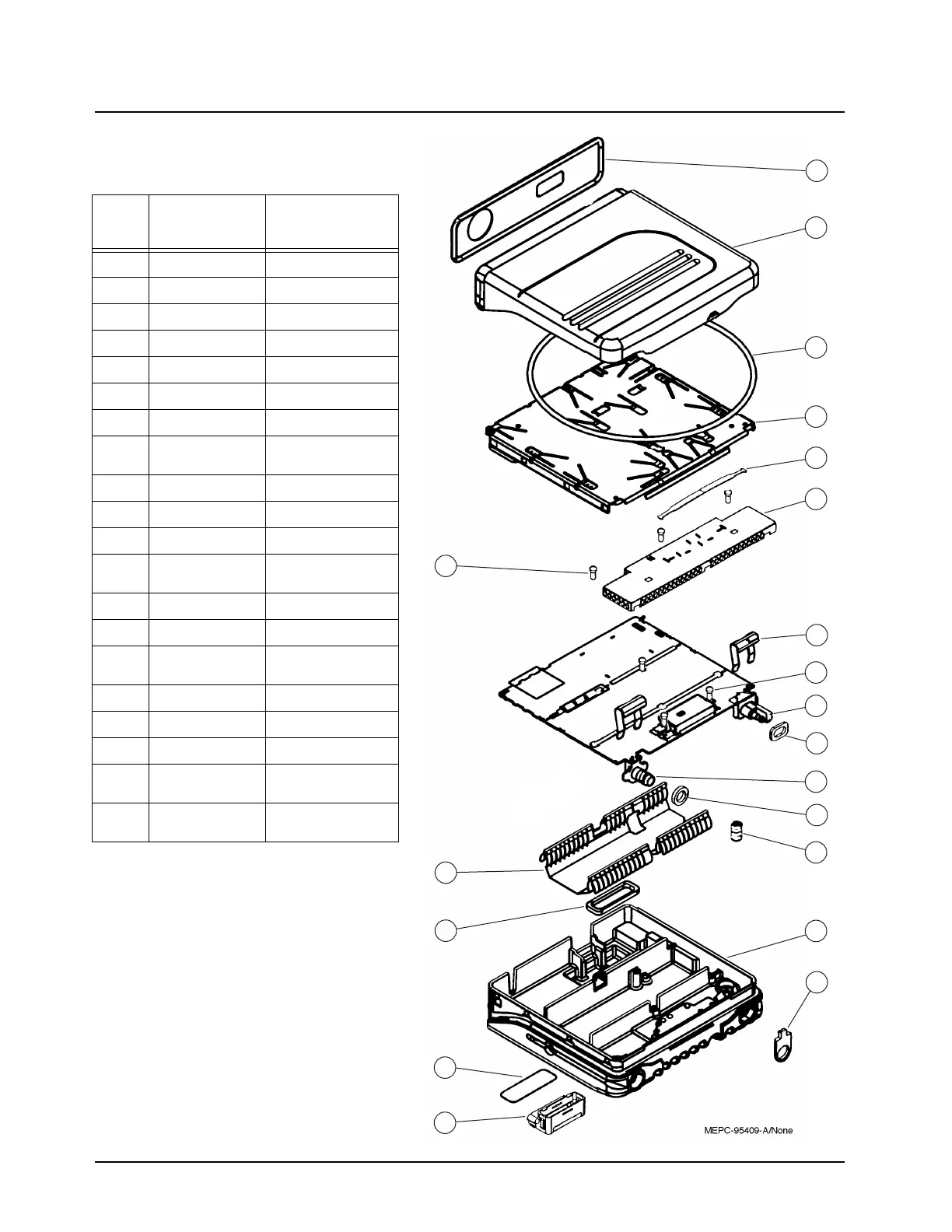

10-4 Diagrams and Parts Lists: Exploded View Parts List, Low Power
Exploded View Parts List,
Low Power
ITEM
NO.
MOTOROLA
PART NO. DESCRIPTION
1 3205931V02 Gasket, Front Cover
2 1505908V02 Top Cover
3 3205934V01 Gasket, Top Cover
4 2605652W02 Pressure Plate
5 5584300B04 Handle, 800 MHz only
6 2604802K01 PA Shield, 800 MHz only
7 4205938V01 Clip Spring, 2 pcs.
8 0310907C69 Screw, M3X0.5X10,6
pcs
a
.
a Number of screws can vary depending on the
model.
9 0905902V04 Power Connector
10 3205457Z02 Gasket, Power Connector
11 0905901V06 Antenna Connector
12 3205457Z01 Gasket, Antenna Con-
nector
13 4105783W01 Spring Diode
b
b Parts are obsolete on newer kits.
14 2705920V07 Chassis, Low Power
15 4205940V01 Retainer, Accessory Con-
nector Cable
16 HLN6412 Accessory Connector
17 5405942V01 Label
18 3205935V01 Gasket, 25 D Connector
19 2604555E01 Board Slot Shield,
800 MHz only
20 2805429W03 25 Position D Connector,
Sealed
1
2
3
4
5
6
7
8
9
10
8
18
17
16
11
12
13
14
15
19
