Disassembly & Reassembly and Replacement Procedures: Replaceable Pushbuttons Replacement Procedure 5-23
Emergency
Symbol
White Orange 3805230Z27 3805231Z02 3805232Z23 N/A 3886267A02
Emergency
Symbol
Orange Black 3805230Z19 3805231Z15 3805232Z11 N/A 3886267A11
Horn/Light
Symbol
White Black 3805230Z28 3805231Z10 3805232Z24 N/A 3886267A27
Home
Symbol
White Black 3805230Z29 3805231Z25 3805232Z09 N/A 3886267A28
Monitor
Symbol
White Black 3805230Z04 3805231Z26 3805232Z25 N/A 3886267A29
Option
Symbol
White Black 3805230Z15 3805231Z27 3805232Z08 N/A 3886267A30
Page
Symbol
White Black 3805230Z14 3805231Z28 3805232Z26 N/A 3886267A31
Phone
Symbol
White Black 3805230Z30 3805231Z11 3805232Z27 N/A 3886267A04
Scan
Symbol
White Black 3805230Z31 3805231Z12 3805232Z28 N/A 3886267A03
Secure
Symbol
White Black 3805230Z32 3805231Z03 3805232Z29 N/A 3886267A32
Select
Symbol
White Black 3805230Z17 3805231Z29 3805232Z07 N/A 3886267A09
Up Arrow
Symbol
White Black 3805230Z06 3805231Z30 3805232Z30 N/A N/A
Down Arrow
Symbol
White Black 3805230Z07 3805231Z31 3805232Z31 N/A N/A
Zone
Symbol
White Black 3805230Z13 3805231Z32 3805232Z32 N/A 3886267A33

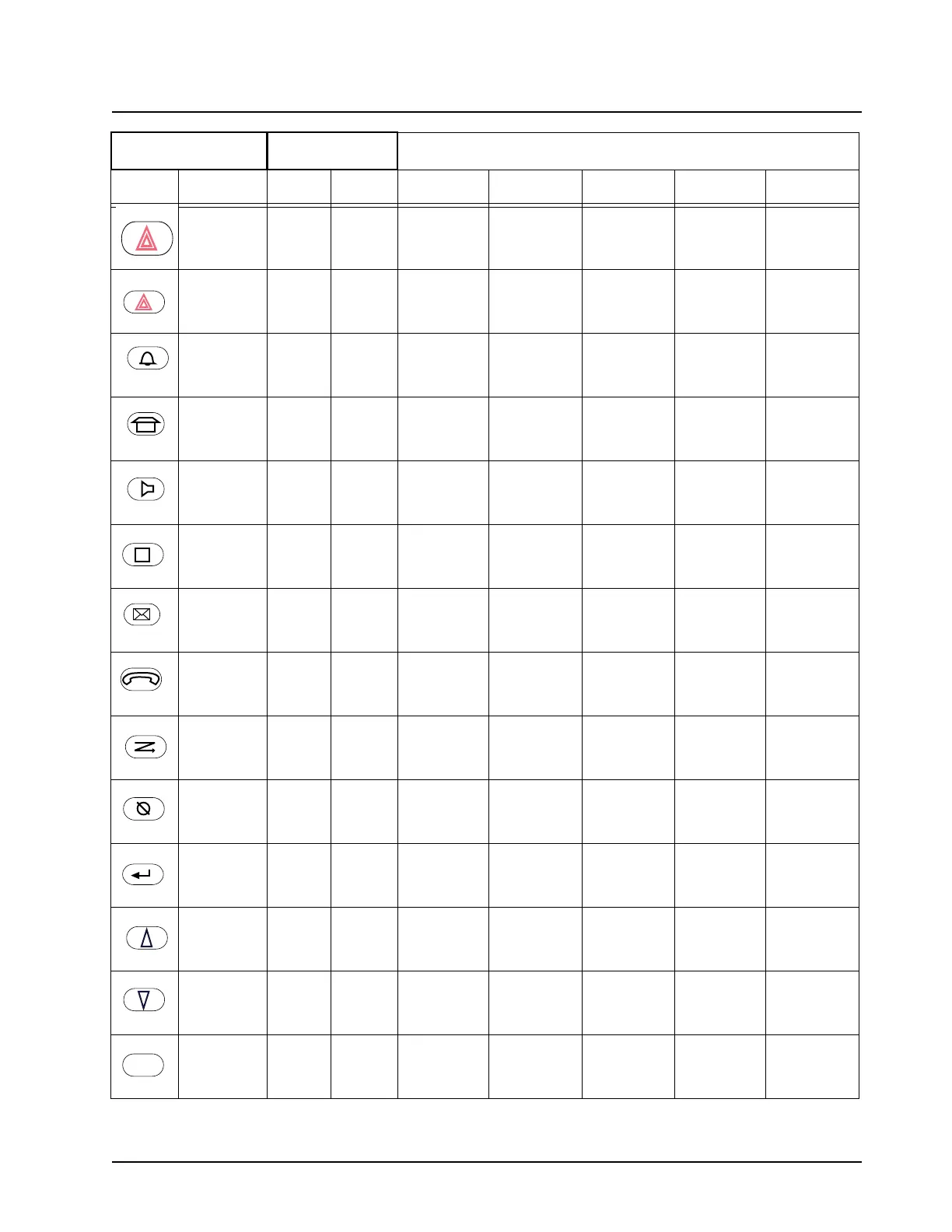

Graphic Color Pushbutton Part Number
Legend Description Button Graphic Size A Size B Size C Size D Size E
Zone
