Motorola P Series - Additional Configuration Required by the DTMF Option Board

Option Board Installation 3-15
7.2 Additional ConÞguration required by the DTMF Option Board
1. In the Tree View window of your CPS, expand the Signalling node. Also expand the DTMF
System node. Open each of the DTMF System dialog boxes under this node, and Þll in the
relevant information pertinent to your DTMF system.

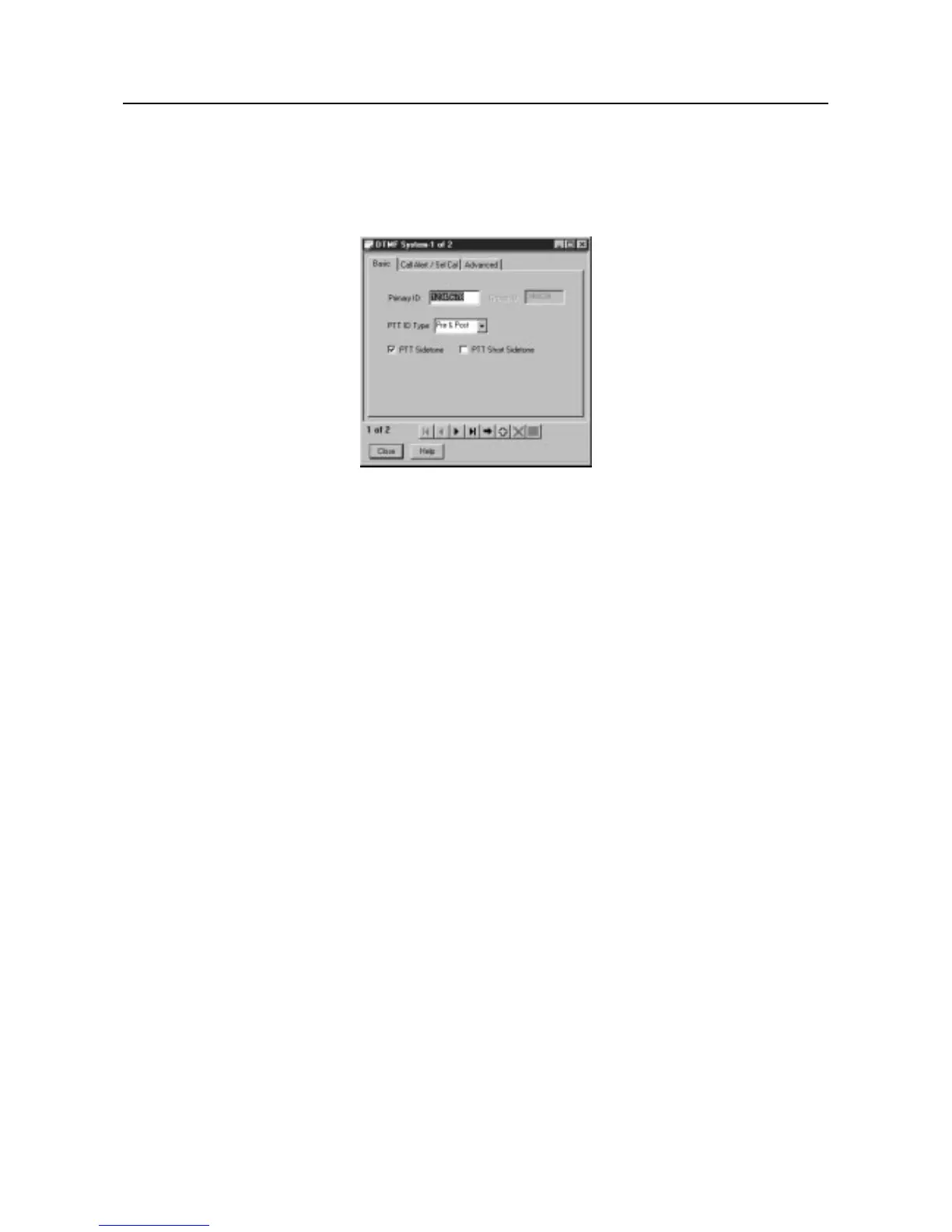

Figure 3-15 DTMF System dialog box
