3-14 MAINTENANCE
7.1 ConÞguring the Radio after Option Board Installation
1. Connect the radio to the computer following instructions outlined in Chapter 5.
2. Start up the CPS, and read the radioÕs codeplug.
3. Open the Radio ConÞguration dialog box, and proceed to the Option Board tab. From the
pull-down menu, choose the option board type that you just installed (choose Simple Decoder
for the DTMF option board).
4. Open the Personality dialog box. For every personality that you want the option board
features to be activated, click on the Option Board Feature check box of the Advanced tab.

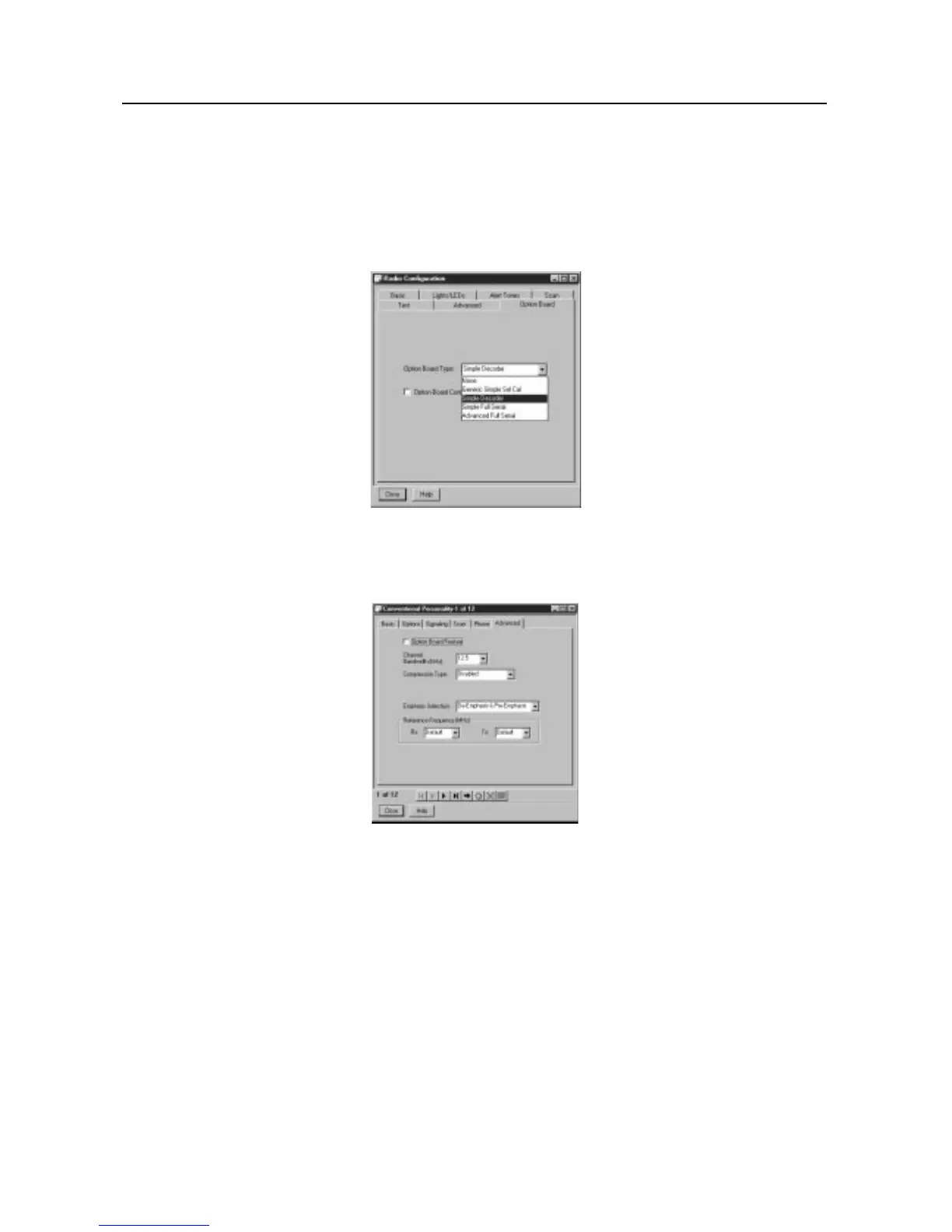

Figure 3-13 Option Board tab of the Radio ConÞguration dialog box.
Figure 3-14 Advanced tab of the Personality dialog box.
