3-12 MAINTENANCE
6.6 Chassis and Front Cover Reassembly
1. Align the chassis assembly end-to-end with the front cover assembly.
2. Insert the tails of the jumper ßex and wire assembly into their respective connectors at the
bottom of the front cover.
3. Push down the latches on the connectors to hold the ßex circuit to the main board.
4. Slide the volume potentiometer and frequency switch shafts into their respective holes in the
front cover.
5. Push the chassis assembly completely into the top of the front cover until it settles in place.
6. Be sure the O-ring is properly seated.
7. Snap the bottom of the chassis into the front cover.
8. Reassemble the knobs, dust cover, antenna, and battery.
7.0 Option Board Installation
1. With the keypad retainer removed, the keypad board can be removed without the use of tools.
2. Remove the jumper ßex from the connector on the keypad board. Notice the orientation of the
ßex to the connector. Arrows on the jumper ßex point to the correct way of inserting the ßex
into the connector.
3. Remove the keypad board.

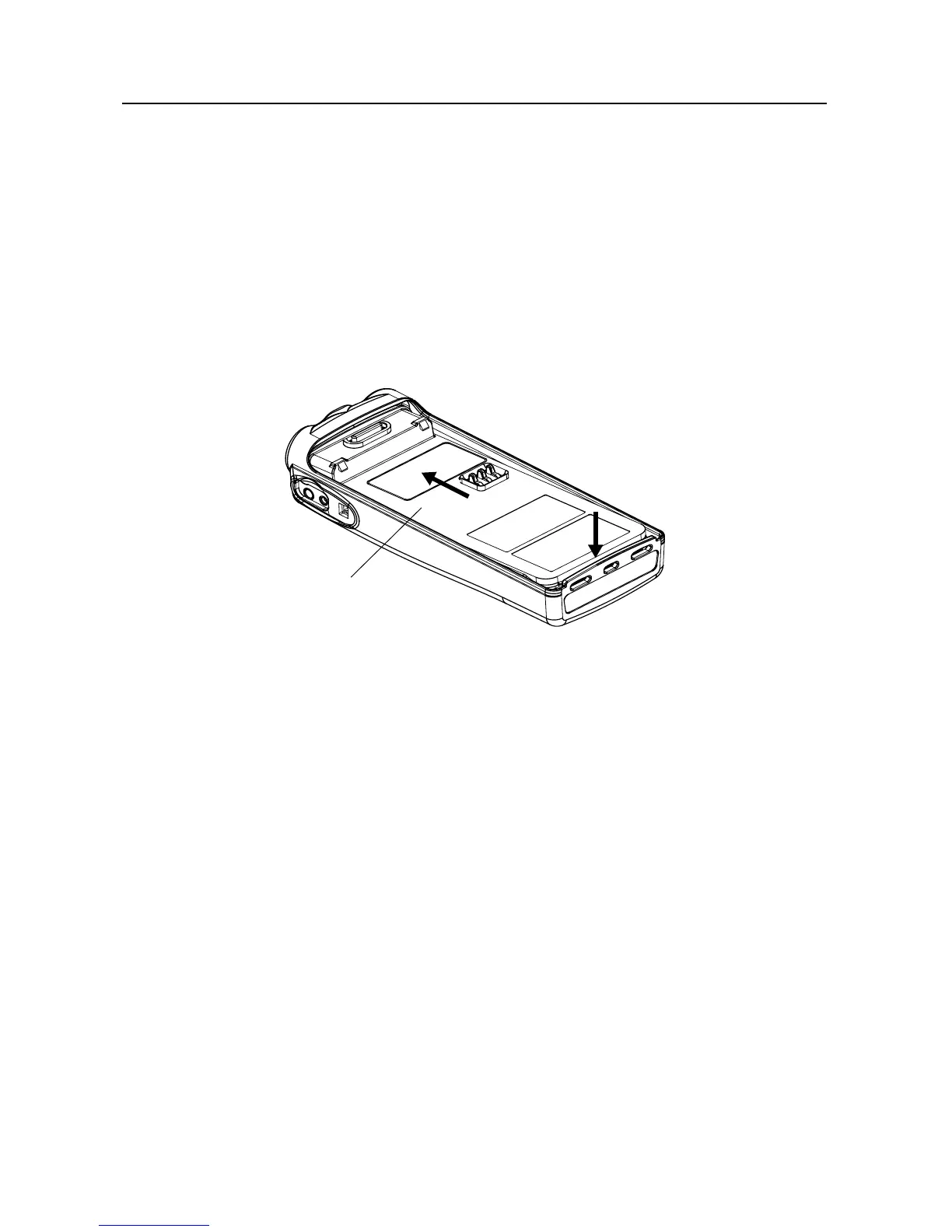

Figure 3-11 Fastening the Chassis
Radio Chassis
To Next Page
