Motorola Symbol LS4278 Product Reference Guide

User Preferences 5 - 9
Scan Pattern
This parameter determines the pattern (mode) of scanning. Scan the appropriate bar code below to set the
scanning mode.
• Single-line Only - Scan Single-line Only for a single-line scan mode. The laser has no up and down scan
line movement (no raster). (For an example of a single-line scan, see Figure 2-2 on page 2-4.)
• Multi-line Smart Raster - Scan Multi-line Smart Raster for a scan line begins as a single line and moves
up and down (rasters) when a partial scan of a bar code is detected, or no bar code is decoded 500 ms after
the trigger is pulled. Upon seeing a stacked GS1 DataBar code, the scanner immediately rasters. (For an
example of a multi-line scan, see Figure 2-3 on page 2-5.)
• Multi-line Always Raster (default) - Scan Multi-line Always Raster for rastering (up and down scan line
movement) to begin immediately.

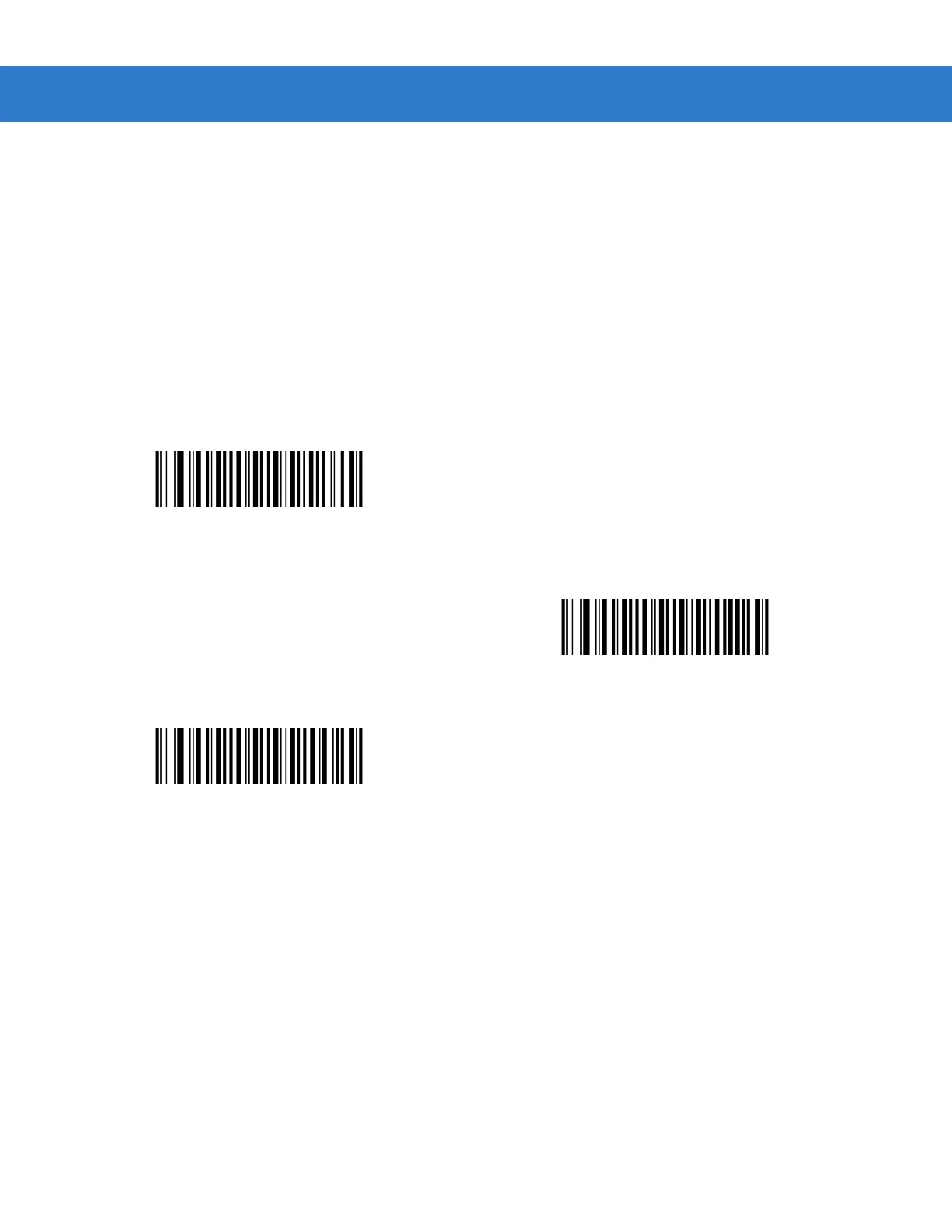

Single-line Only
(No Raster)
Multi-line Smart Raster
*Multi-line Always Raster
