14 January 31, 2006 6809497A15-A
General Operation V3x
General Operation
Controls, Indicators, and Input / Output (I/O) Connections
The V3x telephone’s controls are located on the sides of the phone and on the keypad.
Indicators, in the form of icons, are displayed on the LCD (see Figure 2). V3x phones
have an audible alert transducer on the top and I/O connectors, consisting of a
headset jack and an accessory port, located on the side and bottom of the phone See
Figure 1.
Main Display
The main display provides a 262k color backlit display for easy readability in all
light conditions. The 320 x 240 display provides room for text, graphics, icons, and
prompts.
050592o

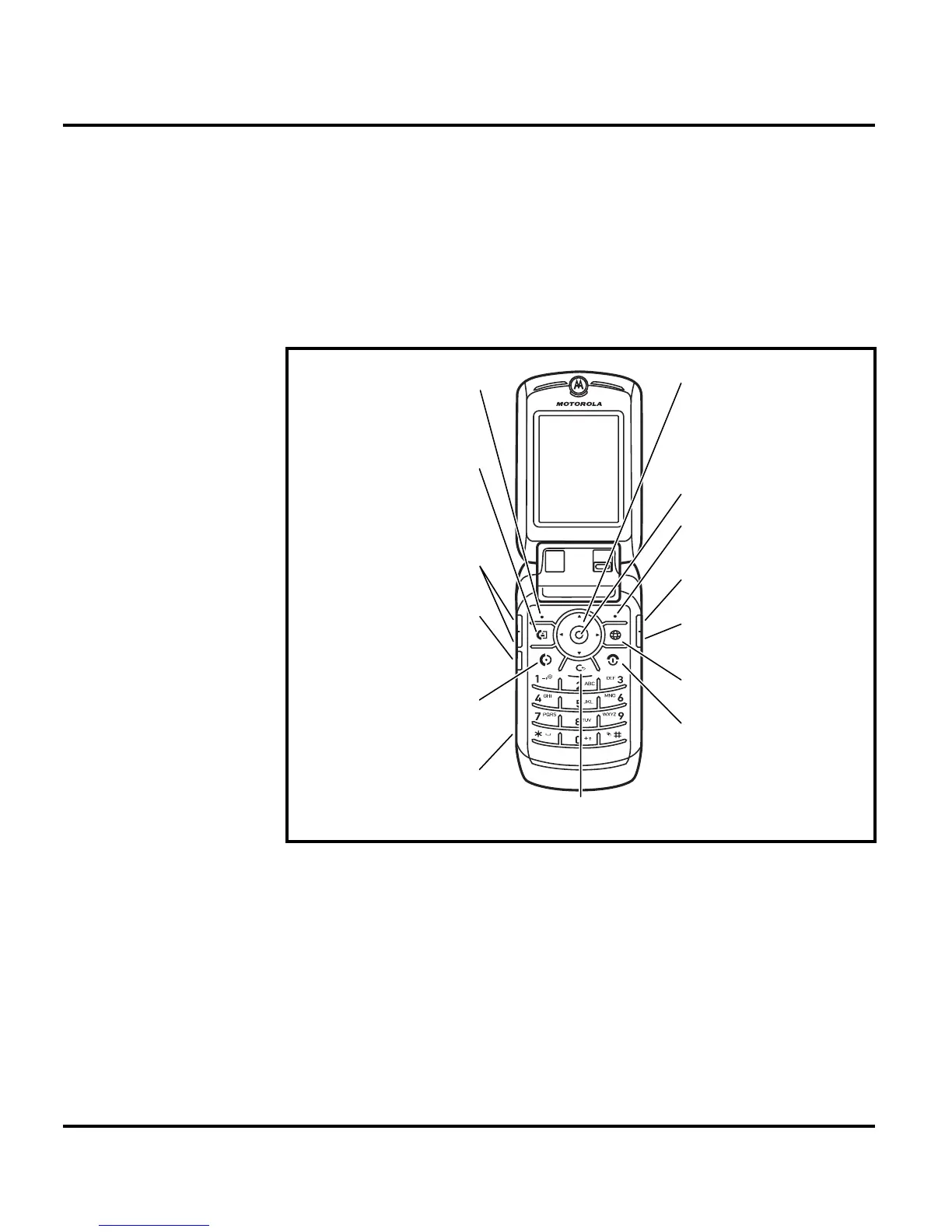

Figure 1. Telephone Controls, indicators, and I/O Connections
Left Soft Key
Scroll up,
down, left, or
right.
Select.
Volume Keys
Go online.
Right Soft
Key
Camera Key
Voice Dial
Key
Clear Key
Turn on &
off, hang up,
exit menus.
Charge up or
go handsfree.
Make &
answer calls.
Smart Key
Make video
calls.
