18 January 31, 2006 6809497A15-A
Disassembly V3x
Disassembly
This section provides instructions for the disassembly of V3x telephones. Tools and
equipment used for the phone are listed in Table 1, preceding.
Removing and Replacing the Battery Cover and Battery
1. Ensure the phone is turned off.
2. Press down on the battery latch and then slide the battery cover as shown in
Figure 1.
3. Lift the battery cover away from the phone.
G
Many of the integrated devices used in these phones are vulnerable to damage from
ESD. Ensure adequate static protection is in place when handling, shipping, and
servicing the internal components of this phone.
G
Avoid stressing the plastic in any way to avoid damage to either the plastic or
internal components.
E
All batteries can cause property damage and/or bodily injury, such as burns, if a
conductive material, such as jewelry, keys, or beaded chains, touches exposed
terminals. The conductive material may complete an electrical circuit (short circuit)
and become very hot. Use care in handling any charged battery, particularly when
placing it inside a pocket, purse, or other container with metal objects.
051209o

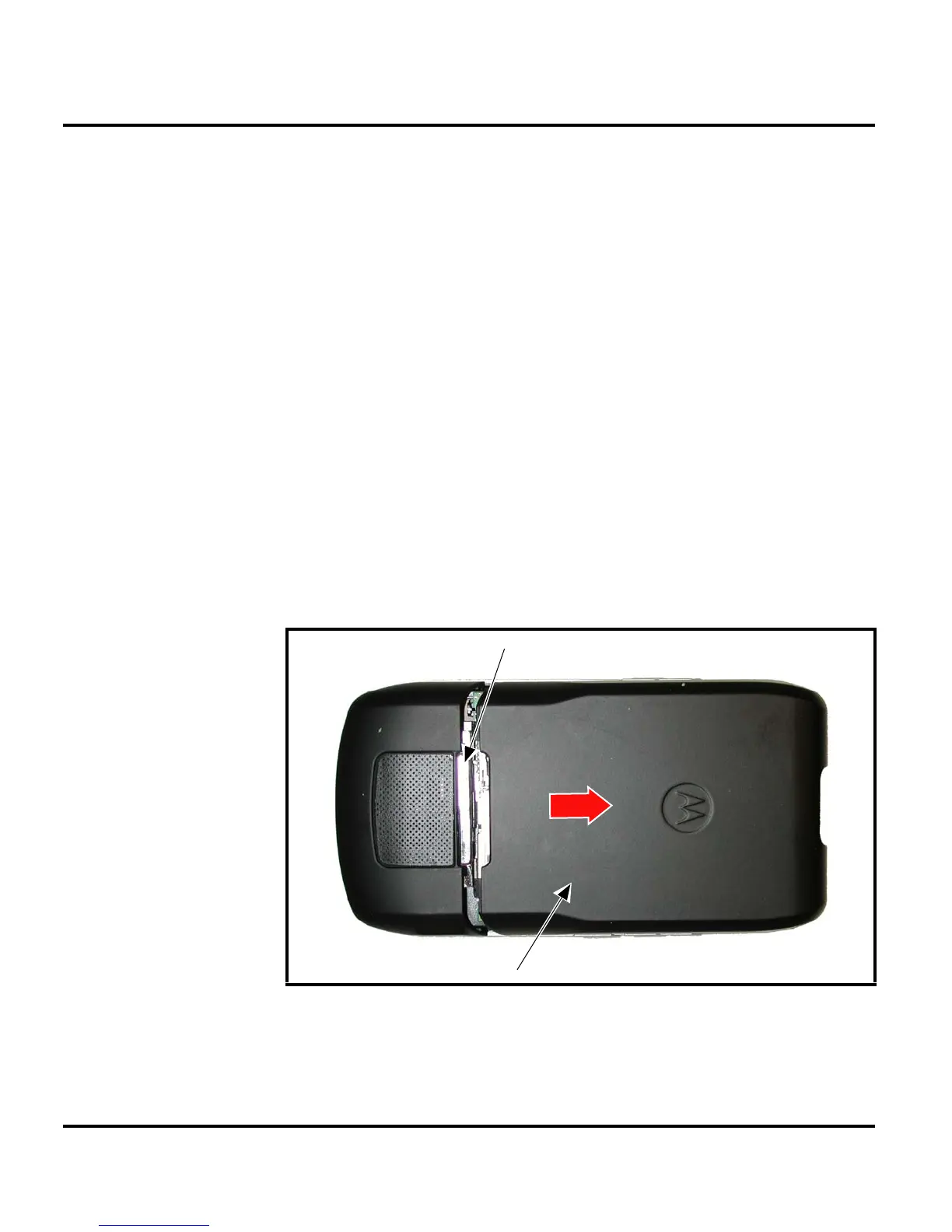

Figure 1. Removing the Battery Cover
Battery Cover latch
Battery Cover
To Next Page
