36 January 31, 2006 6809497A15-A
Disassembly V3x
Removing and Replacing the Flip Display Assembly
1. Remove the battery cover, battery, SIM, antenna, rear housing, transceiver
board assembly, keypad assembly, flip assembly, and flip cover as described in
the procedures.
2. Use the disassembly tool to unseat the flip assembly flex connector from the
display assembly (see Figure 22).
3. Move the flex connector away from the display assembly.
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.
051247o

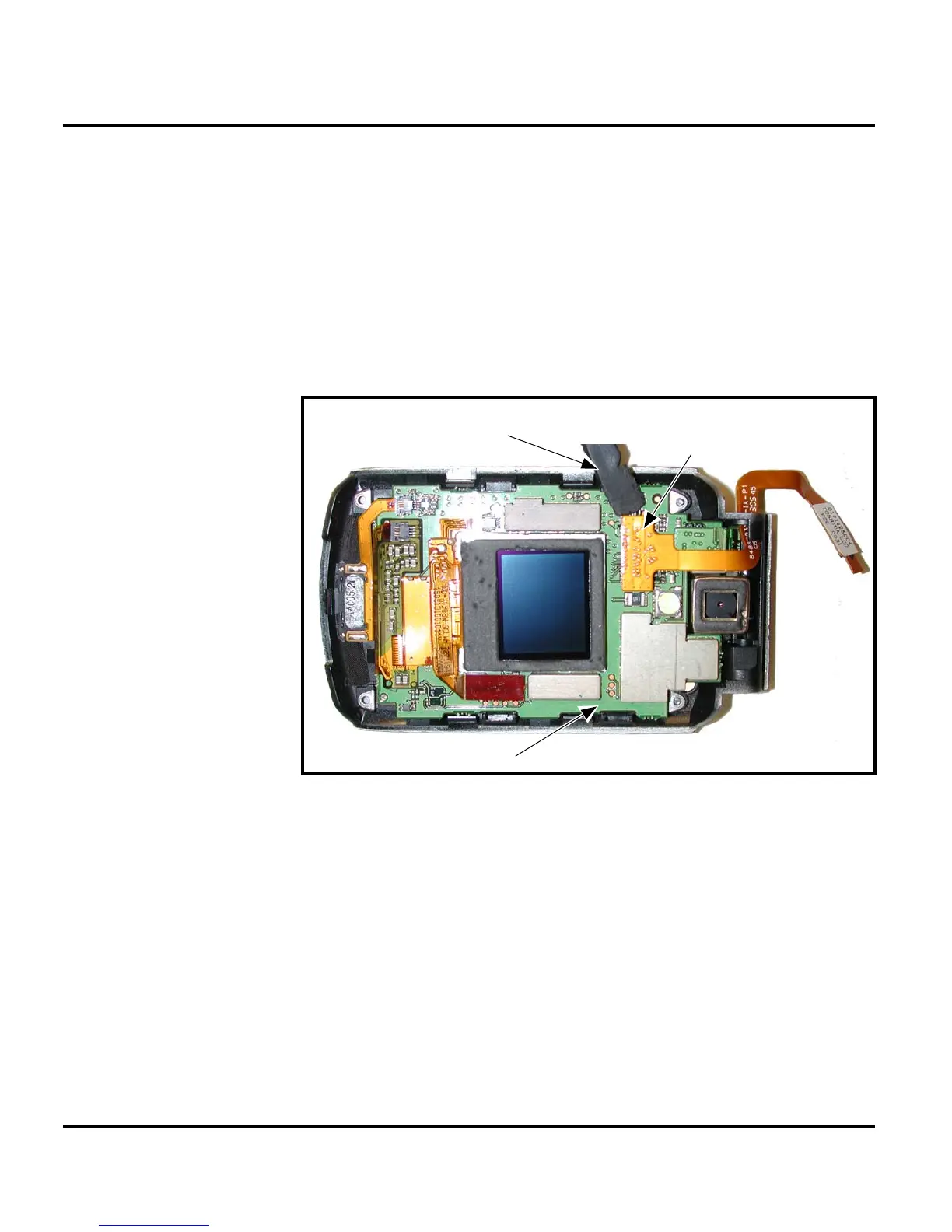

Figure 22. Removing the Flip Assembly Flex Connector
Flip Assembly
flex connector
Disassembly tool
Display Assembly
To Next Page
