Motorola V3 Service Manual

24 January 31, 2006 6809497A15-A
Disassembly V3x
Removing and Replacing the Transceiver Board Assembly
1. Remove the battery cover, battery, SIM, antenna, and rear housing as
described in the procedures..
2. Carefully work the flat end of the disassembly tool under the flex connector
and unseat the connector from its socket the transceiver board (see Figure 7).
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent ESD and component damage.
G
The flexible printed cable (FPC) (flex) is easily damaged. Exercise extreme care when
handling.
051219o

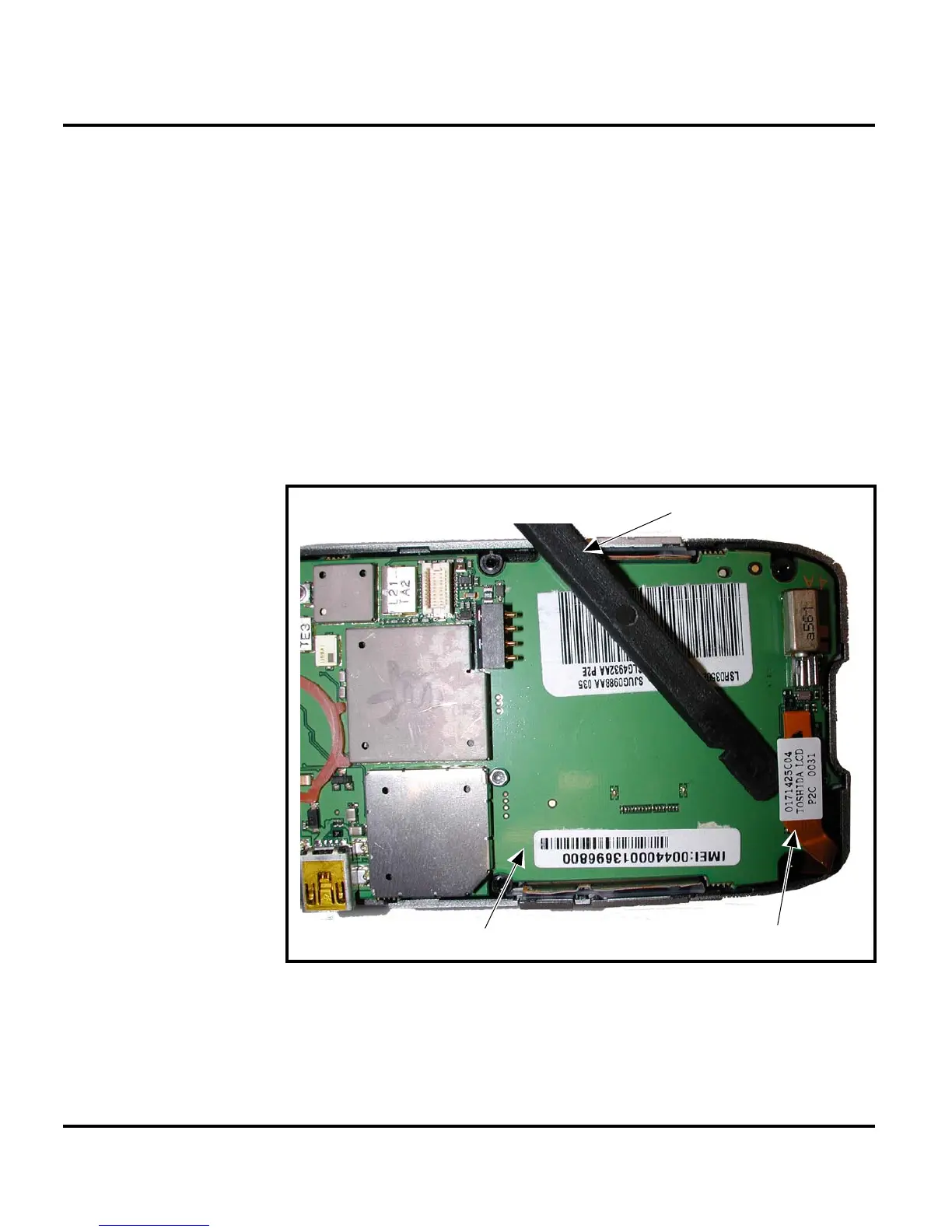

Figure 7. Disconnecting the Flex From the Transceiver Board
Disassembly tool
Flex connector
T
ransceiver PCB Assembly

Motorola V3 Specifications

General

FM radio	No
Ringer type	Polyphonic
Polyphonic rings quantity	40
Rear camera resolution	640 x 480 pixels
Interface	CE Bus, USB / Bluetooth
Networking type	GSM
Playback formats	MIDI, MP3
Operating frequency	GSM 850 / GSM 900 / GSM 1800 / GSM 1900 MHz
Internal memory	5.5 MB
Compatible memory cards	Not supported
Type	-
Product color	Aluminum
Form factor	Flip
Personal info management (PIM)	Games, Calendar, To-do list
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	Li-Ion
Talk time (2G)	3 h
Battery capacity	680 mAh
Standby time (2G)	200 h
Display type	TFT
Display diagonal	2.2 \
External display	CSTN
Display resolution	176 x 220 pixels
Display number of colors	65536 colors
External display resolution	96 x 80 pixels
WAP	2.0
Data network	GPRS
SIM card type	MiniSIM
SIM card capability	Single SIM
USB connector type	Mini-USB
Video compression formats	MPEG4

Weight and Dimensions

Depth	13.9 mm
Width	53 mm
Height	98 mm
Weight	95 g
