Motorola V3 Service Manual

6809497A15-A January 31, 2006 23
Level 1 and 2 Service Manual Disassembly
3. Carefully lift the rear housing away from the phone.
4. Lower the rear housing onto the phone. Ensure the screw holes are aligned to
the transceiver PCB assembly.
5. Insert the 6 housing screws and tighten to a torque setting of 1.5 inch pounds
or 16 N/cm (Newton/centimeters). Do not over tighten.
6. Replace the SIM, battery, and battery cover as described in the procedures.
051218o

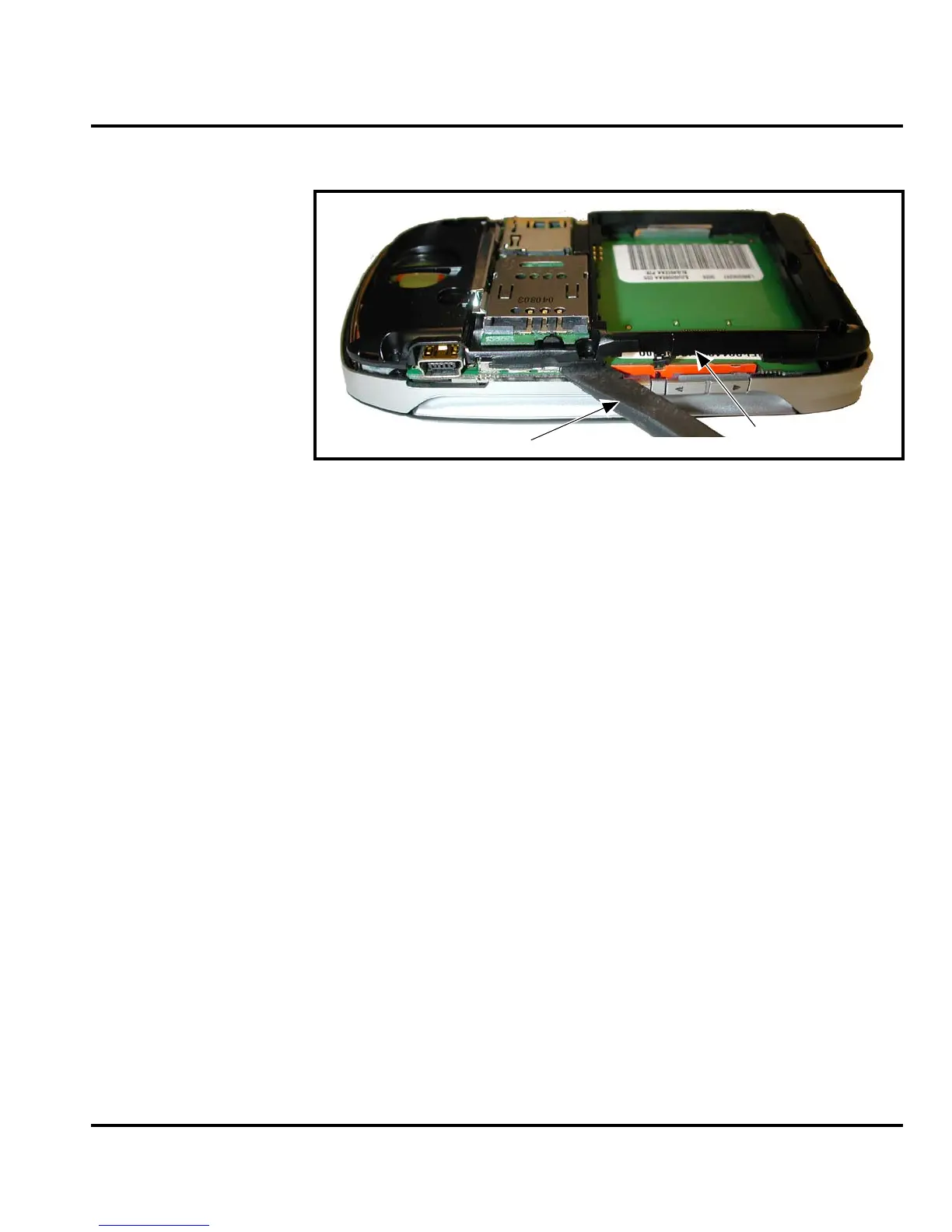

Figure 6. Removing the Rear Housing
Rear housing fram
e
Disassembly tool

Motorola V3 Specifications

General

FM radio	No
Ringer type	Polyphonic
Polyphonic rings quantity	40
Rear camera resolution	640 x 480 pixels
Interface	CE Bus, USB / Bluetooth
Networking type	GSM
Playback formats	MIDI, MP3
Operating frequency	GSM 850 / GSM 900 / GSM 1800 / GSM 1900 MHz
Internal memory	5.5 MB
Compatible memory cards	Not supported
Type	-
Product color	Aluminum
Form factor	Flip
Personal info management (PIM)	Games, Calendar, To-do list
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	Li-Ion
Talk time (2G)	3 h
Battery capacity	680 mAh
Standby time (2G)	200 h
Display type	TFT
Display diagonal	2.2 \
External display	CSTN
Display resolution	176 x 220 pixels
Display number of colors	65536 colors
External display resolution	96 x 80 pixels
WAP	2.0
Data network	GPRS
SIM card type	MiniSIM
SIM card capability	Single SIM
USB connector type	Mini-USB
Video compression formats	MPEG4

Weight and Dimensions

Depth	13.9 mm
Width	53 mm
Height	98 mm
Weight	95 g
