Disassembly V3x
Removing and Replacing the Rear Housing
1. Remove the battery cover, battery, SIM, and antenna as described in the
procedures.
2. Using a Torx driver with a T-6 bit, remove the 6 screws along the sides of the
phone (see Figure 5).
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent electrostatic discharge (ESD) and component damage.
051217o

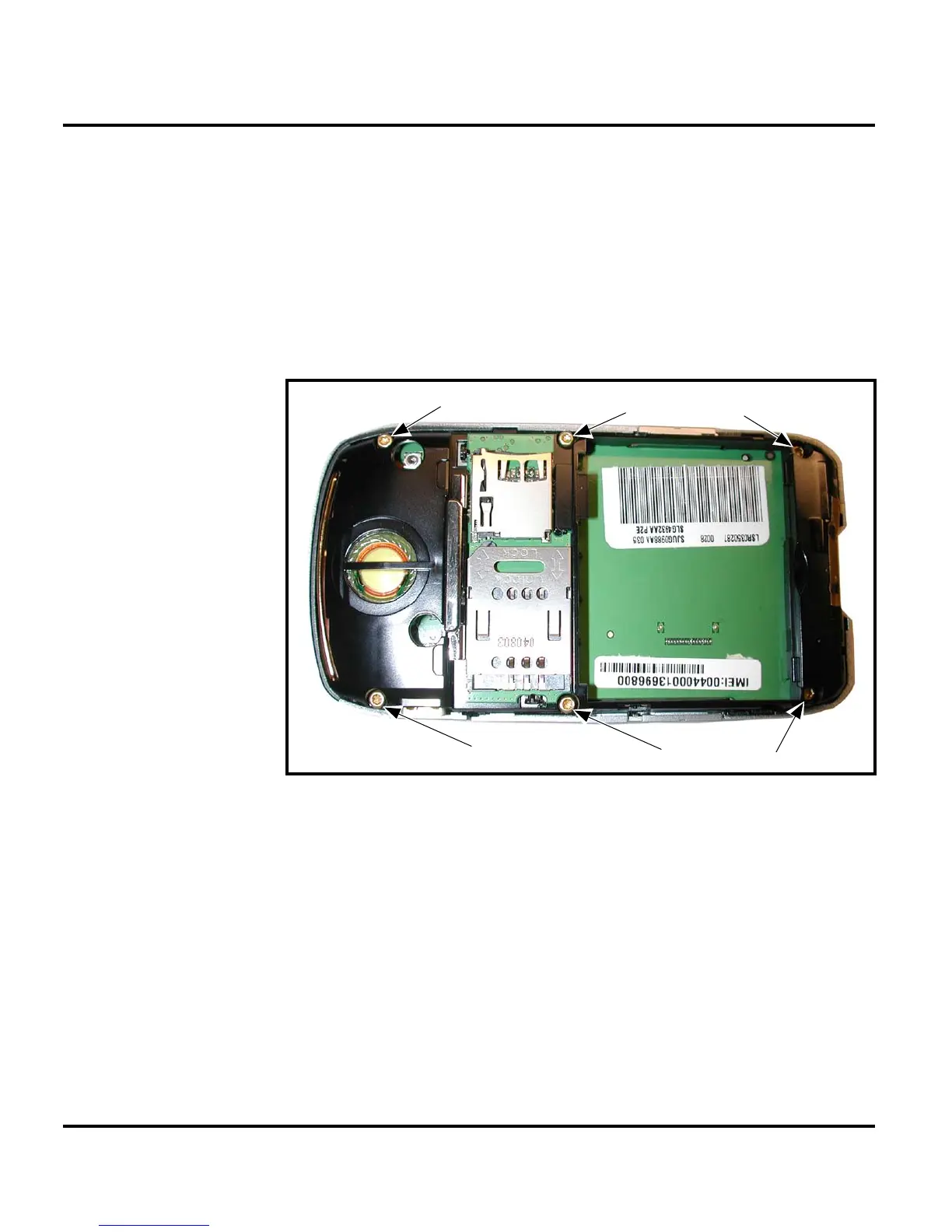

Figure 5. Removing the Rear Housing Screws
Housing screws
Housing screws
Housing screw
Housing screw
