6809497A15-A January 31, 2006 25
Level 1 and 2 Service Manual Disassembly
3. Lift the transceiver board assembly and the keypad switchdome assembly out
of the front housing (see Figure 8).
4. Use the T6 driver to remove the screw in the middle of the transceiver PC board
assembly (see Figure 9). Set the screw aside for re-use.
051222o

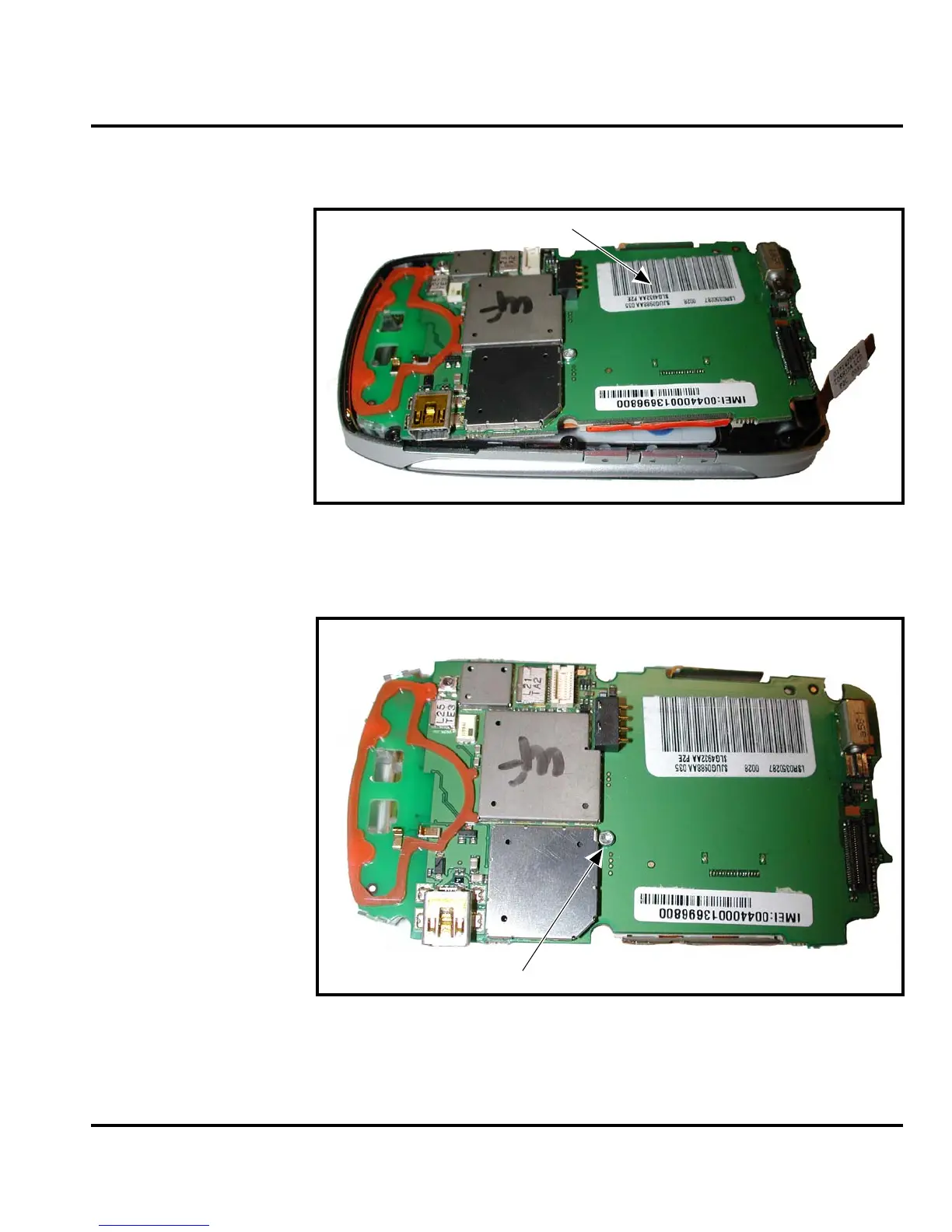

Figure 8. Removing the Transceiver Board Assembly
051233o
Figure 9. Removing Transceiver PC Board Screw
Transceiver PC board
Transceiver PC board screw
