30 January 31, 2006 6809497A15-A
Disassembly V3x
3. Use the plastic tweezers to lift the keypad assembly away from the front
housing (see Figure 14).
4. To replace, insert the keypad into the front housing, ensuring the keys align
properly with the openings in the front housing.
5. Carefully set the keypad volume/smart buttons and voice button assembly onto
the metal switchdome assembly. Ensure the volume/smart key make contact
with the switchdome assembly on the transceiver board when installed.
6. Replace the transceiver board assembly, display flex connector, rear housing
assembly, antenna, SIM, battery, and battery cover as described in the
procedures.
051225o

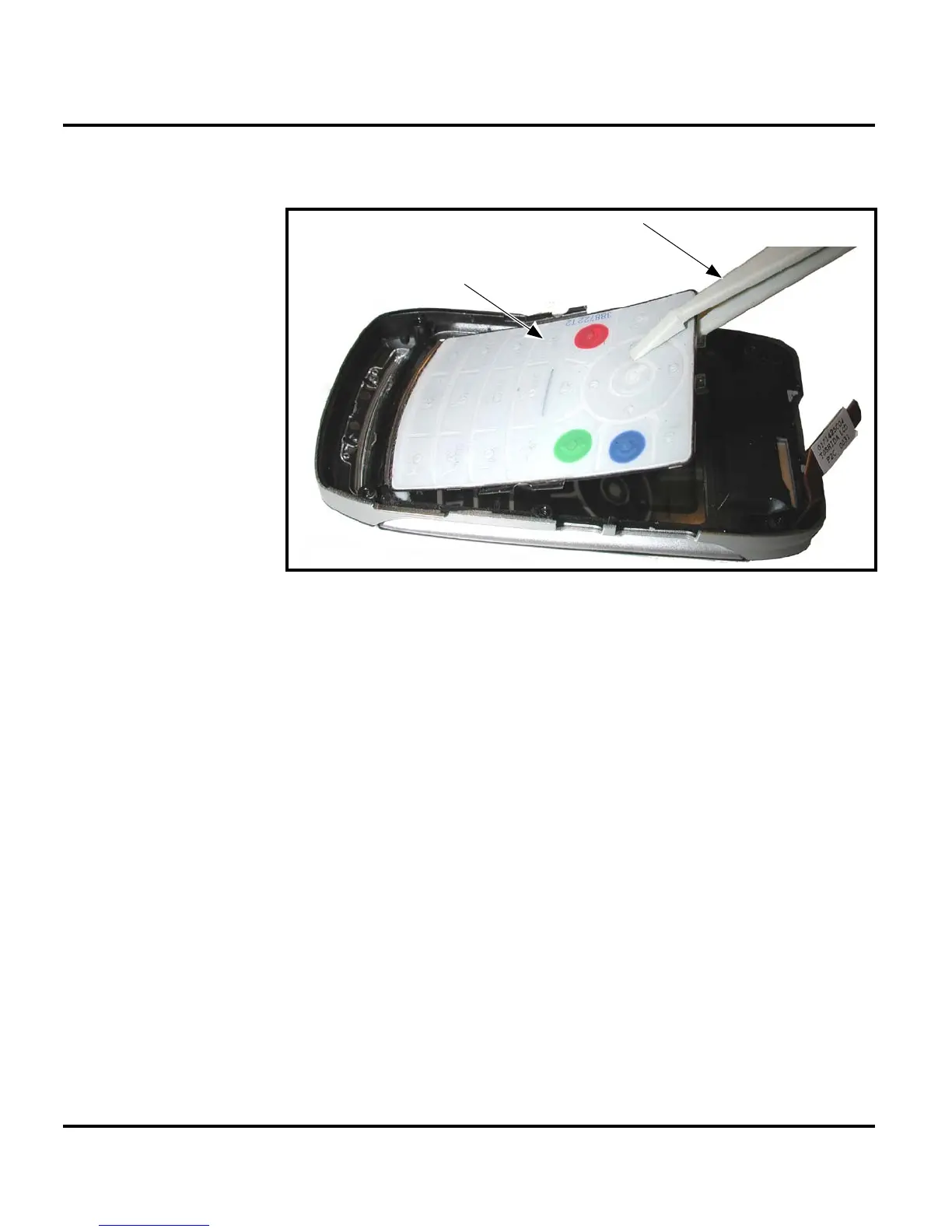

Figure 14. Removing the Keypad
Keypad
Plastic tweezers
