Disassembly V3x
5. Use the pointed end of the disassembly tool to lift zero insertion force (ZIF)
latch that unlocks the ZIF connector socket (see Figure 24).
6. Carefully disconnect the flex connector from the ZIF socket.
7. Carefully lift the display assembly out of the flip assembly (see Figure 25).
040963o

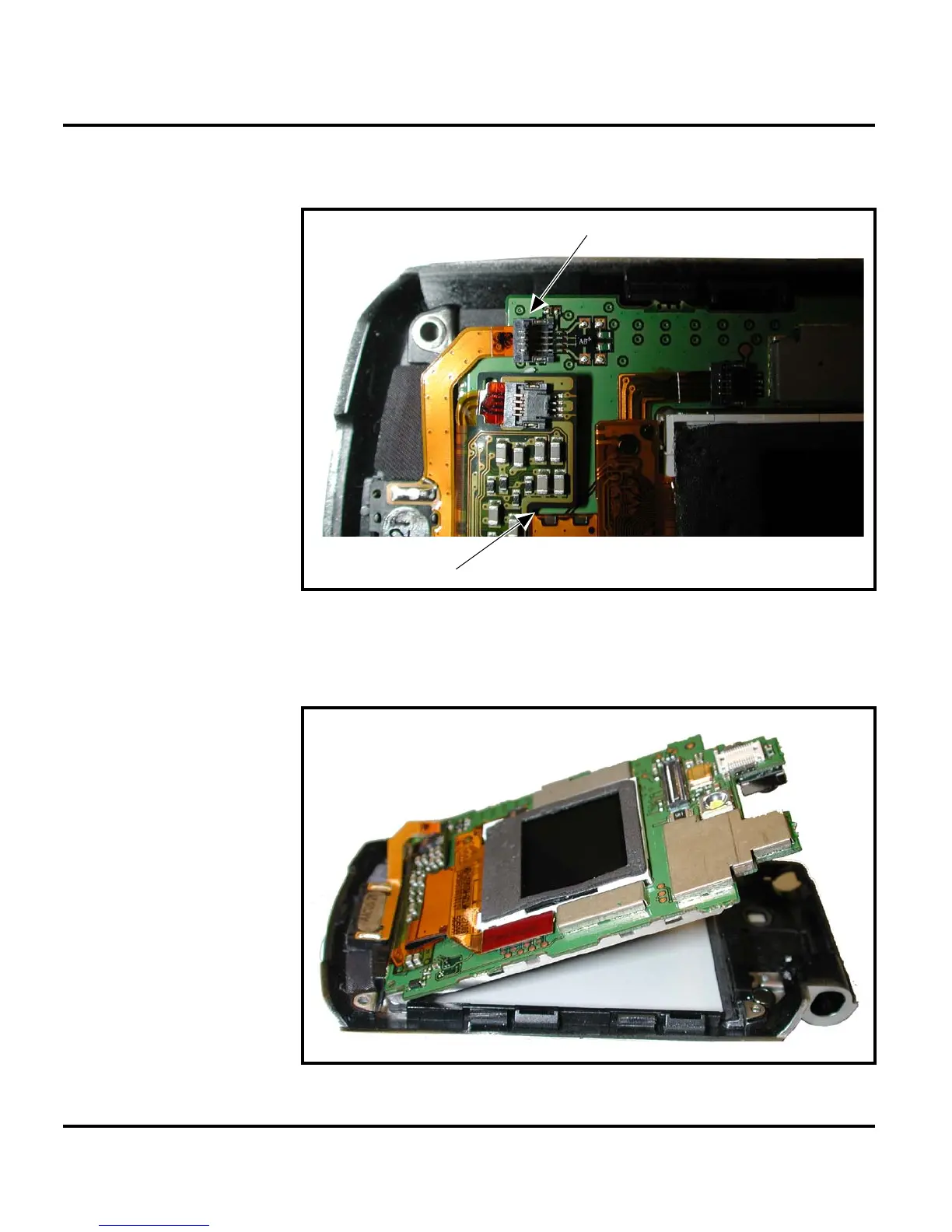

Figure 24. Removing the Display Assembly Flex Connector
040964o
Figure 25. Removing the Display Assembly
Speaker Flex ZIF Socket
Display Assembly
