6809471A72-O April 14, 2004 21
Level 1 and 2 Service Manual Disassembly
Removing and replacing the Battery
1. Remove the battery cover as described in the procedures.
1. Lift the end of the battery and remove it completely (See Figure 5).
2. To replace, align the battery with the battery compartment so the contacts on
the battery match the battery contacts in the phone.
3. Insert the battery, printed arrow first, into the battery compartment and push
down.
4. Insert the ridge at the bottom of the battery housing into the base of the phone,
then push the battery down and snap it into place.
5. Replace the battery cover as described in the procedures.
020201o

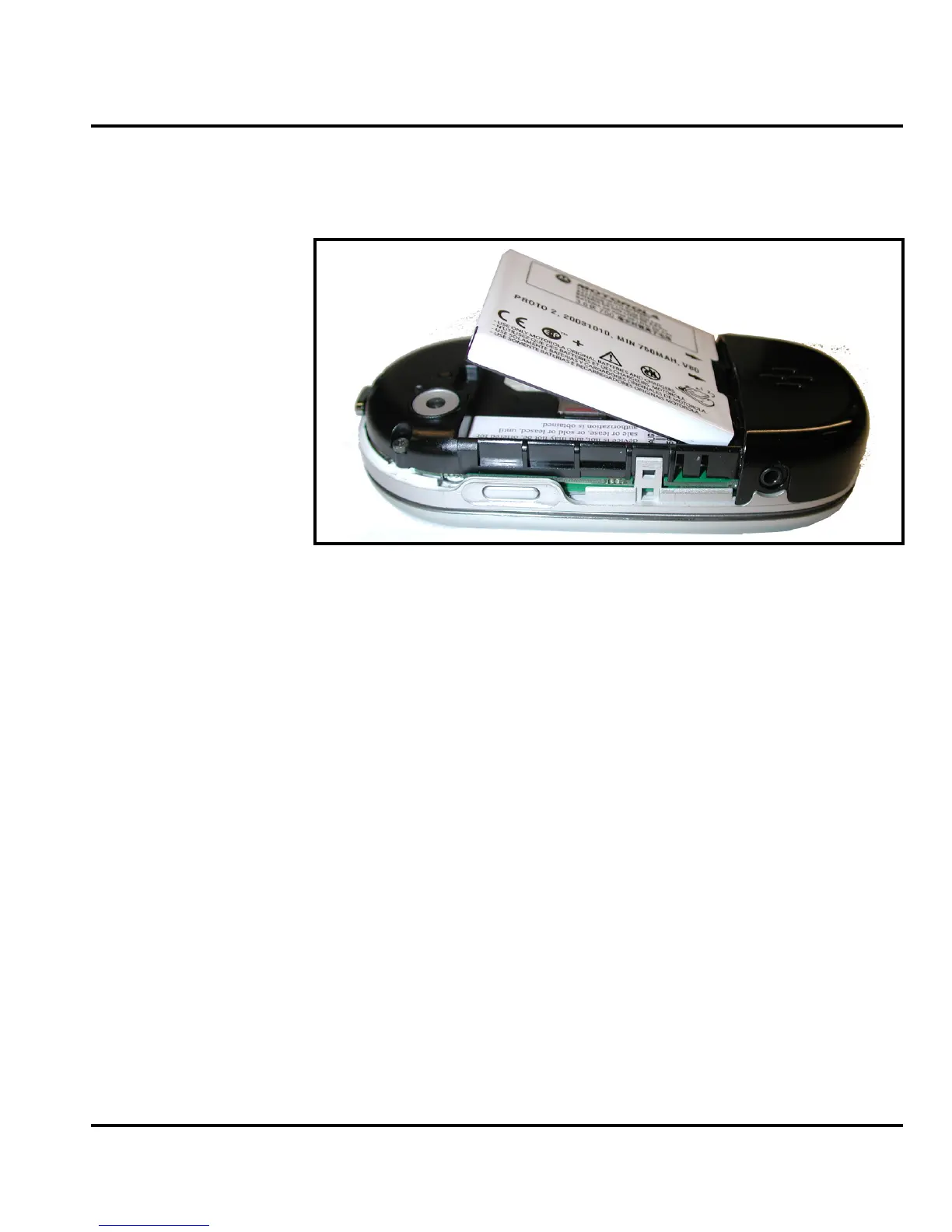

Figure 5. Removing the Battery
E
There is a danger of explosion if the Lithium Ion battery is replaced incorrectly.
Replace only with the same type of battery or equivalent as recommended by the
battery manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
