6809471A72-O April 14, 2004 31
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Blade Assembly
1. Remove the battery cover, battery, SIM, antenna housing, rear housing
assembly, transceiver board assembly, and keypad as described in the
procedures.
2. Using a T3 driver, remove the 4 screws on the back of the blade assembly. Set
the screws aside for reuse (See Figure 15).
3. Carefully turn the blade assembly over and lift the display lens from the blade
assembly.
4. To replace, align the display lens to the blade assembly.
5. Lower the blade assembly into position on the blade assembly.
6. Insert and tighten the 4 blade assembly screws.
Note: there are 2 short screws and two long screws. The 2 short screws are inserted
near the tip of the blade and the 2 longer screws are inserted near the keypad.
7. Replace the transceiver board, rear housing assembly, antenna, SIM, battery,
and battery cover as described in the procedures.
040179o

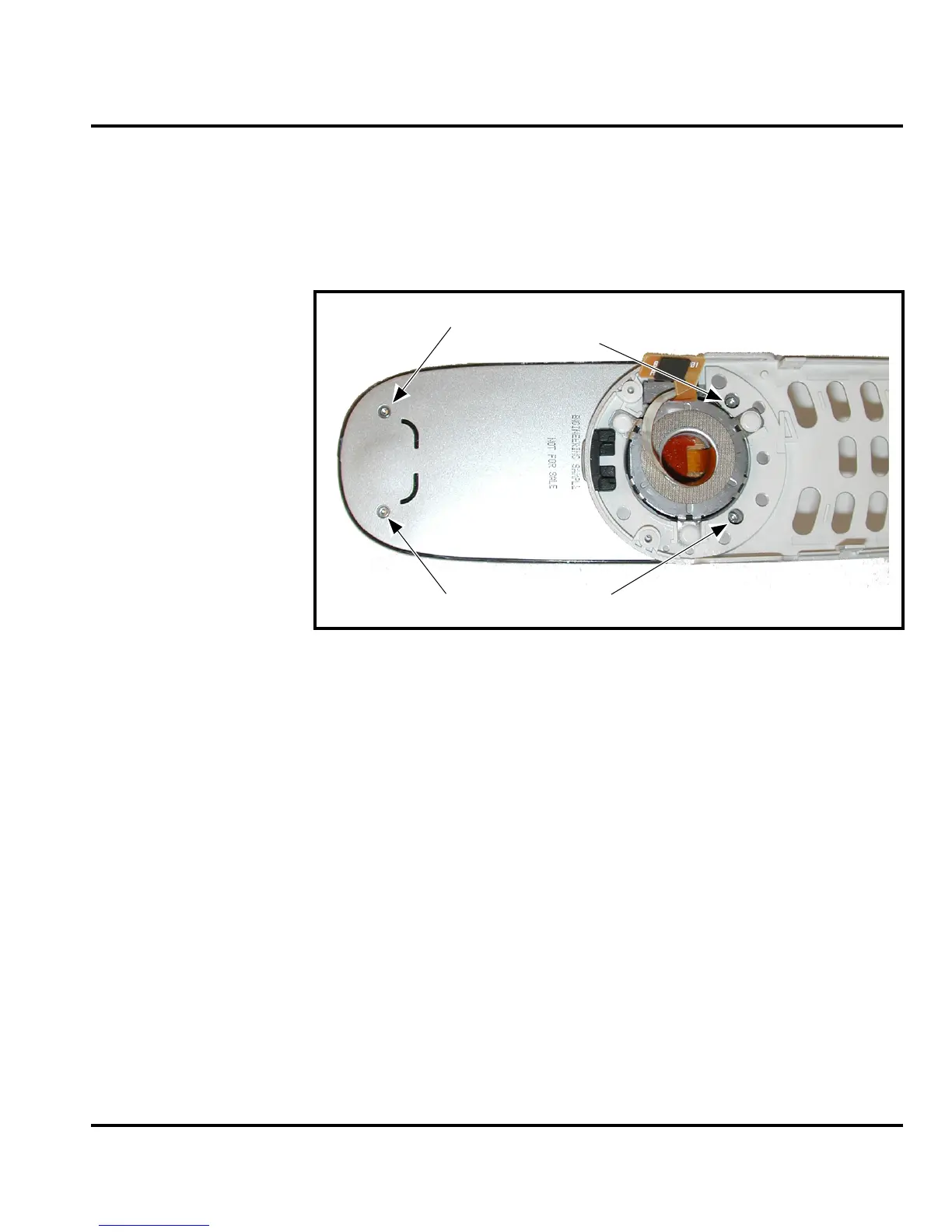

Figure 15. Removing the Blade Assembly
Long
Screw
Short
Screw
Short
Screw
Long
Screw
