6809471A72-O April 14, 2004 23
Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Antenna Housing
1. Remove the battery cover, battery, and SIM as described in the procedures.
2. Use the disassembly tool to release the antenna housing latches at the sides
of the antenna housing.
3. Lift the bottom end of the antenna housing off the phone followed by the top
end (See Figure 7).
4. When the antenna latches are completely disengaged, lift the antenna housing
off of the phone to remove.
5. To replace, carefully align the antenna housing to the phone and press the
antenna housing onto the phone.
6. Ensure all antenna housing latches are engaged.
7. Replace the battery and battery cover as described in the procedures.
040171o

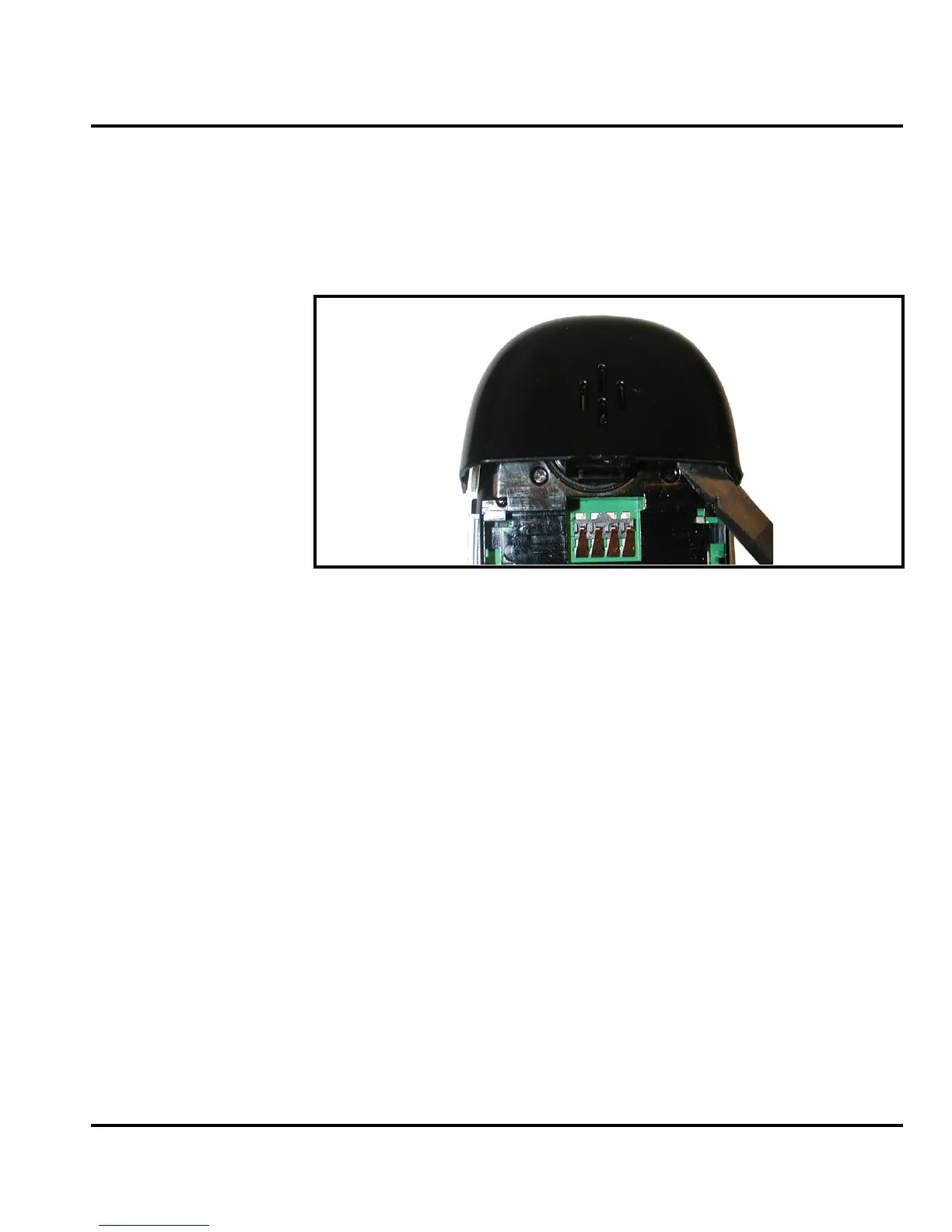

Figure 7. Removing the Antenna
G
Ensure antenna housing latches are properly engaged to prevent damage to the
antenna or antenna housing.
