Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-26
NOTE
Note: MM=month, DD=day, HH=hour, mm=minutes, from
the system time.
The log file includes the following information:
Index An event index assigned to identify the event sequence.
Bootup
Number
This field shows how many times the Moxa switch has been rebooted or cold started.
Date The date is updated based on how the current date is set on the System Settings page.
Time The time is updated based on how the current time is set on the System Settings page.
System
Startup Time
The system startup time related to this event.
Event Events that have occurred.
Switch Reset Button
The Moxa switch reset button can be used to quickly reset the switch’s configuration, and save the current
configuration and log files to the ABC-02. Press the Reset button on top of the EDS switch to back up the current
system configuration files and event logs to the ABC-02.
NOTE
DO NOT remove the ABC
-02 when performing an upgrade, backup, or restore.

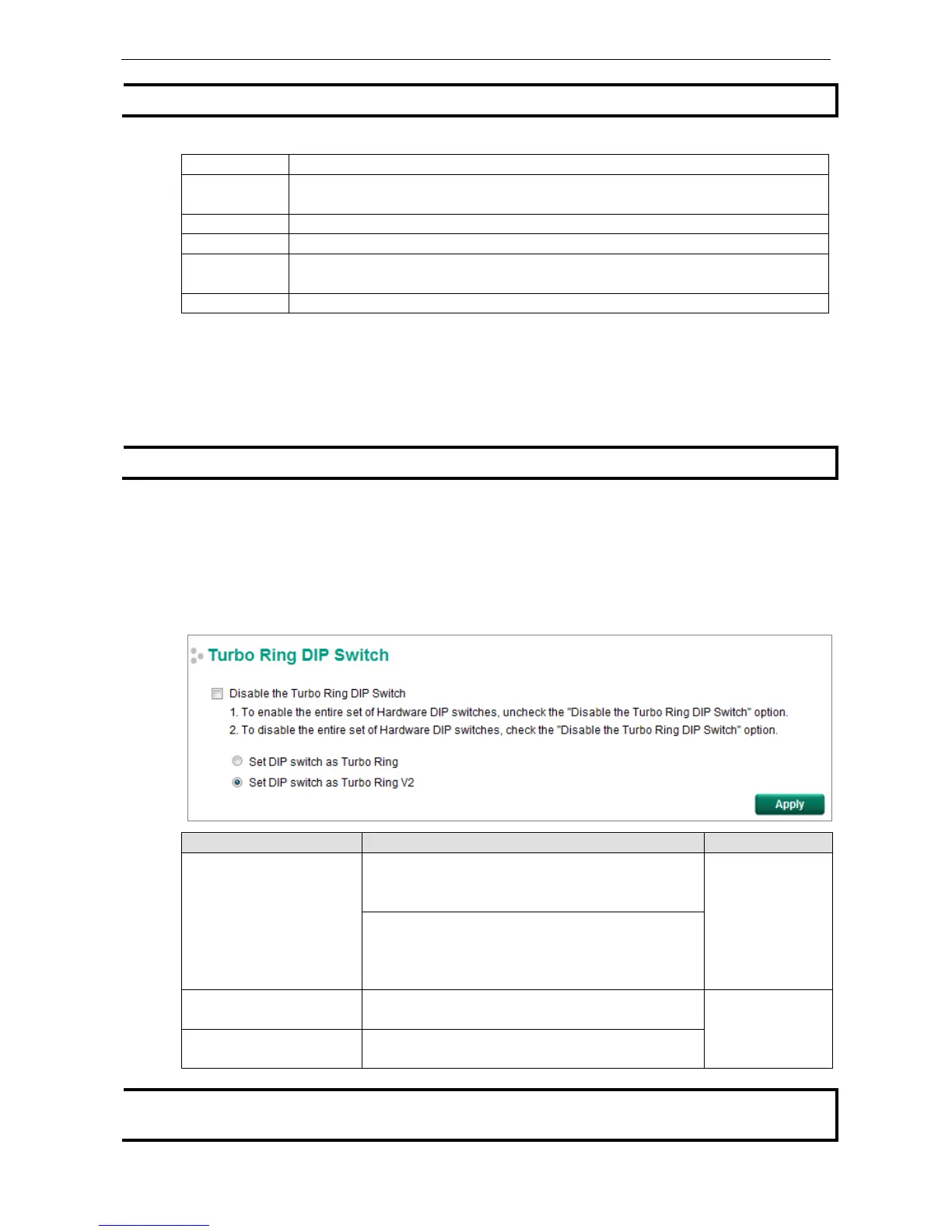

Turbo Ring DIP Switch
The Turbo Ring DIP Switch page allows users to disable the 4th DIP switch located on the EDS’s outer casing.
The default is enabled with Turbo Ring v2 protocol. Once the user changes the 4th hardware DIP switch
configuration to ON, the switch will start to initiate the Turbo Ring redundancy protocol based on the
configuration. The detailed description is given below:
Setting Description Factory Default
Disable the Turbo Ring DIP
switch
Unchecked:
The Turbo Ring protocol will be activated automatically
when the 4th DIP switch is moved to the ON position.
unchecked
Checked:
The Turbo Ring protocol will not be activated
automatically, regardless of the position of the 4th DIP
switch.
Set DIP switch as Turbo Ring
If the DIP switch is enabled, Turbo Ring protocol will be
enabled when the DIP switch is moved to the ON position.
Set DIP switch as
Turbo Ring v2
Set DIP switch as Turbo Ring
v2
If the DIP switch is enabled, Turbo Ring v2 protocol will be
enabled when the DIP switch is moved to the ON position.
NOTE
If the 4th DIP switch (Turbo Ring) is configured to ON, you will not be able to disable the Turbo Ring DIP switch
from the web interface, console, or Telnet.
