Moxa Technologies EDS-518E User Manual

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-53
Querier
Setting Description Factory Default
Disable Disables the Moxa switch’s querier function. V1/V2
V1/V2 and V3 checkbox
V1/V2: Enables the switch to send IGMP snooping version 1 and
2 queries
V3: Enables the switch to send IGMP snooping version 3 queries
Static Multicast Querier Port
Setting Description Factory Default
Select/Deselect Select the ports that will connect to the multicast routers. These
ports will receive all multicast packets from the source. This
option is only active when IGMP Snooping is enabled.
Disabled
NOTE
If a router or layer 3 switch
is connected to the network, it will act as the Querier, and consequently this
Querier option will be disabled on all Moxa layer 2 switches.
If all switches on the network are Moxa layer 2 switches, then only one layer 2 switch will act as Querier.
NOT
E
Multicast Fast Forwarding Mode is one function of V
-ON technology that
should be enabled in layer 2 and layer
3 switches. For
a detailed introduction, refer to
Moxa Managed Ethernet Switch Redundancy Protocol (UI 2.0)
User’s Manual
.

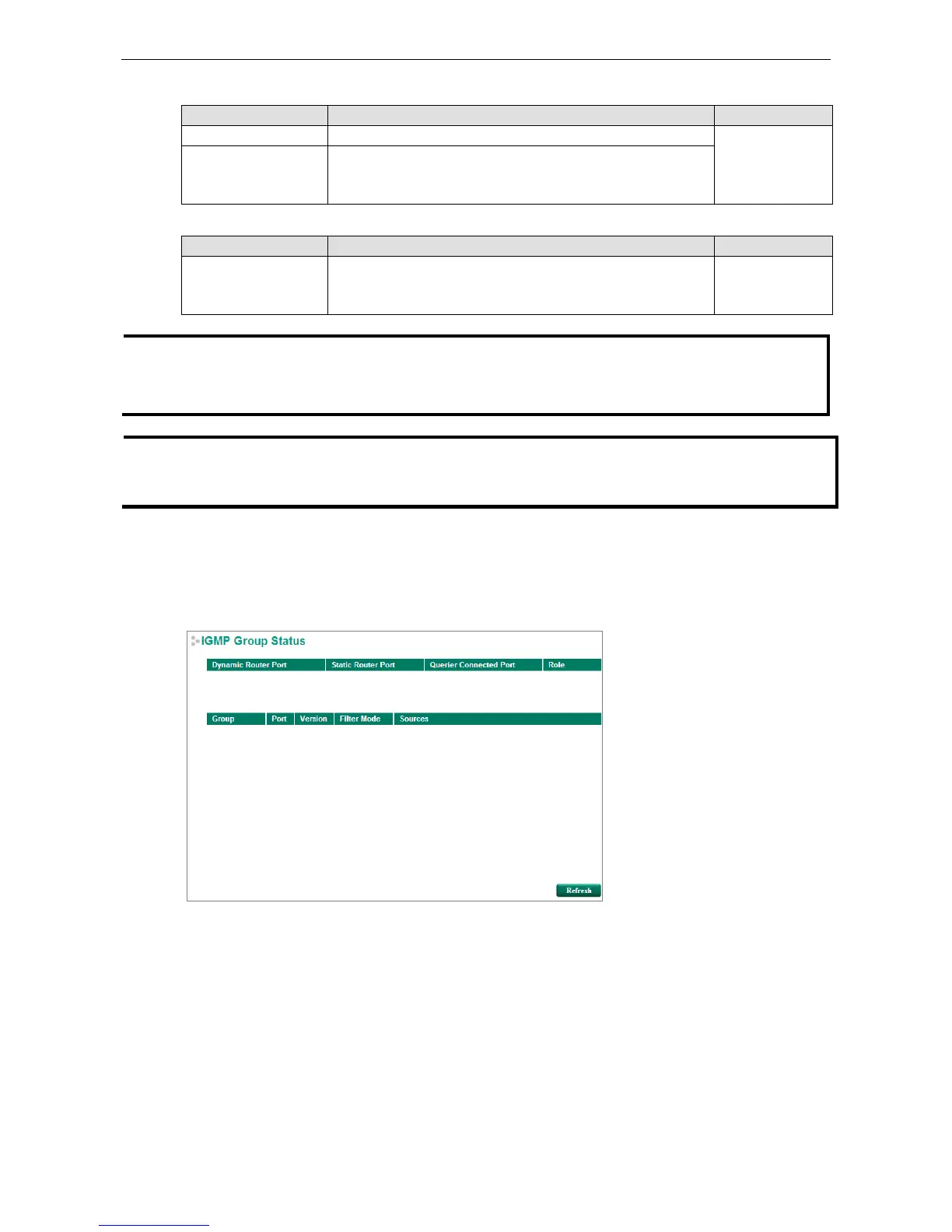

IGMP Group Status
The Moxa switch displays the current active IGMP groups that were detected. On this page, you can view IGMP
group settings by VLAN ID.
The information shown in the table includes:
• Dynamic Router Port: Indicates that a multicast router connects to or sends packets from these port(s).
• Static Router Port: Displays the static multicast querier port(s).
• Querier Connected Port: Displays the port that is connected to the querier.
• Role: Indicates if the switch is a querier. Displays Querier or Non-Querier.
• Group: Displays the multicast group addresses.
• Port: Displays the port that receives the multicast stream or the port the multicast stream is forwarded to
• Version: Displays the IGMP Snooping version.
• Filter Mode: Indicates that the multicast source address is included or excluded. Displays Include or Exclude
when IGMP v3 is enabled
• Sources: Displays the multicast source address when IGMP v3 is enabled
