FDX Flow Ctrl
This setting enables or disables flow control for the port when the port’s Speed is set to Auto. The final result
will be determined by the Auto process between the Moxa switch and connected devices.
Setting Description Factory Default
Enable Enables flow control for this port when the port’s Speed is set to
Auto.
Disabled
Disable
Disables flow control for this port when the port’s Speed is set
to Auto.
MDI/MDIX
Setting Description Factory Default
Auto Allows the port to auto-detect the port type of the connected
Ethernet device and change the port type accordingly.
Auto
MDI Choose MDI or MDIX if the connected Ethernet device has
trouble auto-negotiating for port type.
MDIX
For the Gigabit ports, MDI/MDIX is only Auto mode.

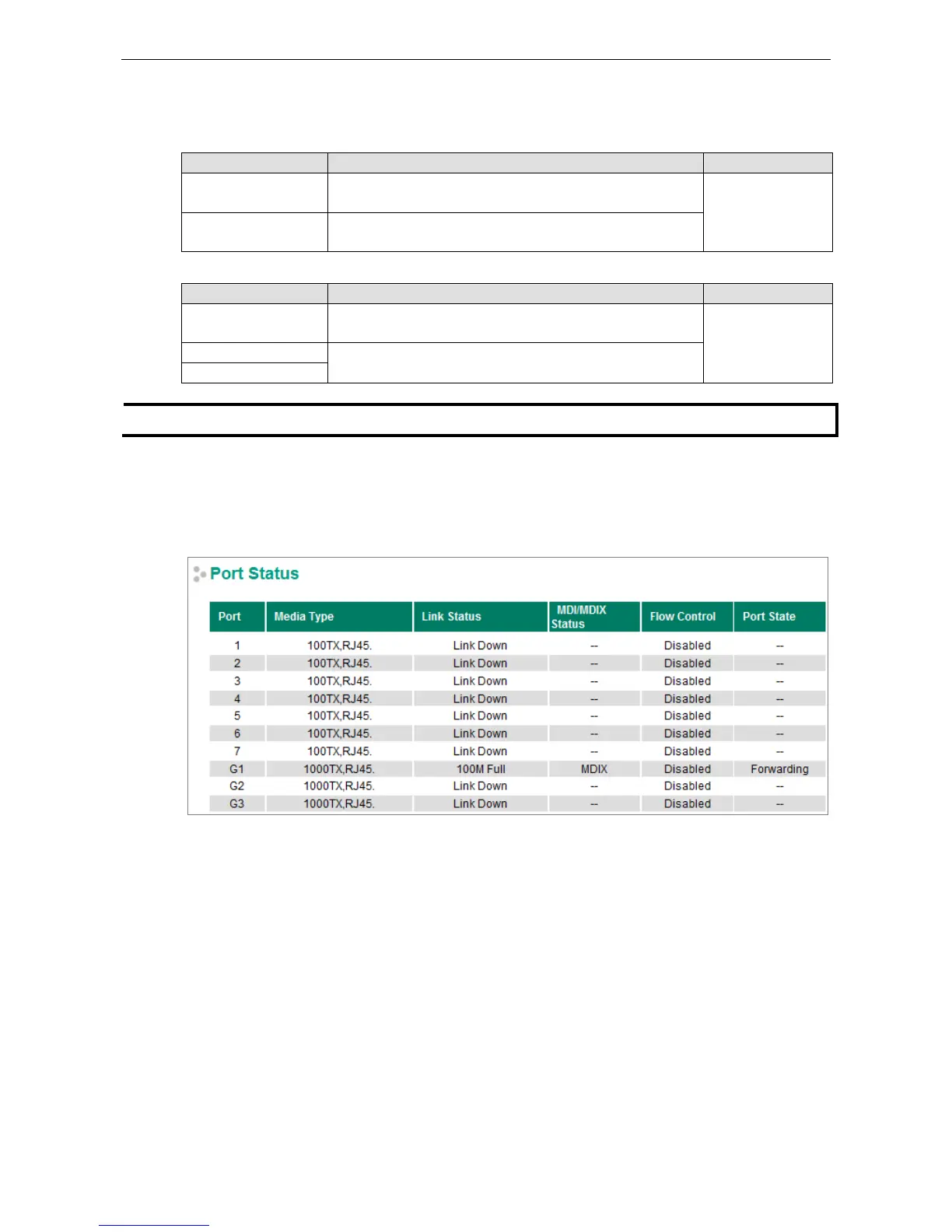

Port Status
The following table shows the status of each port, including the media type, link status, flow control, and port
state.
Link Aggregation
Link aggregation involves grouping links into a link aggregation group. A MAC client can treat link aggregation
groups as if they were a single link.
The Moxa switch’s port trunking feature allows devices to communicate by aggregating up to 4 trunk groups,
with a maximum of 8 ports for each group. If one of the 8 ports fails, the other seven ports will automatically
provide backup and share the traffic.
Port trunking can be used to combine up to 8 ports between two Moxa switches. If all ports on both switches
are configured as 100BaseTX and they are operating in full duplex, the potential bandwidth of the connection
will be 1600 Mbps.
