Moxa Technologies EDS-518E User Manual

Managed Ethernet Switch (UI_2.0_FW_5.x) Featured Functions
3-59
TOS/DSCP Inspection
Setting Description Factory Default
Enable/Disable Enables or disables the Moxa switch for inspecting Type of
Server (TOS) bits in the IPV4 frame to determine the priority of
each frame.
Enable
COS Inspection
Setting Description Factory Default
Enable/Disable Enables or disables the Moxa
switch for inspecting 802.1p COS
tags in the MAC frame to determine the priority of each frame.
Enable
Priority
Setting Description Factory Default
0 to 7 The port priority has 8 priority queues: from 0 (lowest) to 7
(highest)
3
NOTE
The priority of
an ingress frame is determined in the following order:
1. ToS/DSCP Inspection
2. CoS Inspection
3.
Priority
NOTE
The designer can enable these classifications individually or in combination. For instance, if a “hot” higher
priority port is required for a network design,
TOS/DSCP Inspection and Cos Inspection
can be disabled.
This setting leaves only port default priority active, which results in all ingress frames being assigned the same
priority on that port.

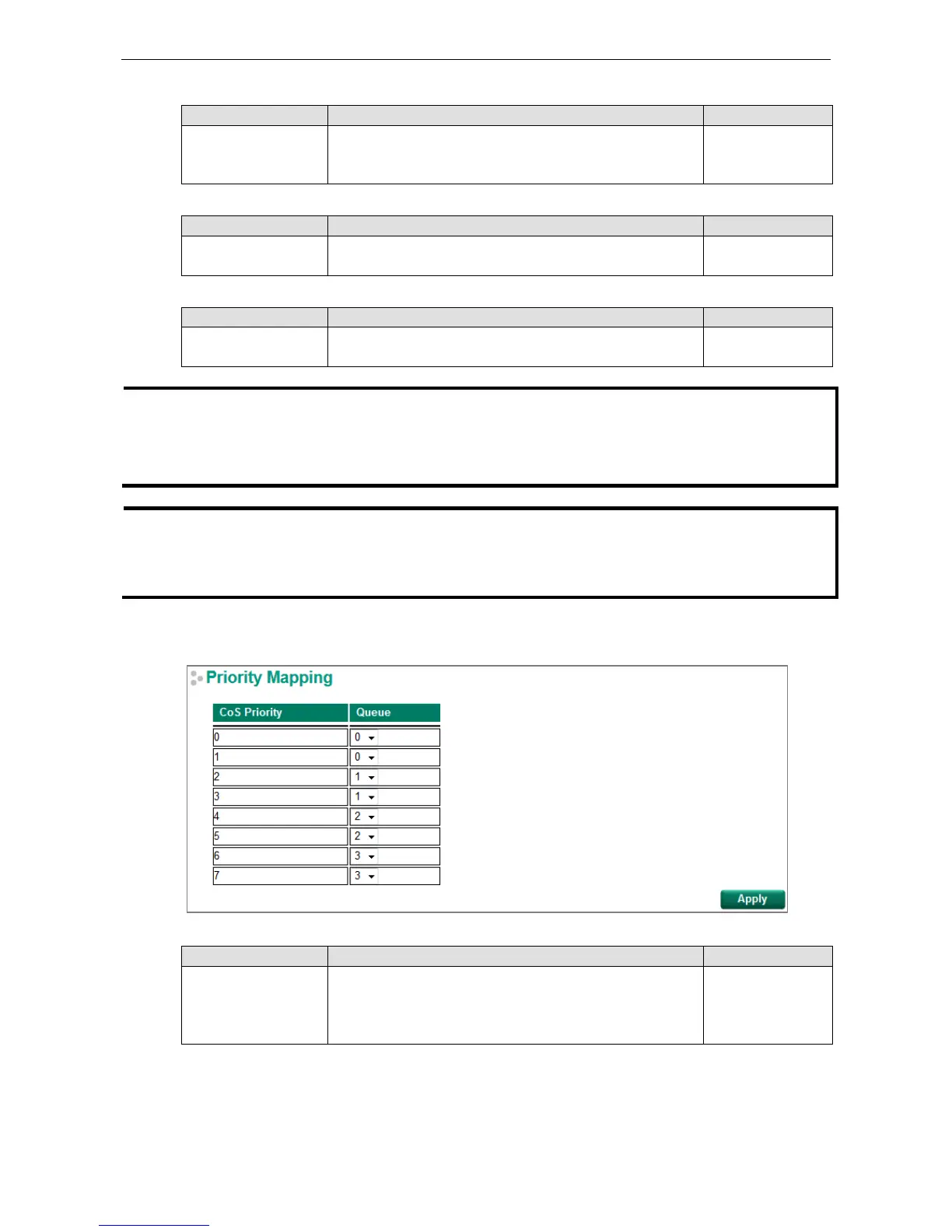

Priority Mapping (Type 1)
CoS Priority and Queues
Setting Description Factory Default
0 to 3 Maps different CoS values to 4 different egress queues. CoS 0, 1: 0
CoS 2, 3: 1
CoS 4, 5: 2
CoS 6, 7: 3
