EDS-508A/505A Series User’s Manual Featured Functions
3-86

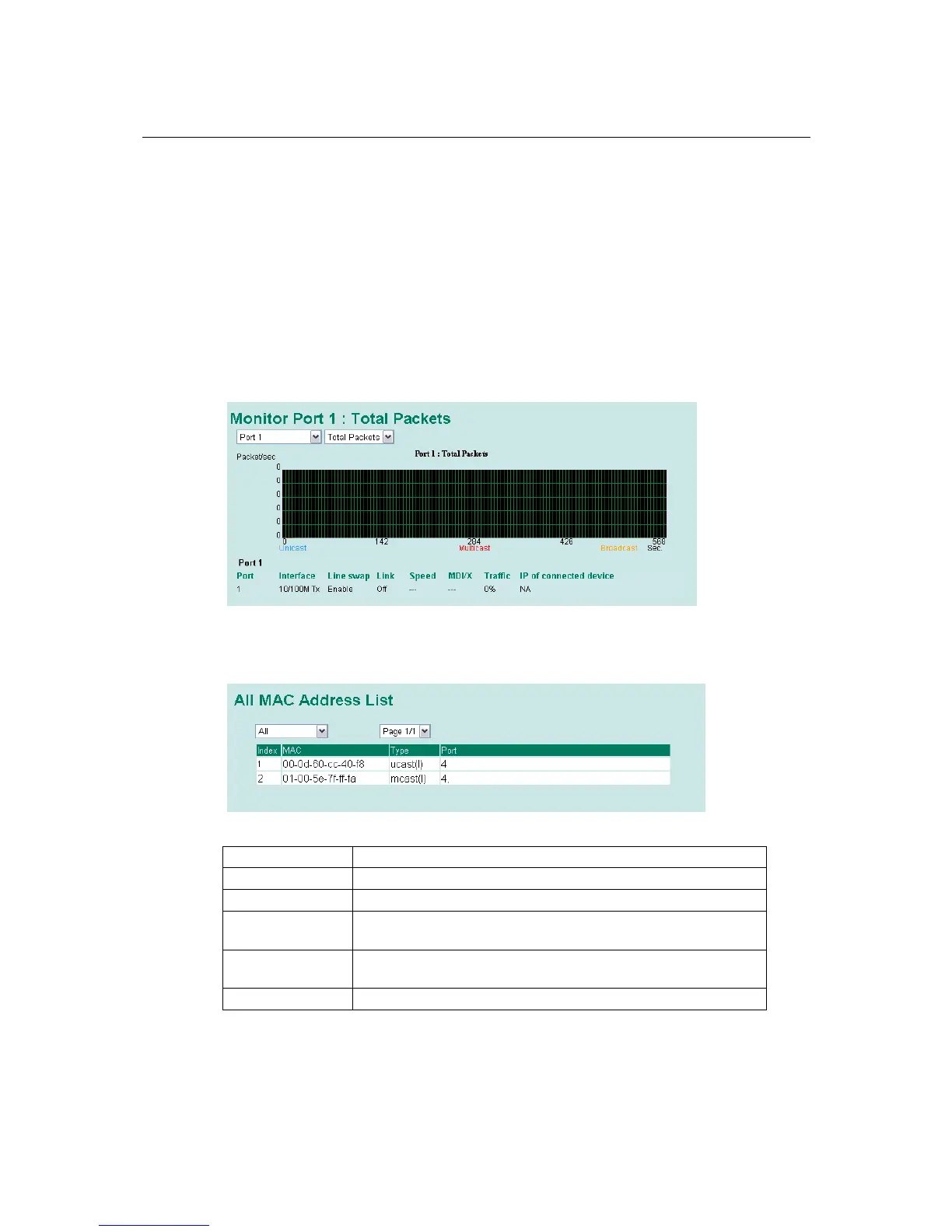

Monitor by Port
Access the Monitor by Port function by selecting ALL 10/100M or Port i, in which i= 1, 2, …,
from the left pull-down list. The Port i options are identical to the Monitor by System function
discussed above, in that users can view graphs that show All Packets, TX Packets, RX Packets, or
Error Packets activity, but in this case, only for an individual port.
The All Ports option is
essentially a graphical display of the individual port activity that can be viewed with the Console
Monitor function discussed above. The All Ports option shows three vertical bars for each port.
The height of the bar represents Packets/s for the type of packet, at the instant the bar is being
viewed. That is, as time progresses, the height of the bar moves up or down so that the user can
view the change in the rate of packet transmission. The blue colored bar shows Unicast packets,
the red colored bar shows Multicast packets, and the orange colored bar shows Broadcast packets.
The graph is updated every few seconds, allowing the user to analyze data transmission activity in
real-time.
Using the MAC Address Table
This section explains the information provided by the EDS’s MAC address table.
The MAC Address table can be configured to display the following EDS MAC address groups.
ALL Select this item to show all EDS MAC addresses
ALL Learned Select this item to show all EDS Learned MAC addresses
ALL Static Lock Select this item to show all EDS Static Lock MAC addresses
ALL Static Select this item to show all EDS Static/Static Lock /Static Multicast
MAC addresses
ALL Static
Multicast
Select this item to show all EDS Static Multicast MAC addresses
Port x Select this item to show all MAC addresses of dedicated ports
