EDS-508A/505A Series User’s Manual Featured Functions
3-57
After proper configuration:
Packets from device A will travel through “Trunk Port 3” with tagged VID 5. Switch B will
recognize its VLAN, pass it to port 6, and then remove tags received successfully by device G,
and vice versa.
Packets from device B and C will travel through “Trunk Port 3” with tagged VID 2. Switch B
recognizes its VLAN, passes it to port 4, and then removes tags received successfully by device
F, and vice versa.
Packets from device D will travel through “Trunk Port 3” with tagged VID 3. Switch B will
recognize its VLAN, pass to port 5, and then remove tags received successfully by device H.
Packets from device H will travel through “Trunk Port 3” with PVID 3. Switch A will
recognize its VLAN and pass it to port 2, but will not remove tags received successfully by
device D.
Packets from device E will travel through “Trunk Port 3” with tagged VID 4. Switch B will
recognize its VLAN, pass it to port 7, and then remove tags received successfully by device I.
Packets from device I will travel through “Trunk Port 3” with tagged VID 4. Switch A will
recognize its VLAN and pass it to port 2, but will not remove tags received successfully by
device E.
Configuring Virtual LAN

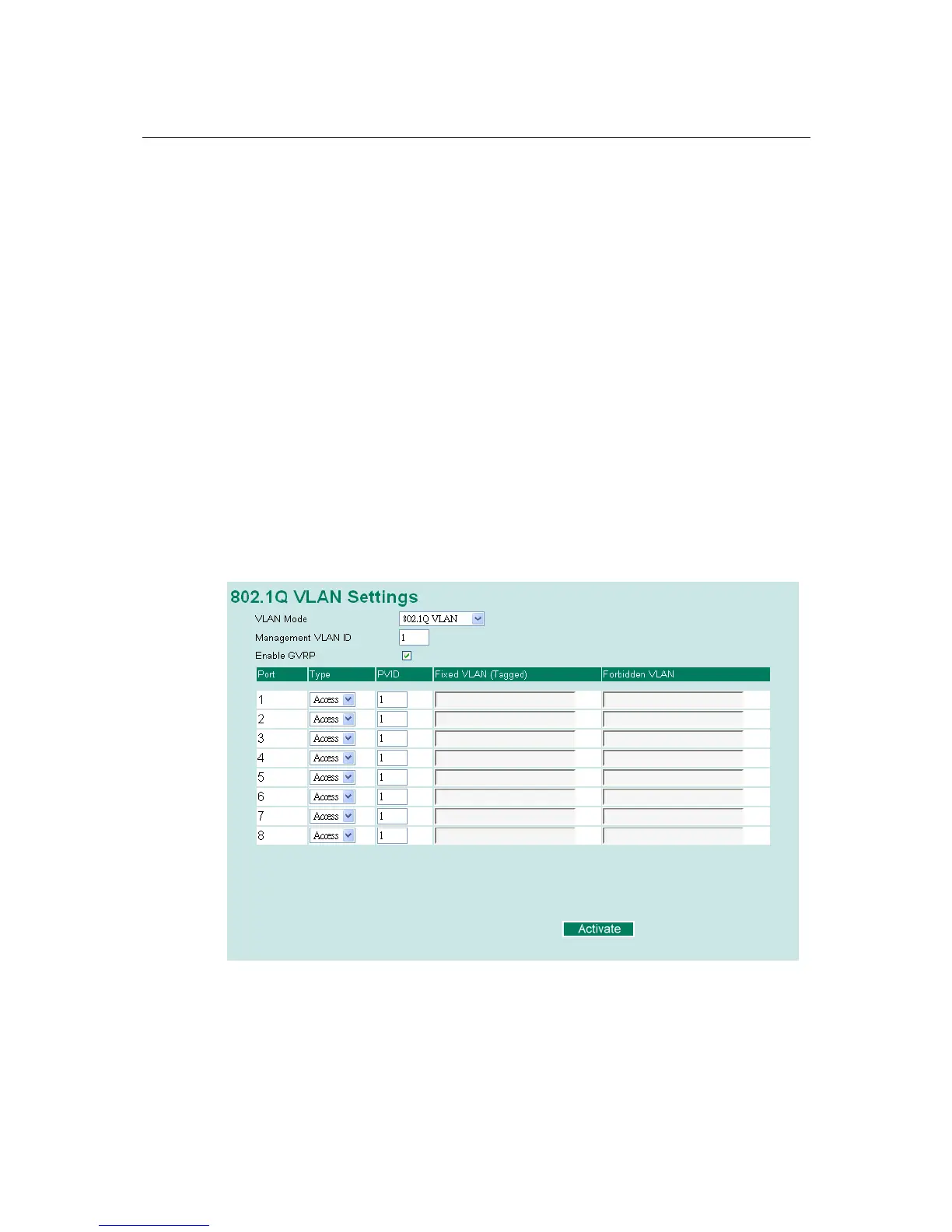

VLAN Settings
To configure the EDS’s 802.1Q VLAN, use the VLAN Setting page to configure the ports.
