DIN-Rail, Wall Mounting

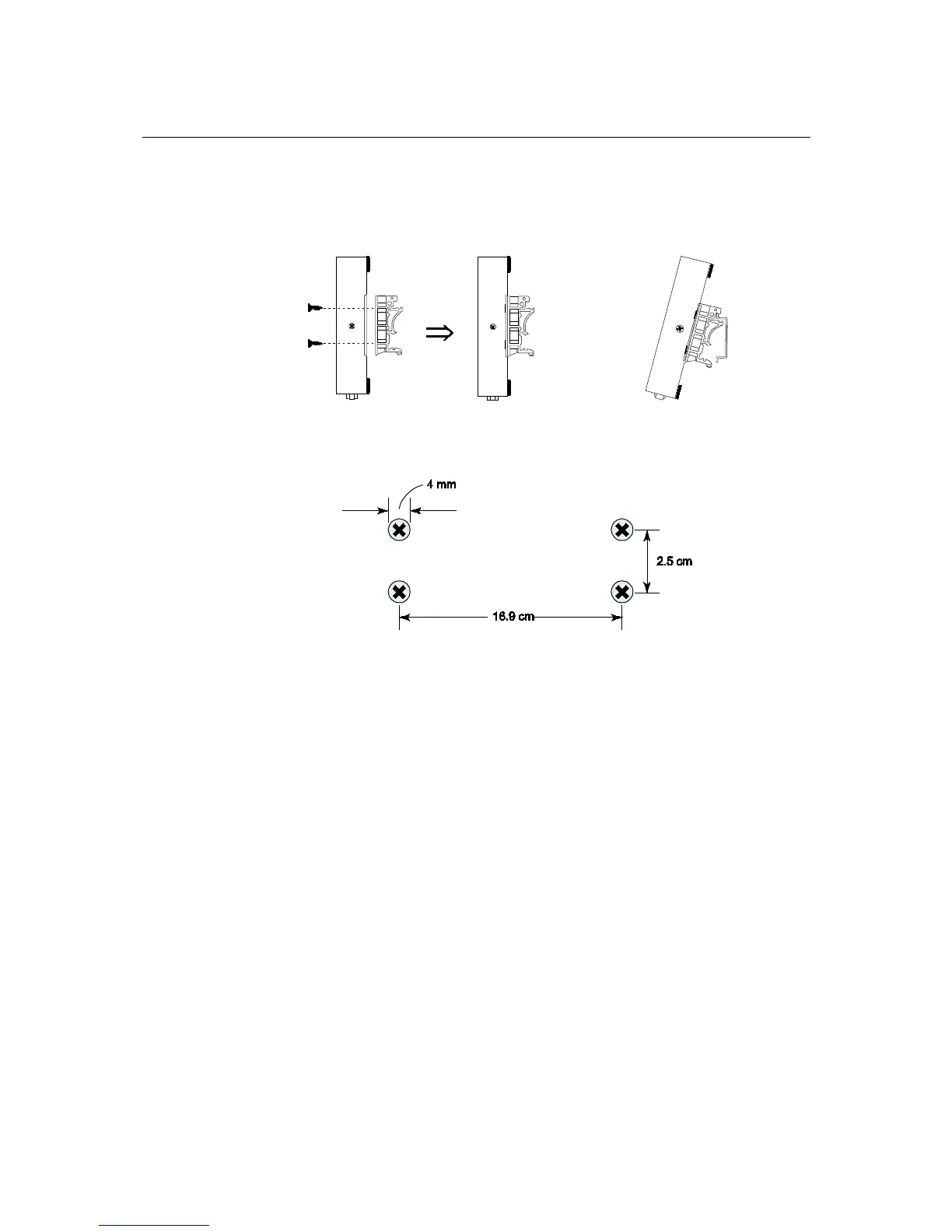

Mounting on a DIN-rail: You will first need to attach the mounting plates (included) to the unit.
Attach the DIN-rail accessories to the mounting plates and latch the unit onto the DIN-
rail as shown.
The DIN-rail kit is ordered separately.
Mounting on the wall: You will first need to attach the mounting plates to the unit. Place four
screws in the wall and slide the unit onto the screws as shown.
The head of each screw should be
6 mm or less in diameter, and the shaft should be 3 mm or less in
diameter. Make sure to leave about 5 mm of space between the head and the wall.
