MGate MB3000 User’s Manual Hardware: MB3270, MB3270I
7-6
DIN-Rail, Wall Mounting

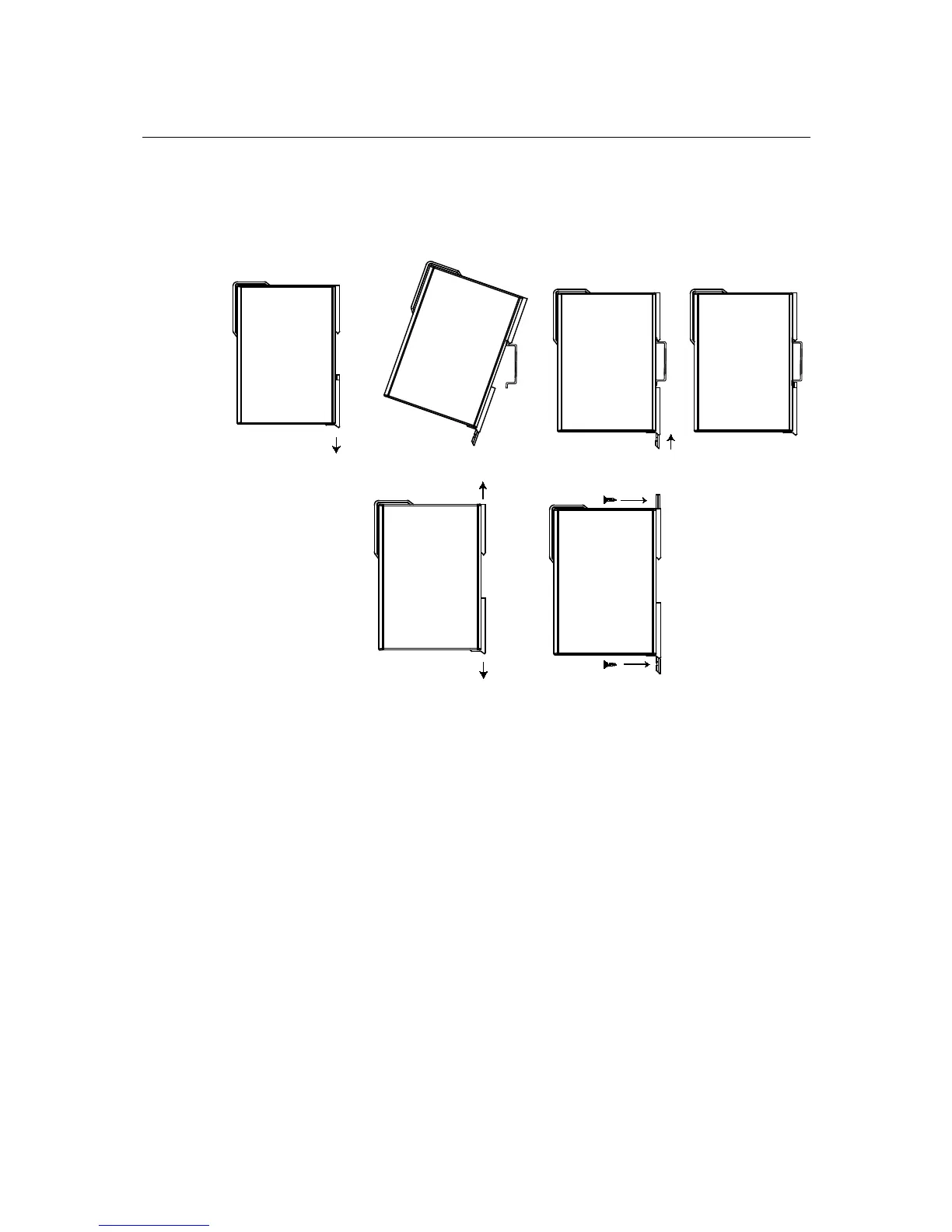

There are two sliders on the back of the unit for DIN-rail and wall mounting.
Mounting on a DIN-rail: Pull out the bottom slider, latch the unit onto the DIN-rail, and push the
slider back in.
Mounting on the wall: Pull out both the top and bottom sliders and align the screws accordingly.
