MGate MB3000 User’s Manual Configuring the Modbus Gateway
9-28

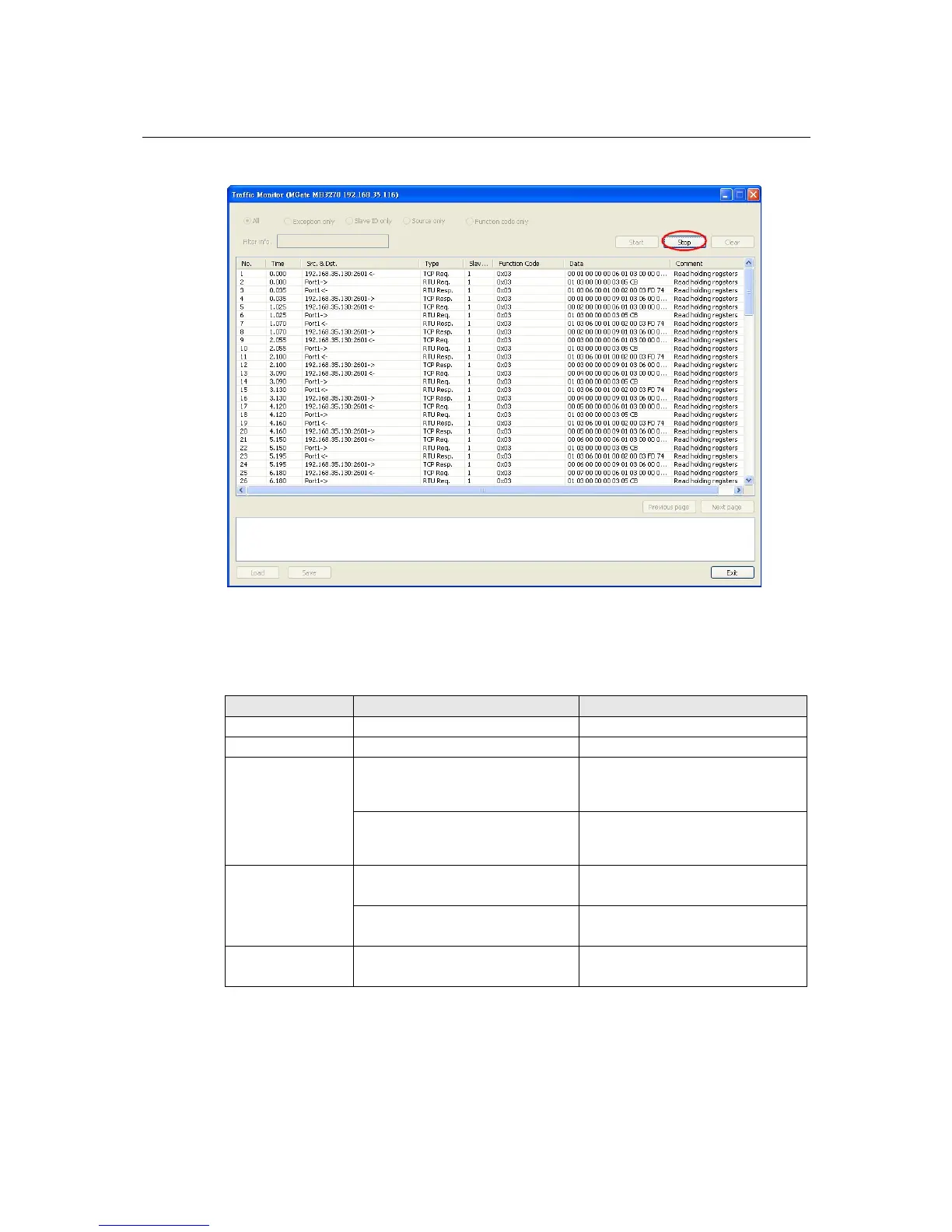

To stop capturing the log, press the Stop button.
Filter Traffic Information
By default, all events are displayed in the traffic monitor window. MGate Manager also allows the
data to be filtered so only the relevant information is displayed. The filter is selected using the radio
buttons and customized using the “Filter info” field, as follows:
Filter
Customization
Description
All
-
Show all traffic
Exception only
-
Show only exceptions
SID only
VSID=< virtual slave ID>
(e.g., “VSID=1”)
Show only traffic to and from the
specified “virtual” slave ID (as
assigned in the MGate’s slave ID map)
RSID=< actual slave ID>
(e.g., “RSID=1”)
Show only traffic to and from the
specified “actual” slave ID (as
assigned on the device itself)
Source only
IP=<IP address>
(e.g., “IP=192.168.1.2”)
Show only traffic sent from the
specified IP address
PORT=< MGate serial port number>
(e.g., “PORT=1”)
Show only traffic sent from the
specific serial port on the MGate
Function code only
FCODE=<Modbus function code>
(e.g., “FCODE=3”)
Show only traffic for a specific
function code
