Moxa Technologies MGate MB3000 Series User Manual

MGate MB3000 User’s Manual Hardware: MB3170, MB3170I
6-6

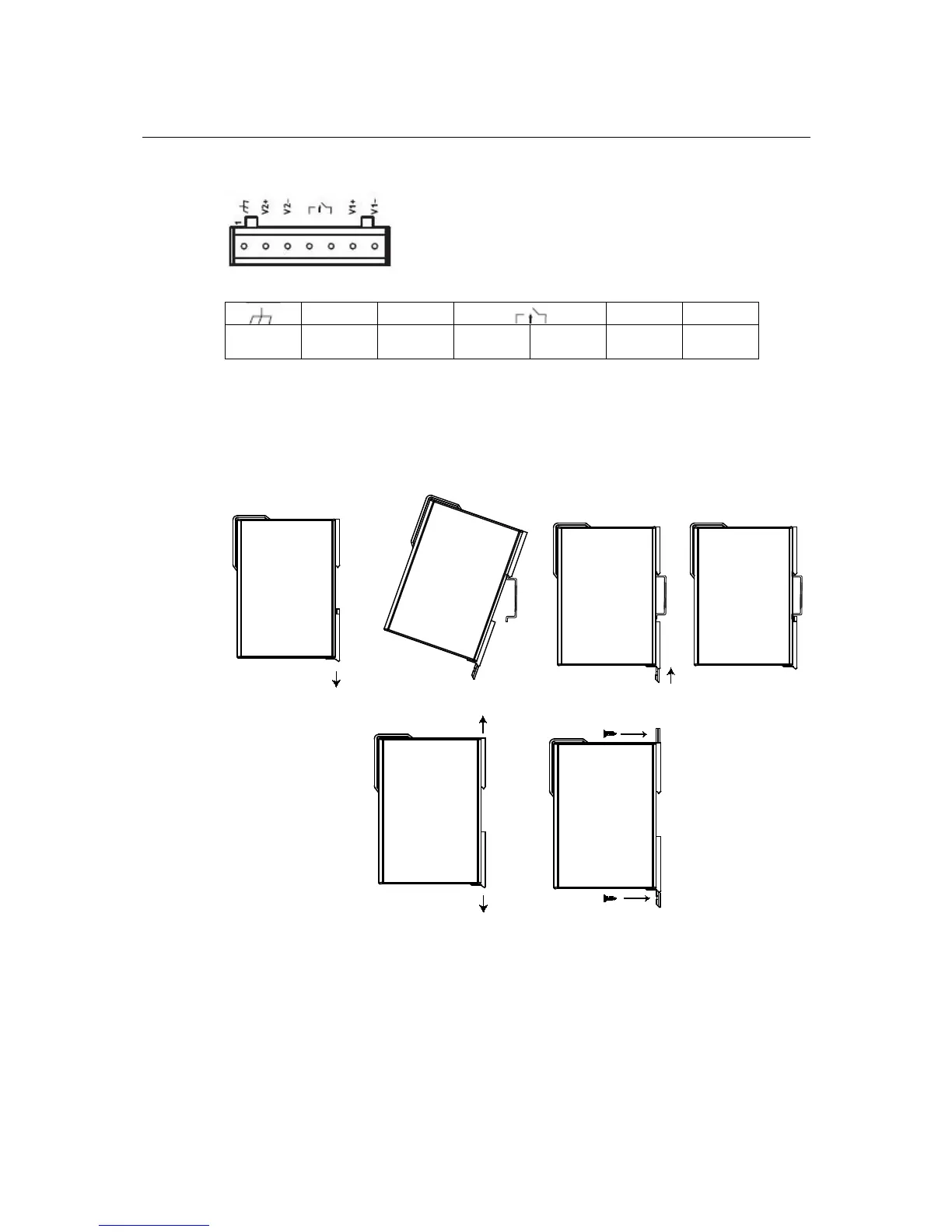

Power Input, Relay Output
V2+
V2-
V1+
V1-
Shielded
Ground
DC Power
Input 1
DC Power
Input 1
Relay
Output
Relay
Output
DC Power
Input 2
DC Power
Input 2
DIN-Rail, Wall Mounting
There are two sliders on the back of the unit for DIN-rail and wall mounting.
Mounting on a DIN-rail: Pull out the bottom slider, latch the unit onto the DIN-rail, and push the
slider back in.
Mounting on the wall: Pull out both the top and bottom sliders and align the screws accordingly.
