NPort 6000 Series Configuration with the Web Console

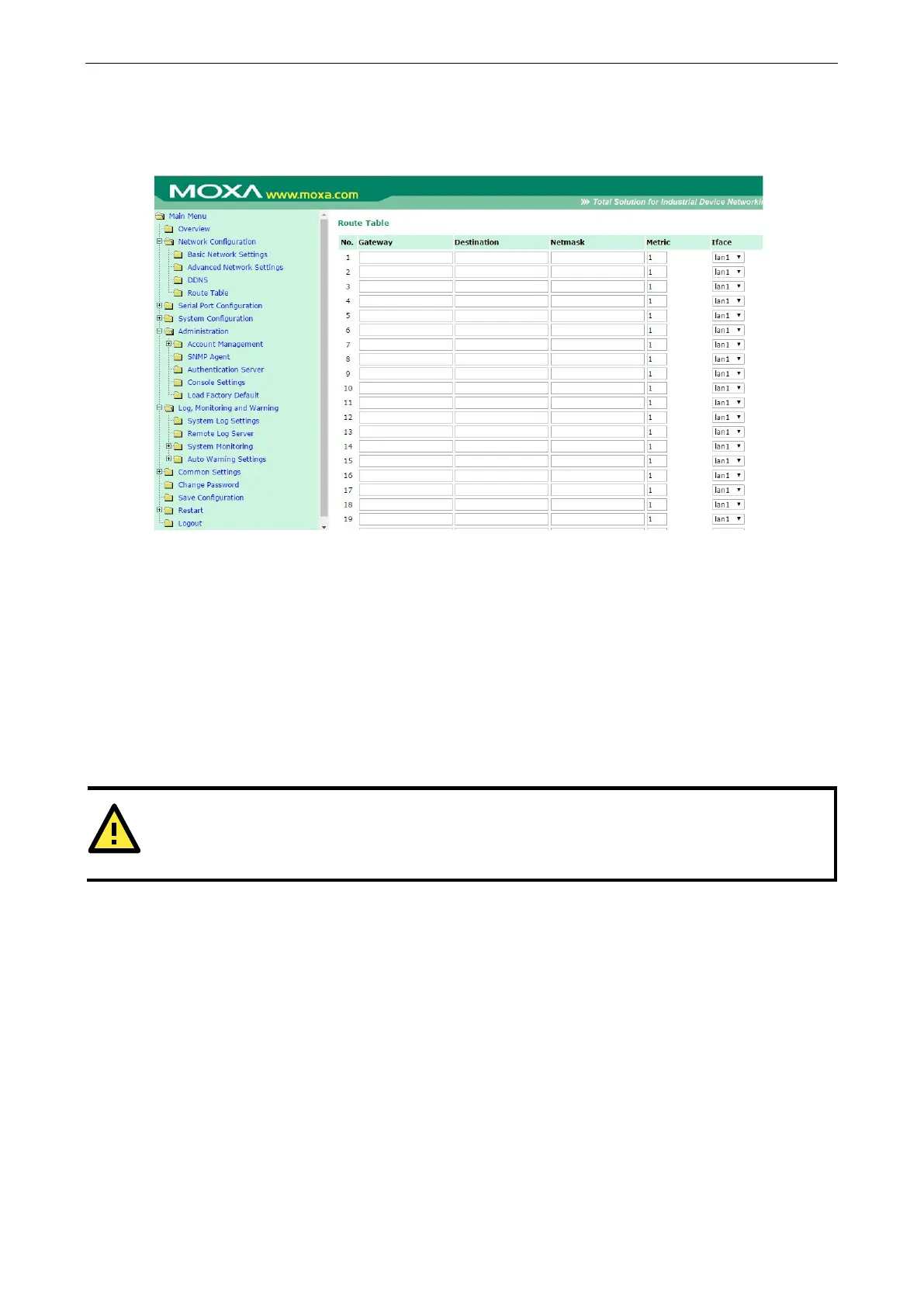

Configuring the Route Table
The route table is where you configure how the NPort 6000 will connect to an outside network.
You are allowed to have up to 32 entries in the route table. For each entry, you must provide information on the
gateway, destination, netmask, metric hops, and interface.
Gateway: This is the IP address of the next-hop router.
Destination: This is the host’s IP address or the network address of the route’s destination.
Netmask: This is the destination network’s netmask.
Metric: You may use this optional field to enter the number of hops from the source to the destination. This
allows the NPort 6000 to prioritize the routing of data packets if more than one router is available to reach a
given destination.
Iface: This is the network interface to which the packet must be sent.
ATTENTION
When a serial port is configured for PPP/SLIP, the
Iface field must be set to that serial port for proper
