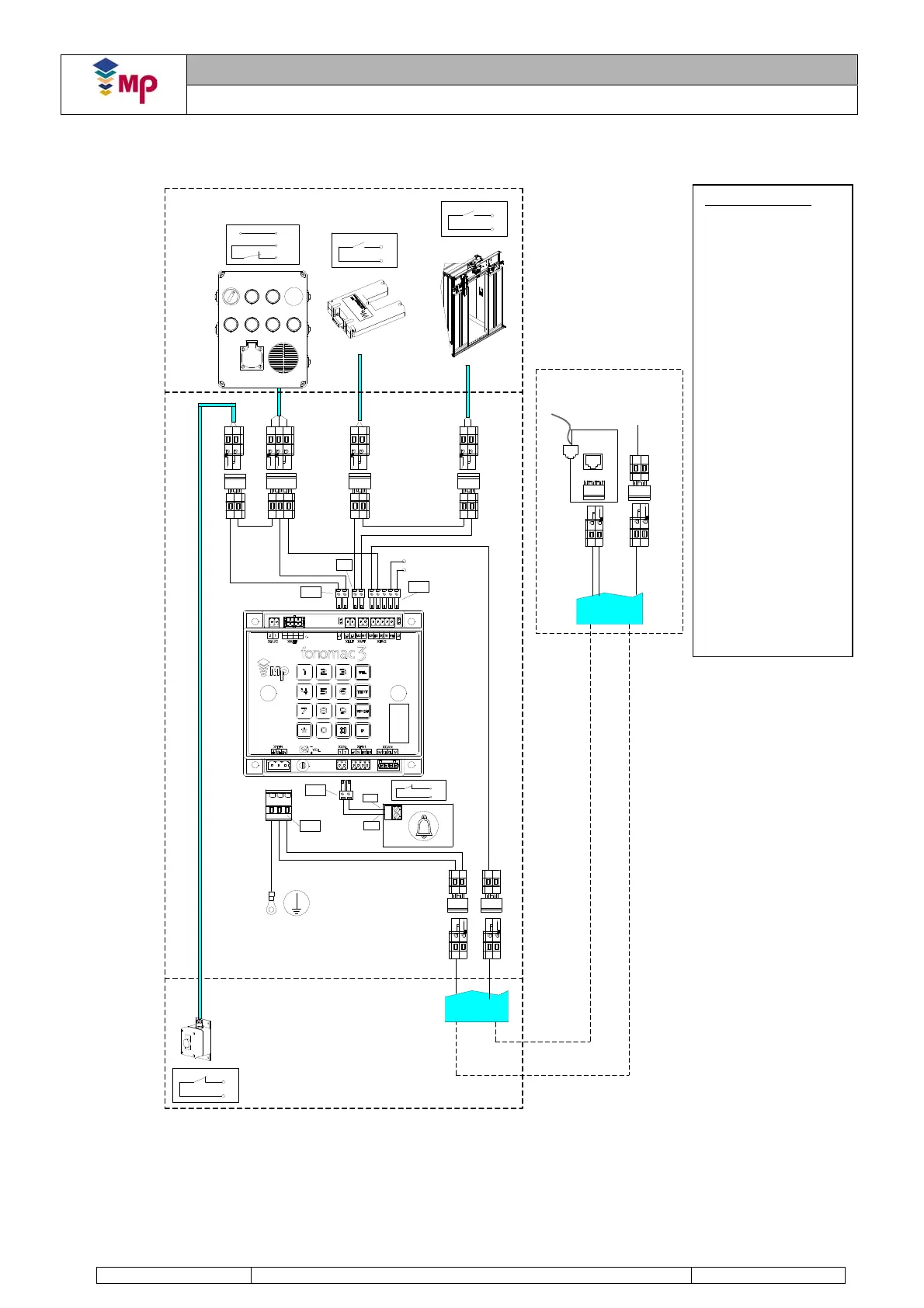

8.3. According to EN81-28 Standard with MicroBasic Controller
Key for contacts:
SARI: Inspection
box alarm
pushbutton (closed in
non-activated
position)
SARF: Car base
alarm pushbutton
(under floor) (closed
in non-activated
position)
SAL: Car keypad
alarm pushbutton
(closed in non-
activated position)
SARP: Door contact
only closed when
door is completely
open
SARN: Magnet
auxiliary contact,
closed with lift on
floor (single board
only)
RUN: Lift in motion
input signal
INS: Lift under
maintenance input
signal
COP
CAR BASE
CAR CEILING
CONTROL PANEL
L1
INS
L3
L1
INS
L3
L3L2
L3
L2
M1
M3
M1
M3
M3M2
M3
M2
0Vdc - CB
CBA_
TEL
SAL
TNX
RUN
RUN
24Vdc - CB
XARP
XARI
XARF
XARN
G - P2
(MBAS)
CCA_
CBA_
XTFN
XTFN
XTFN
XTFN
CCA_
SIB SIS STOPCSIR
SCI
SARI
L1
L3
SARI
M1
M3
SARP
L3
L2
SARF
INS
M3
M2
SARN
XPAL
XTFN
XLLT
XFN2
XMT
TEL
TNX
208-
CC2
RUN
RUN
