1.7.2. Audio Kit
The Audio Kit is an additional device including the audio elements and light indicators linked to the telephone.
Connecting the Audio kit to the telephone allows rerouting sound and indicators to locations outside the telephone
up to a maximum distance of 3 m (10 m for the specific case of double control station); this way, the telephone
can be fitted on the car ceiling and this set which is smaller and easily fitted can be assembled inside.
The Audio Kit consists of an additional circuit upon a plate which will be fixed at the back of the control station. In
addition, it includes an An information plate and its corresponding frame to be easily fitted on the front part (the
keypad) of the control station. This kit assembly requires control station panel machining.
Figure 7 below shows an image of the Audio Kit.
1.7.3. Link GSM/GPRS
Device allowing the connections of a Fonomac 3 telephone to a GSM/GPRS line.
Features:
Power supply: 230 Vac.
Incorporated battery to feed the emergency, with supervision and load control.
Complying with the EN81-28.
Terminal Quad Band 900MHz (2W) - 1800/1900MHz (1W) suitable for use all over the world.
Connection buses with CAN and RS232 devices to make the telemetering and the remote
maintenance.
Range and status indicators by means of LEDs.
We recommend installing the device on a high area of the building in order to guarantee a proper range
of the phone line.

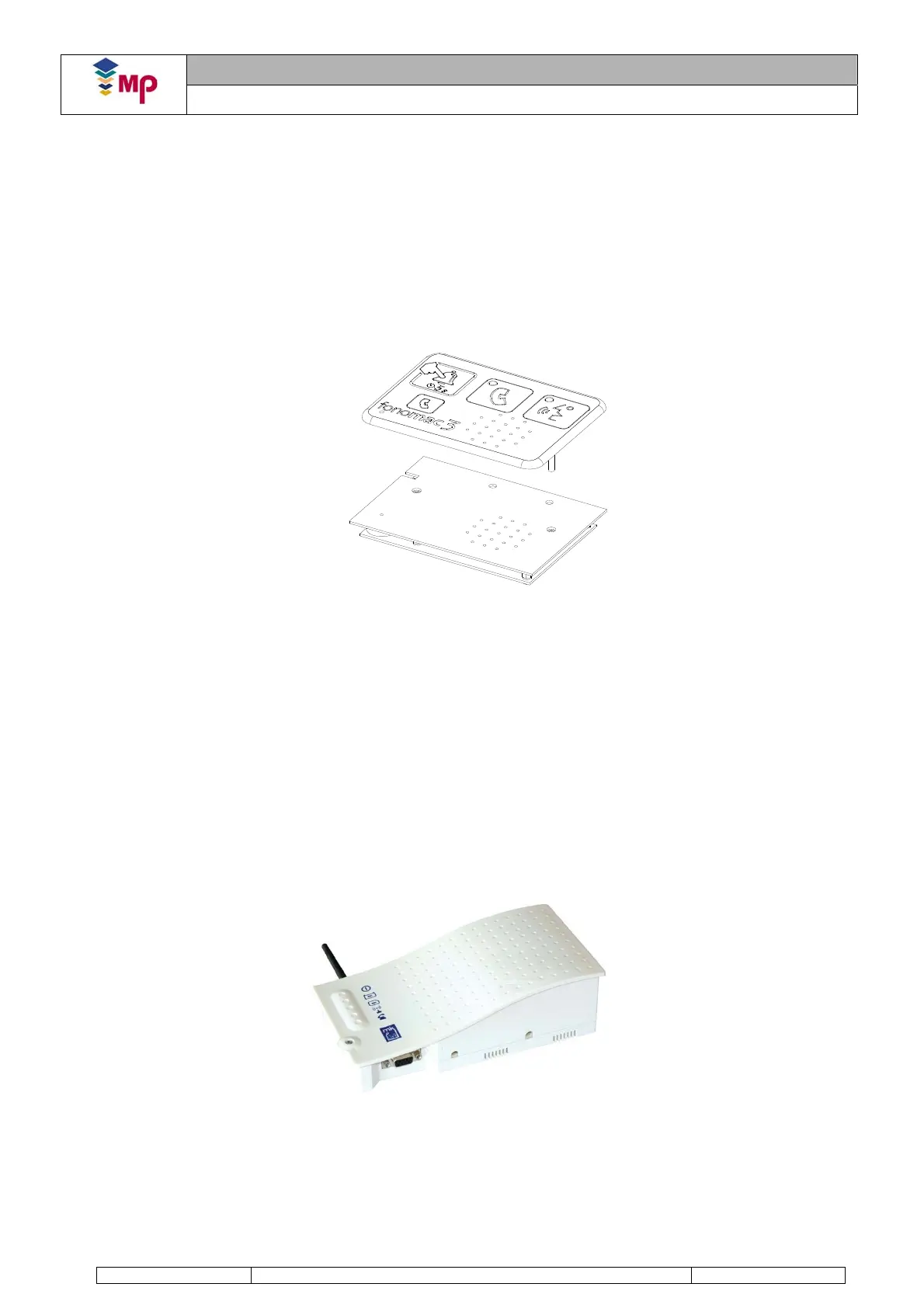

FIGURE 7. AUDIO KIT
FIGURE 8. GSM/GPRS
LINK
