MRMC TRIGGER BOX - Connecting the Cables

Trigger Box Quick Start Guide
2

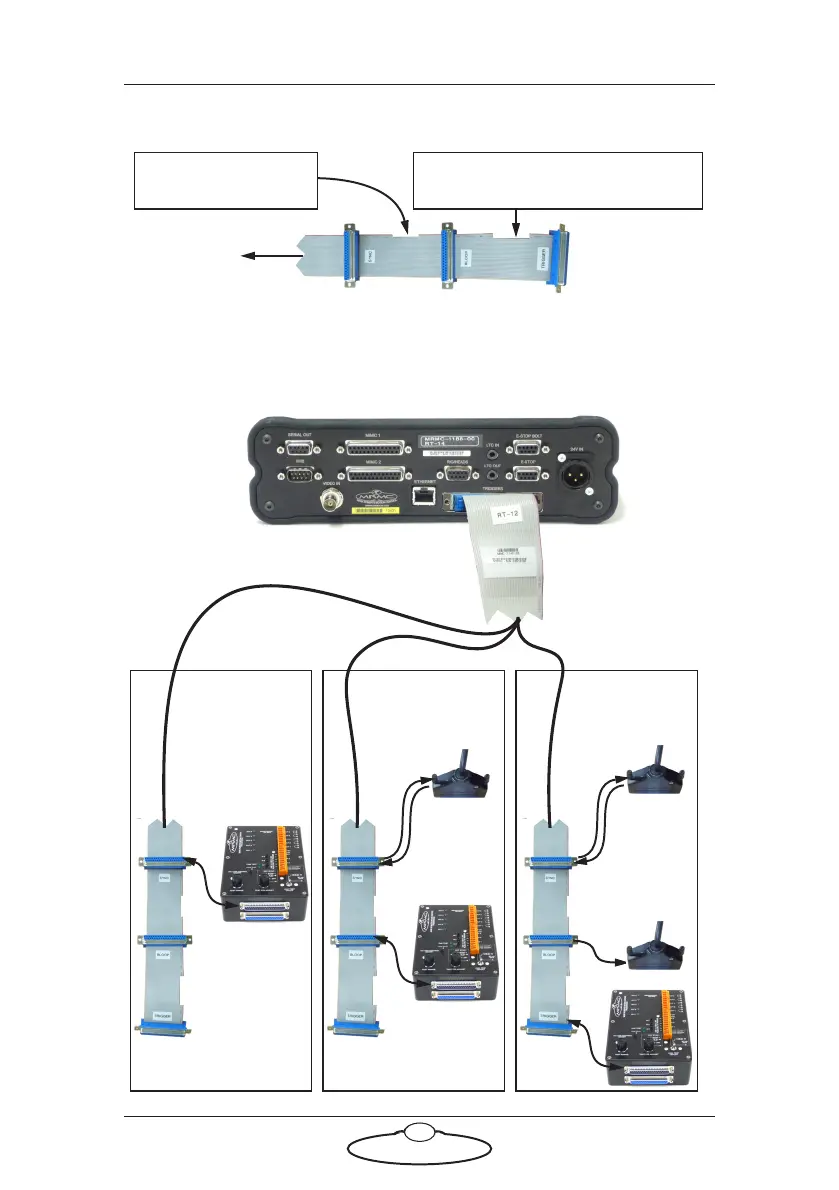

Connecting the cables
The ribbon cable supplied with the Trigger Box has specially cut wires
that give the SYNC, BLOOP, and TRIGGER connectors different
capabilities. This allows three possible connection configurations:
External Camera
Trigger Out wires cut
External Camera Trigger Out and
Trigger 1 Output (Bloop) wires cut
SYNC
BLOOP
TRIGGER
To the RT-14
RT-14 interface box
TRIGGERS
connector
To camera:
Trigger Out
and Sync In
To camera:
Trigger Out
and Sync In
Trigger 1
Output
to Bloop
light
SYNC
SYNC
SYNC
BLOOP not used
BLOOP
BLOOP
TRIGGER not used
TRIGGER not used
TRIGGER
ABC
