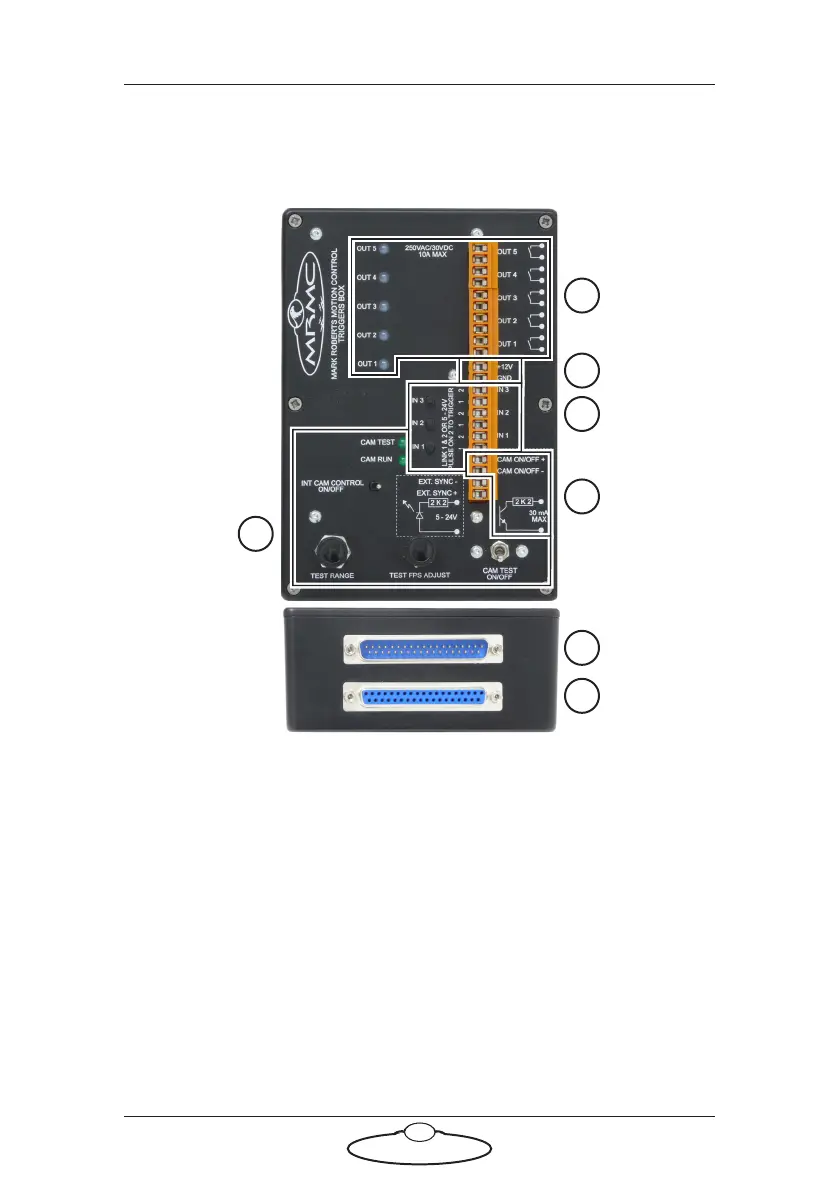

Appendix 2 Trigger Box panels
Panel and connector summary
1. Five trigger outputs, numbered OUT 1 to OUT 5, and their
corresponding LED indicators. For details of usage see Using the
trigger outputs on page 5.
2. +12V and GND DC power output connectors, for powering external
devices.
3. Three trigger inputs, numbered IN 1 to IN 3, and their
corresponding testing buttons, for triggering events in Flair software
such as starting a pre-recorded move. For details of usage see Using
the trigger inputs on page 7.
1
3
5
4
6
2
7
