10177245 Rev. 2 / OM-243792 Page 16

SECTION 4 − HARD HAT HEAD ASSEMBLY

4-1. Attaching Welding Helmet To Hard Hat (Slotted Adapter)

! To ensure compliance

with hard hat safety

standard Z89.1, use on-

ly MSA hard hats with

this welding helmet.

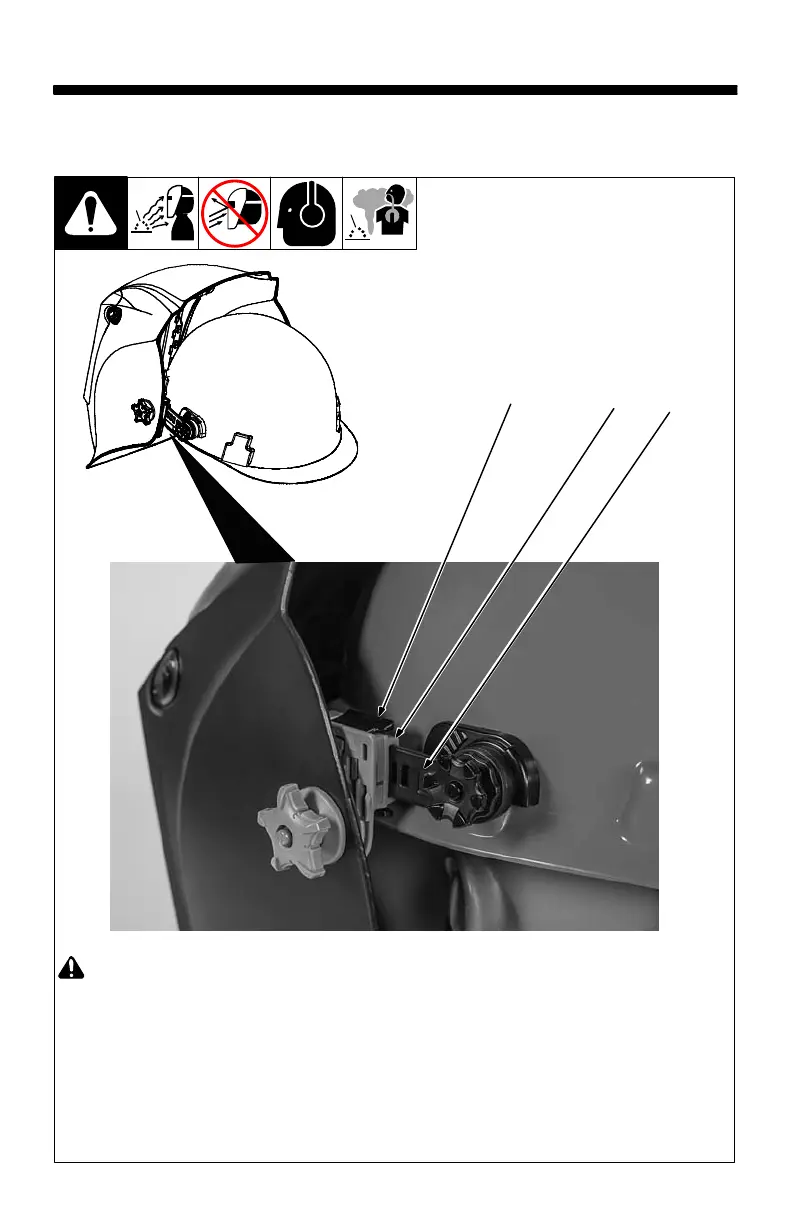

1 Hardhat Adapter Tabs

2 Helmet Receiver

3 Distance Adjustment

Levers

To install hard hat adapters,

first lay welding helmet face

down to ensure proper place-

ment of left and right brackets.

Disassemble the left and right

hardware assemblies one at a

time. Reinstall according to

diagram.

Align hardhat tabs with re-

ceivers on welding helmet.

Slide tabs forward into receiv-

ers until tabs click into desired

positions.

To remove hardhat, press

both distance adjustment

levers and pull welding helmet

away from hardhat.
