4-2. Adjusting Hard Hat Slotted Adapter
! To ensure compliance
with hard hat safety
standard Z89.1, use on-
ly MSA hard hats with
this welding helmet.
î There are two hardhat
adjustments: angle ad-
justment and distance
adjustment.

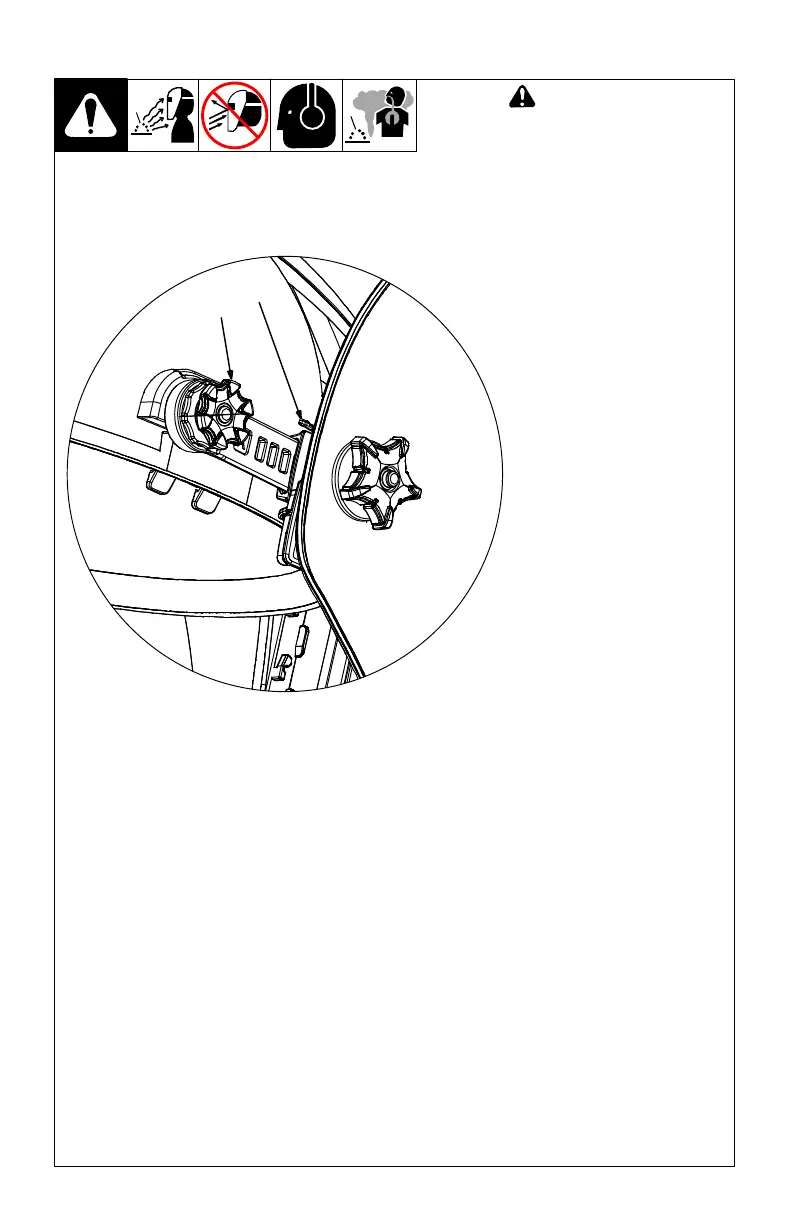

1 Distance Adjustment
Levers
This adjustment changes the
distance between the face
and the lens. To adjust, press
both distance levers and hel-
met forward or back to
desired position. Release
levers. (Both sides must be
equally positioned for proper
vision.)
2 Angle Adjustment
Seven slots on the right side
of the headband provide ad-
justment for the forward tilt of
the helmet. To adjust, lift and
reposition the control arm to
the desired position.
2
1
