10177245 Rev. 2 / OM-243792 Page 21

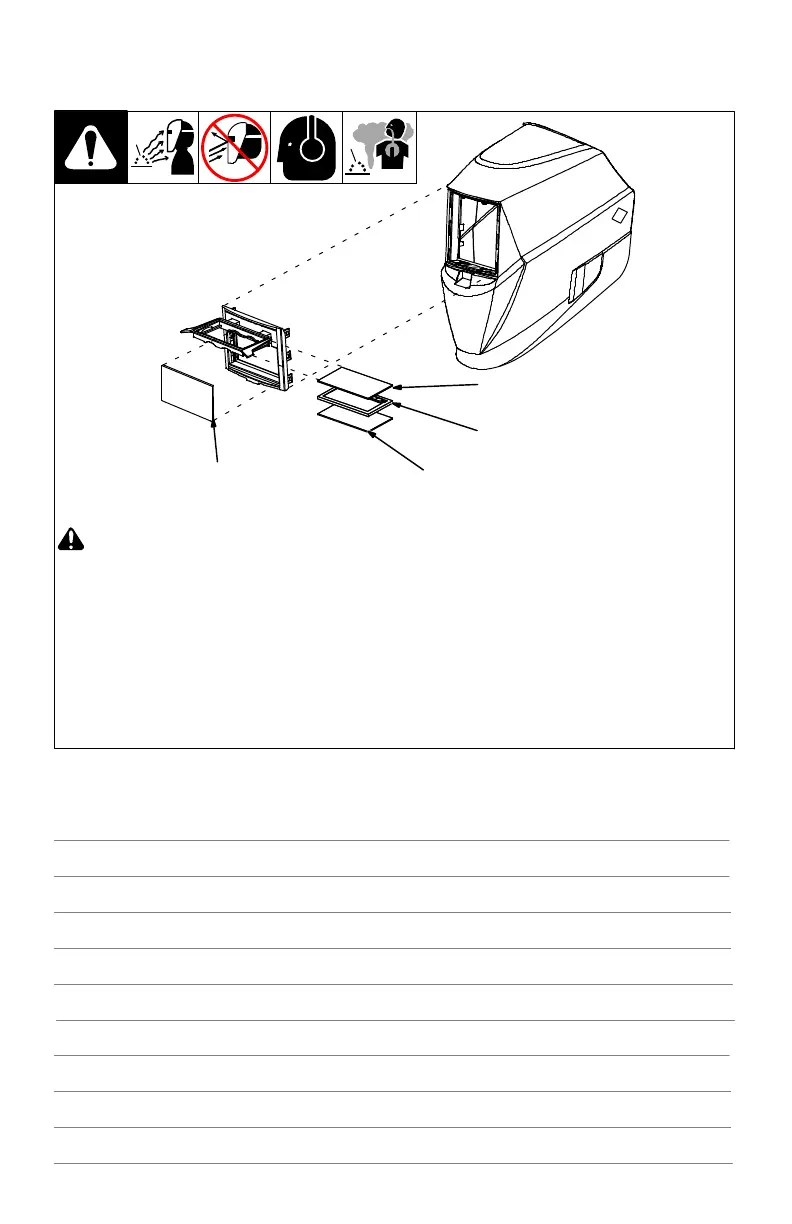

5-2. Replacing Lens Covers And Grinding Shield On Fixed Shade Flip-Up

Helmets

! Never use the auto-

darkening lens with-

out the inside and

outside lens covers

properly installed.

Welding spatter will

damage the auto-

darkening lens and

void the warranty.

1 Outside Lens Cover

2 Lens

3 Inside Lens Cover

Lift flip-up frame and slide

lens and covers out of the

open side of the frame. Re-

place lens covers. Slide

lens and covers back into

frame.

4 Grinding Shield

Remove grinding shield

from front of helmet by

pushing shield from the in-

side. Reinstall shield by

placing one edge of shield

in track. Using both hands,

bend shield outward until

the loose end of the shield

can be installed in the open

track.
