• To add an active profile to support a device, click the Add button under the Active Profiles heading. This will present a
drop-down menu underneath the Current profile column.
• Once the Profile for the device has been selected from the drop-down list, enter the value of the device’s Node-ID
which was assigned in Section 2.3.1 Set Node-ID for Any Device Attached to the ProtoNode.
• If the device is connected via Modbus TCP/IP, enter the “ip_address” and “tcp_id” under the Parameters heading.
These are gathered from settings on the device and correspond to the device IP Address and TCP_ID. (Section 2.3.2
Set IP Address for Any Ethernet Device Connected to the ProtoNode)
• Then press the “Submit” button to add the Profile to the list of devices to be configured.
• Repeat this process until all the devices have been added.

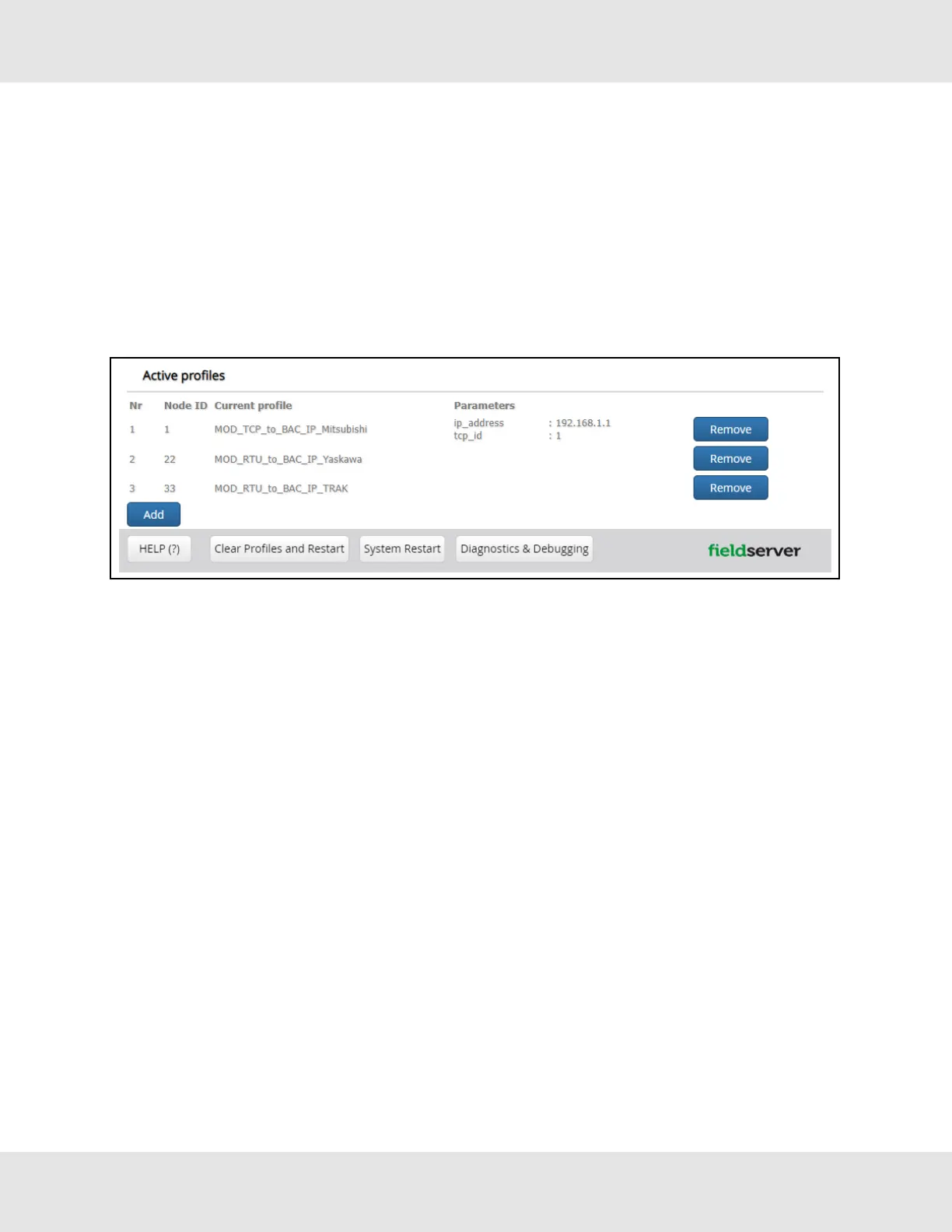

• Completed additions are listed under “Active profiles” as shown below.
9.4 Verify Device Communications
• If using a serial connection, check that TX and RX LEDs are rapidly flashing. See Section 10.4 LED Functions for
information and images.
• Confirm the software shows good communications without errors (Section 10.2 Viewing Diagnostic Information).
33 Hunter Fans ProtoNode FPC-N64
