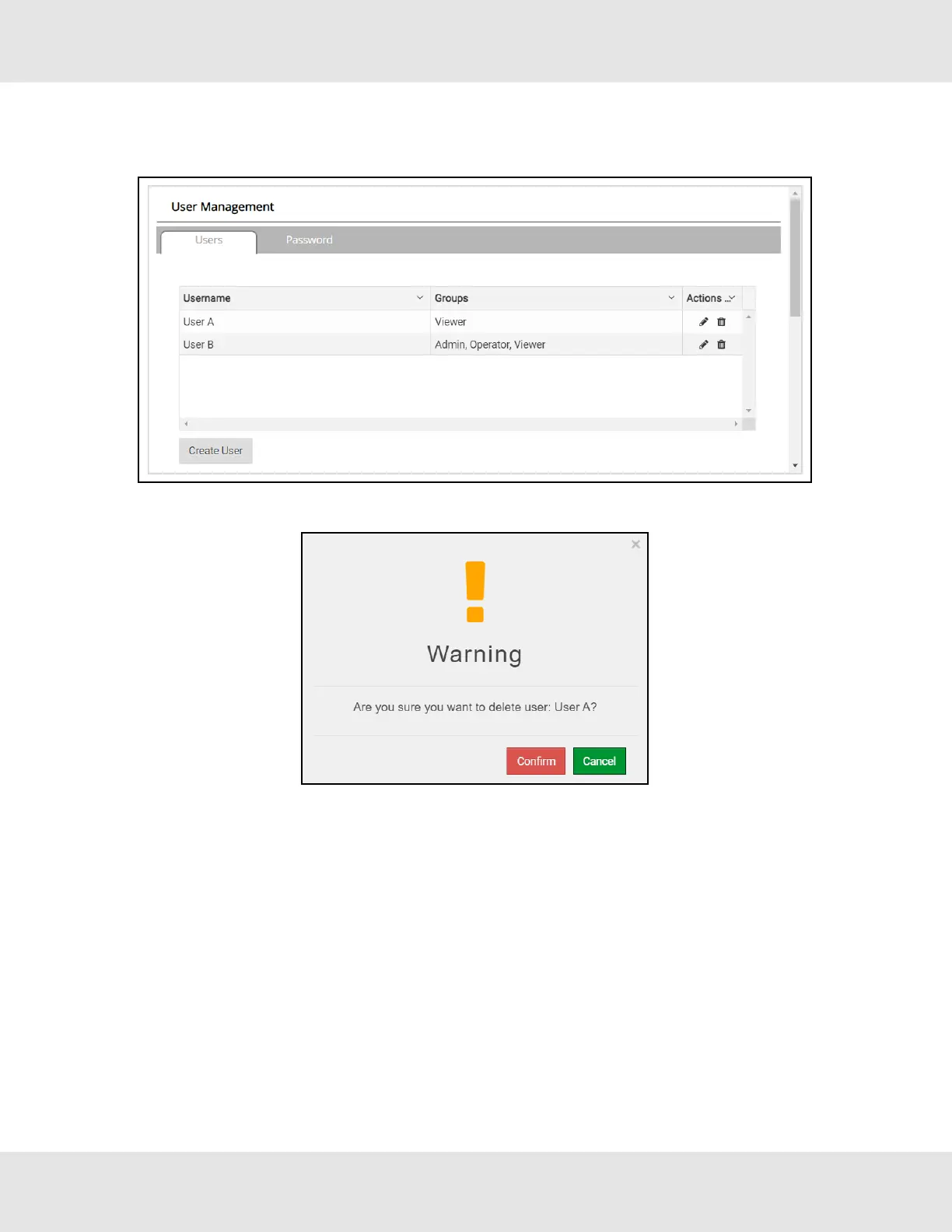

11.7.3Delete Users

• Click the trash can icon next to the desired user to delete the entry.

• When the warning message appears, click Confirm.

51 Hunter Fans ProtoNode FPC-N64
